Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Mitsubishi >> 36 Fuel Pump Circuit

36 Fuel Pump Circuit

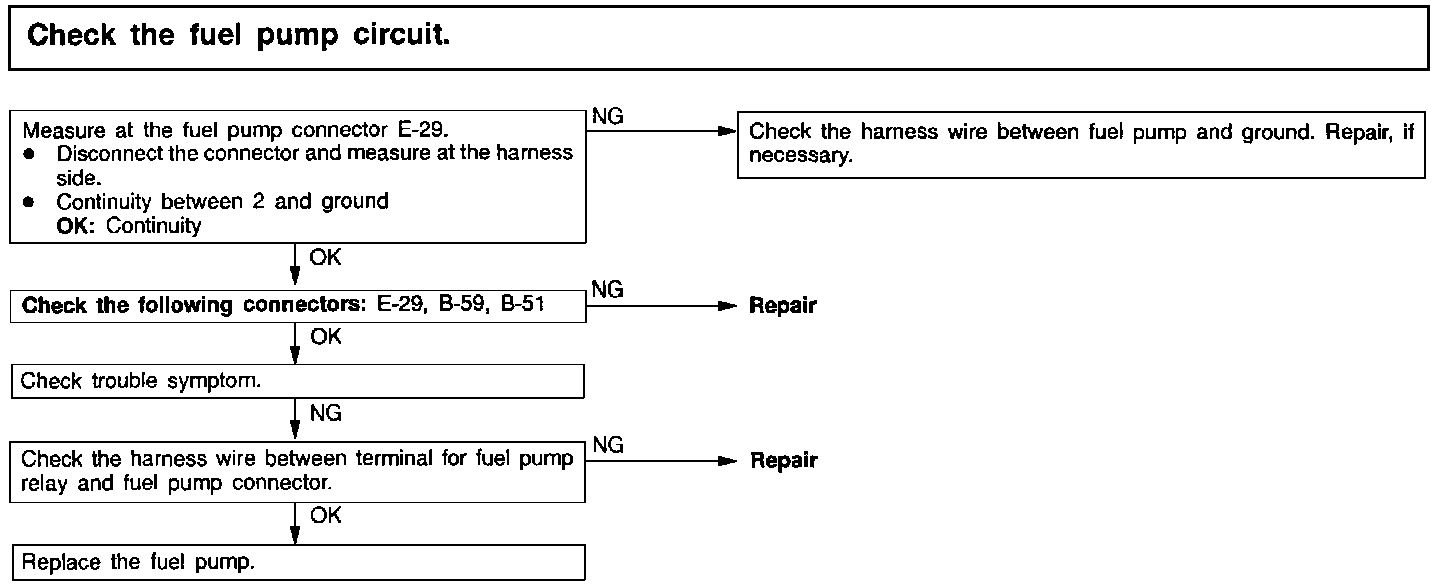

Inspection Procedure 36:






Check fuel pump circuit.
