22 Too High CO and HC Concentration When Idling
22 Too High CO and HC Concentration When Idling

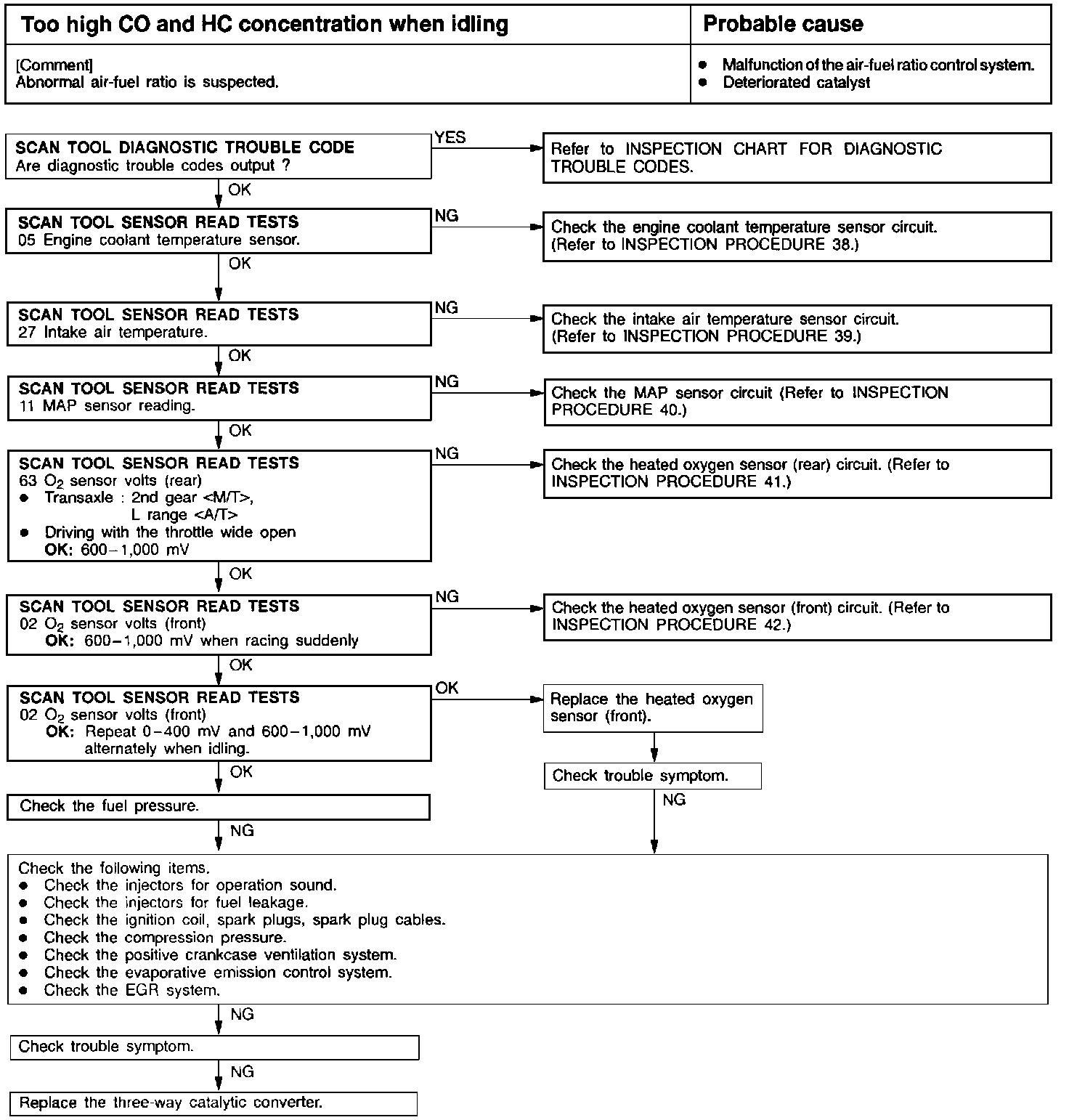

Inspection Procedure 22:
Too high CO and HC concentration when idling
-
Abnormal air-fuel ratio is suspected.
Probable Cause
-
Malfunction of the air-fuel ratio control system.
-
Deteriorated
catalyst
