12 Engine Is Hot, It Stalls at Idle. (Die Out)

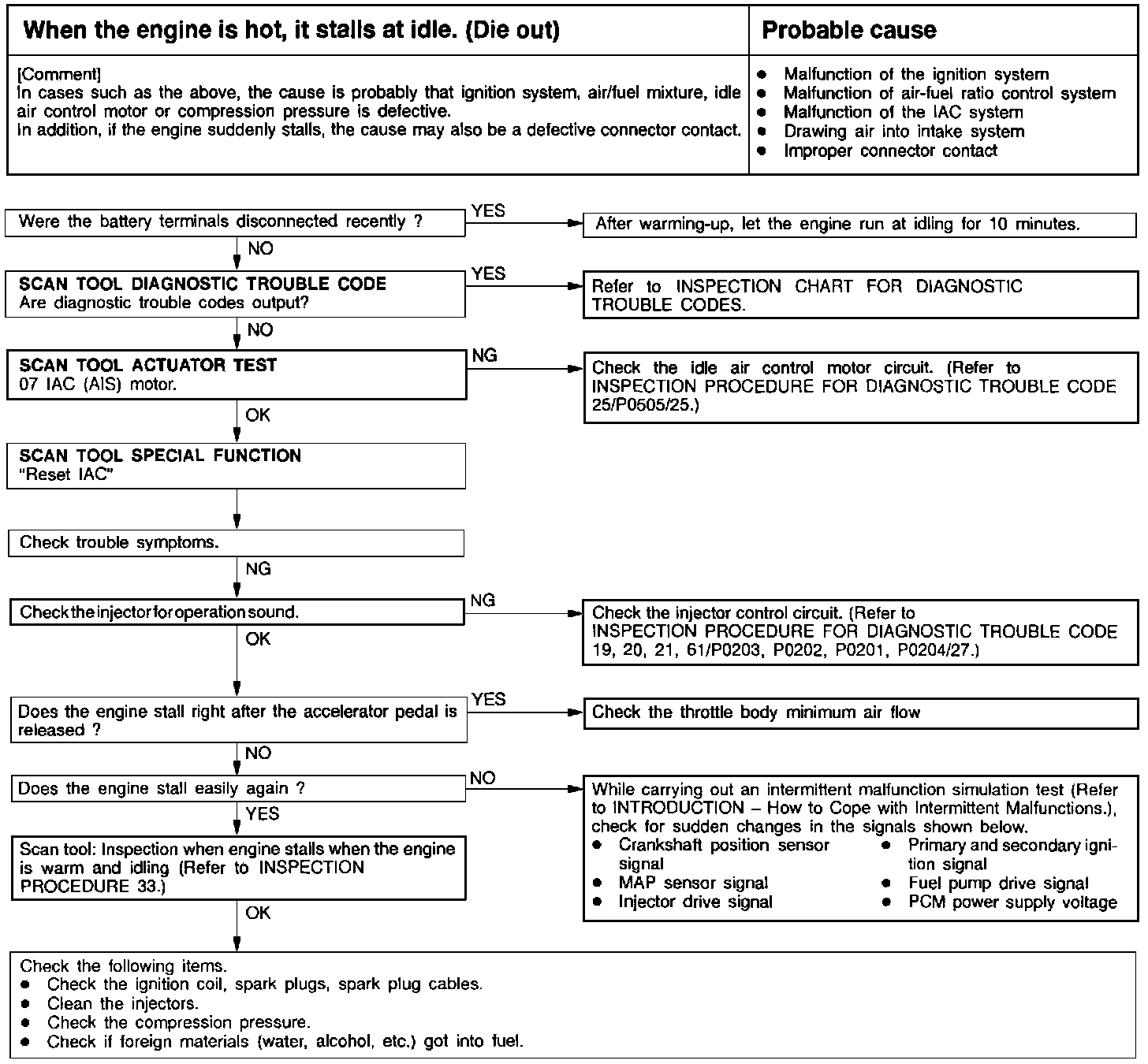

Inspection Procedure 12:

When the engine is hot, it stalls at idle. (Die out)
- In cases such as the above, the cause is probably that ignition system, air/fuel mixture, idle air control motor or compression pressure is defective.
- In addition, if the engine suddenly stalls, the cause may also be a defective connector contact.

Probable Cause
- Malfunction of the ignition system
- Malfunction of air-fuel ratio control system
- Malfunction of the IAC system
- Drawing air into intake system
- Improper connector contact
