10 Idle Speed Is Low (Improper Idle Speed)

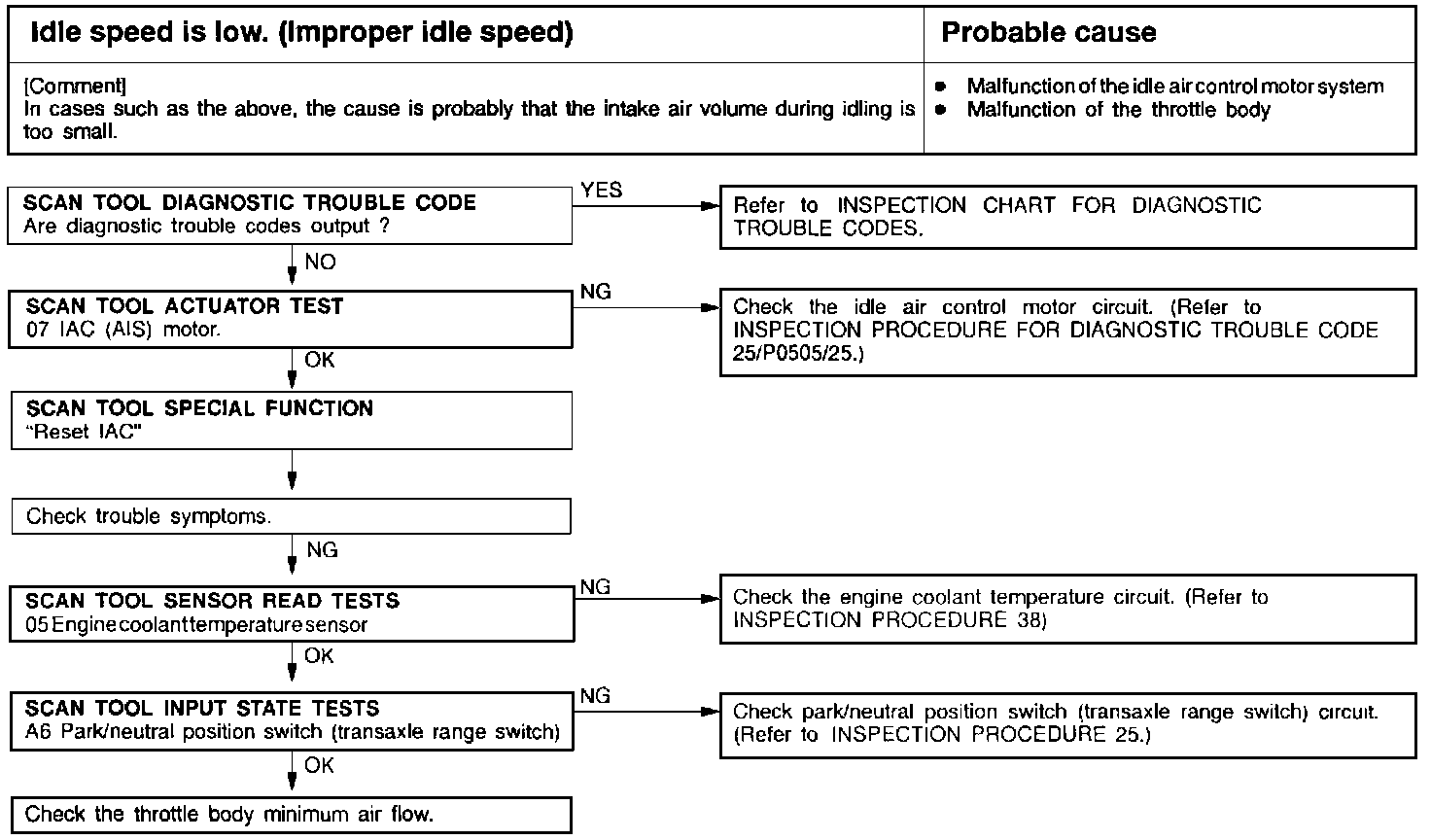

Inspection Procedure 10:

Idle speed is low (Improper idle speed)
- In cases such as the above, the cause is probably that the intake air volume during idling is too small.

Probable Cause
- Malfunction of the idle air control motor system
- Malfunction of the throttle body
