1 Communication With Scan Tool Is Not Possible (All Systems)

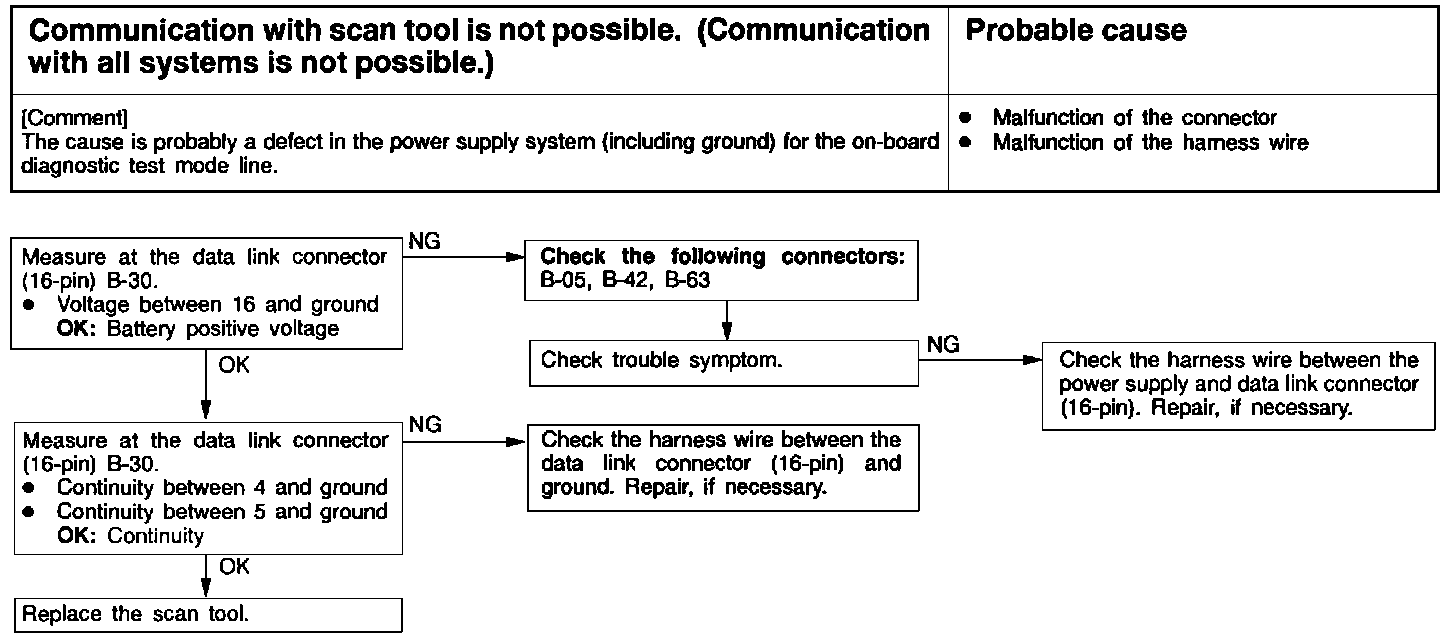

Inspection Procedure 1:

Communication with scan tool is not possible. (Communication with all systems is not possible.)
- The cause is probably a defect in the power supply system (including ground) for the on-board diagnostic test mode line.

Probable Cause
- Malfunction of the connector
- Malfunction of the harness wire
