Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

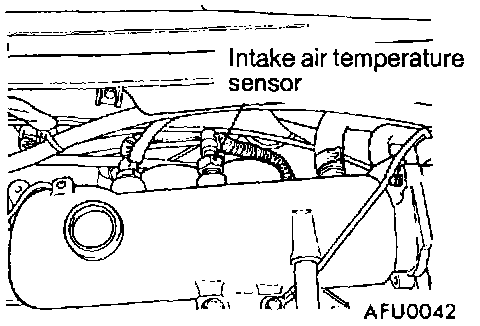

Intake Air Temperature Sensor:

1. Disconnect the intake air temperature sensor connector.
2. Measure the resistance between the sensor terminals.
Standard value:
- 9k - 11k ohms [at 25°C (77°F)]
- 0.6k - 0.8k ohms [at 100°C (212°F)]
3. Apply sealant to threaded portion.
- Specified sealant: Loctite 24200 or equivalent
4. Install intake air temperature sensor and tighten it to specified torque.
- Sensor tightening torque: 7 Nm (5 ft lb)
5. Fasten harness connectors securely.
