Off Vehicle Test

END PLAY CHECK

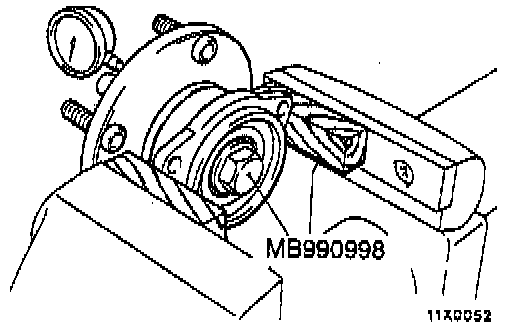

1. Install the special tool to the front hub assembly, and then tighten it to 196 - 255 Nm (145 - 188 ft.lbs.).
2. Measure the play in the hub axial direction. The wear limit is 0.05 mm (0.002 inch).
3. If the play exceeds the limit, replace the front hub assembly.
