Front

REMOVAL

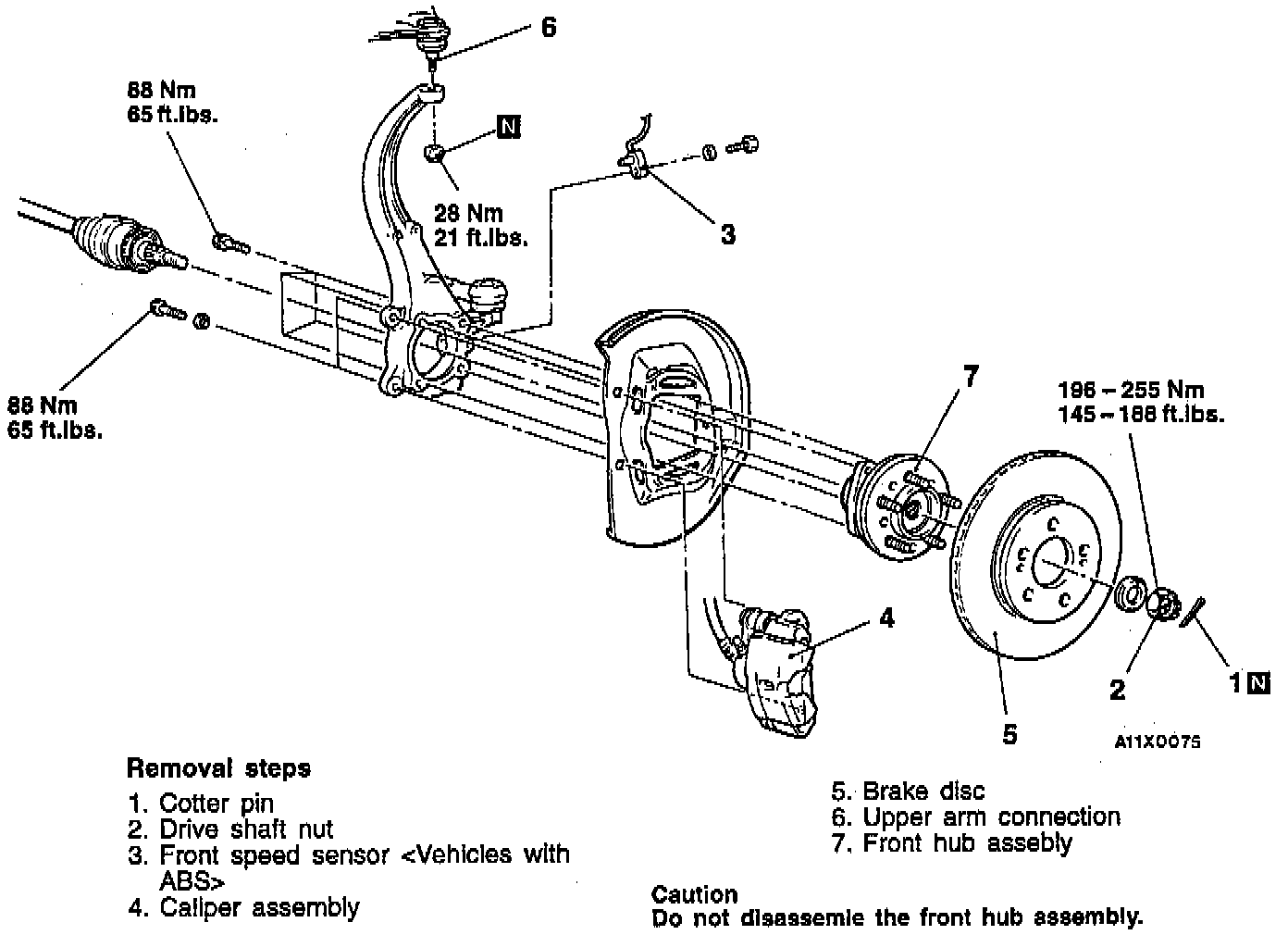

Follow the removal steps outlined in the illustration, noting the following.





1. Secure the removed caliper assembly with wire so that it does not fall.





CAUTION:

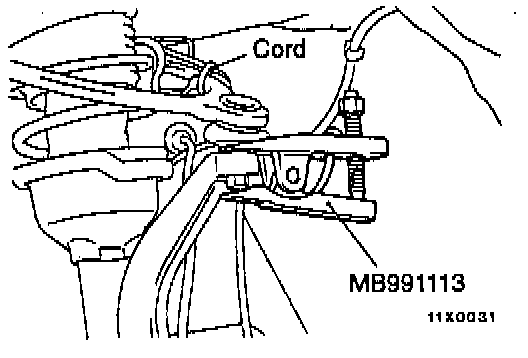

- Be sure to tie the cord of the special tool to a nearby part.
- Loosen the nut but don't remove it.

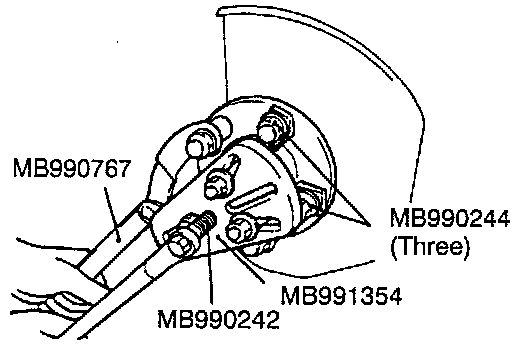

2. Use the special tools to push out the drive shafts from the hub.

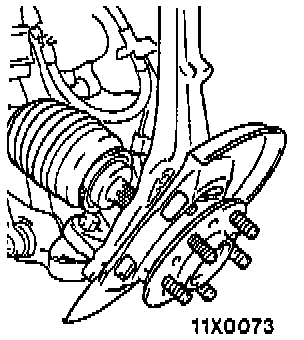

3. Shift the knuckle to the outside in order to maintain the clearance between the front hub assembly mounting bolts and the drive shaft.

CAUTION:
- Do not damage the ball joint.
- For vehicles with ABS, be careful not to damage the rotor.

INSTALLATION
Install in reverse order of installation, noting the following.

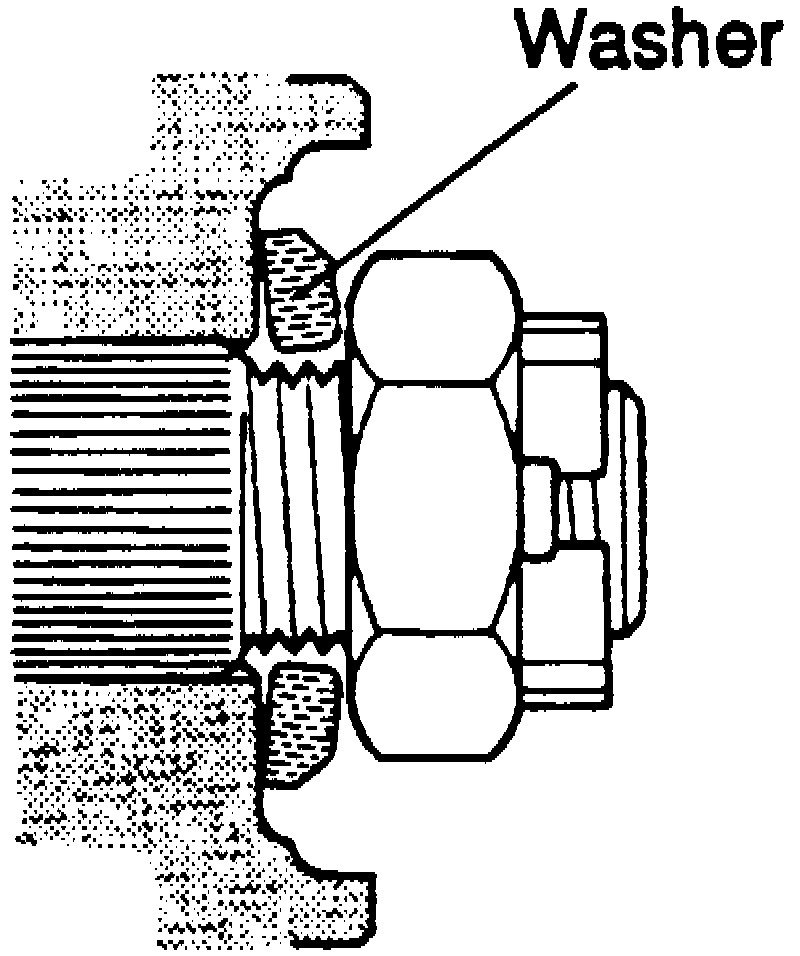

Fig. 7 Driveshaft Washer Installation:

1. Be sure to install the drive shaft washer as shown.

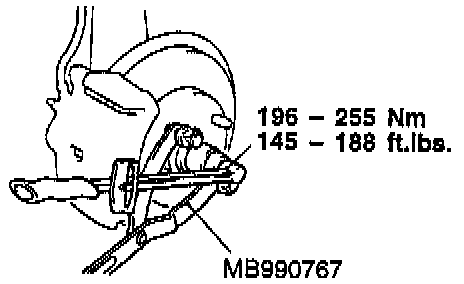

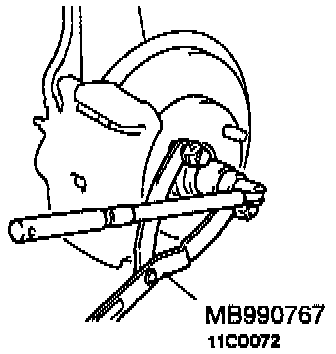

2. Use the special tool to tighten the drive shaft nut.

CAUTION: Before securely tightening the drive shaft nuts, make sure there is no load on the wheel bearings.

3. If the position of the cotter pin holes does not match, tighten the nut up to 255 Nm (188 ft. lbs.) maximum.
4. Install the cotter pin in the first matching holes and bend it securely.
