Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Inspection >> Column Switch Continuity Check

Column Switch Continuity Check

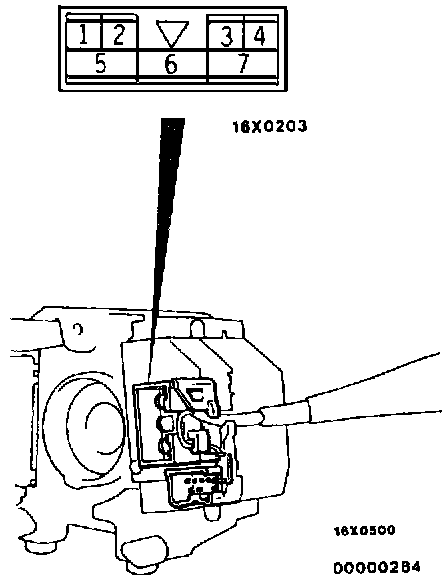

Column Switch Continuity Check:

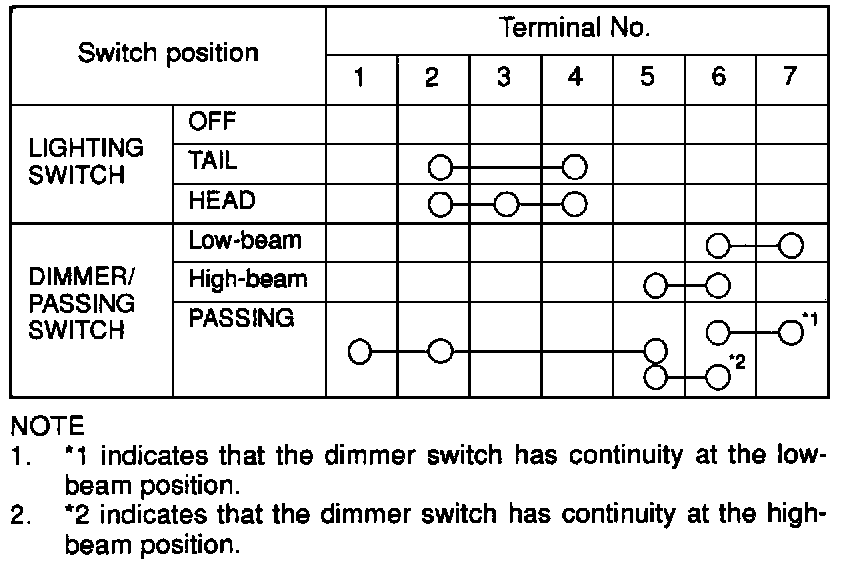

Column Switch Continuity Check Table:
