Sebring L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

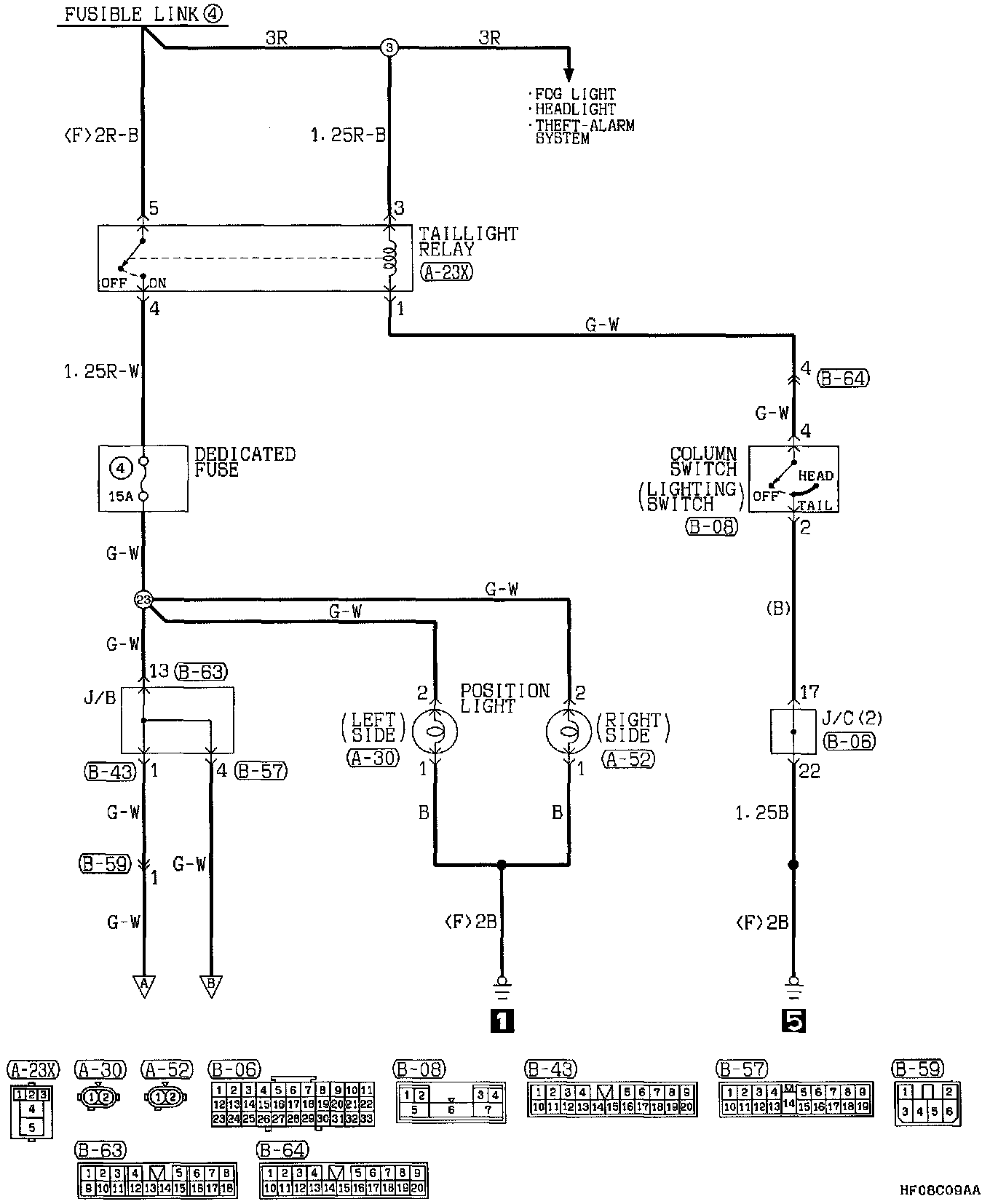

Tail, Position And License Plate Light Circuit (Part 1 Of 2):

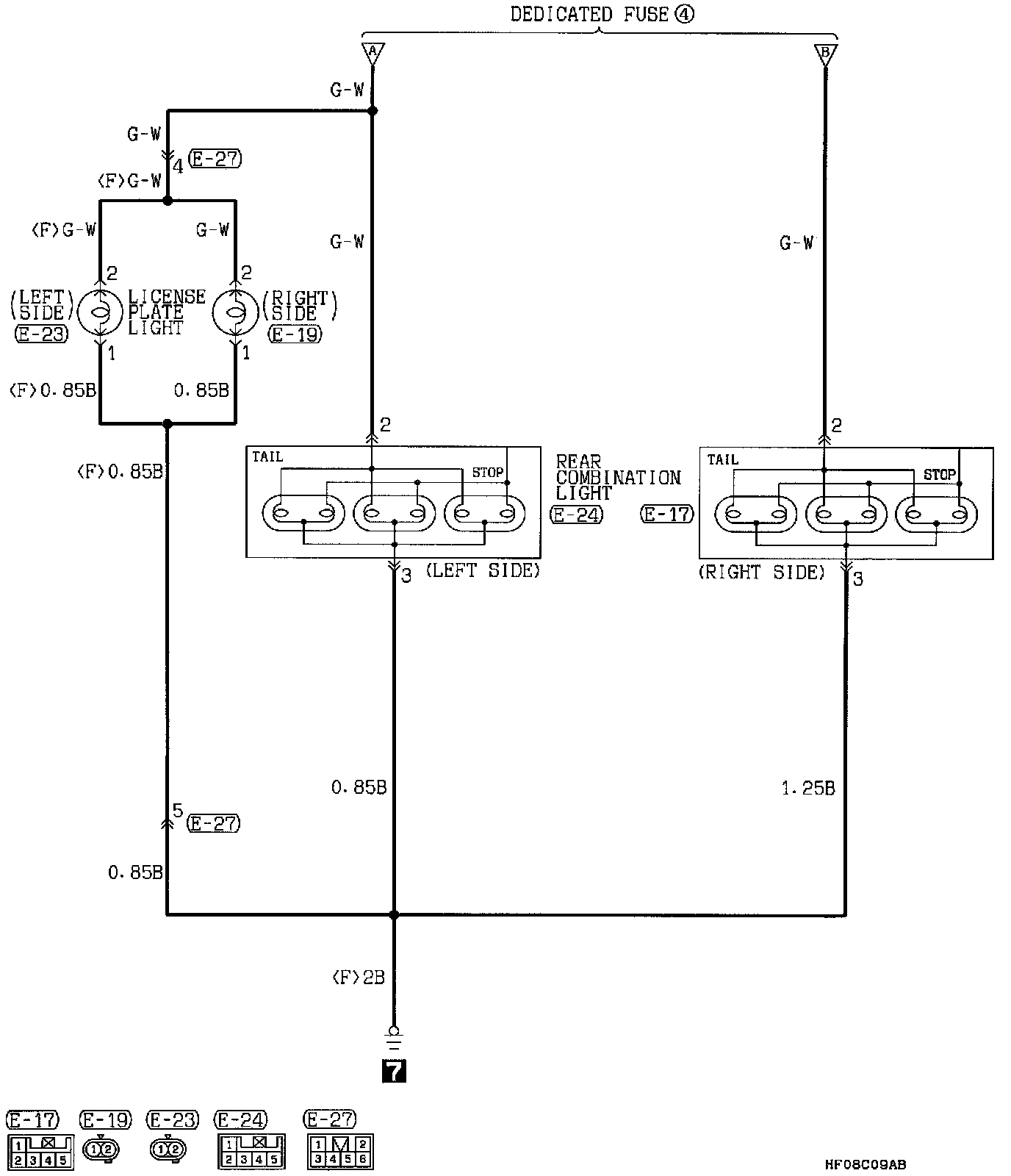

Tail, Position And License Plate Light Circuit (Part 2 Of 2):
