Removal and Installation Steps
>>
Rheostat
Rheostat

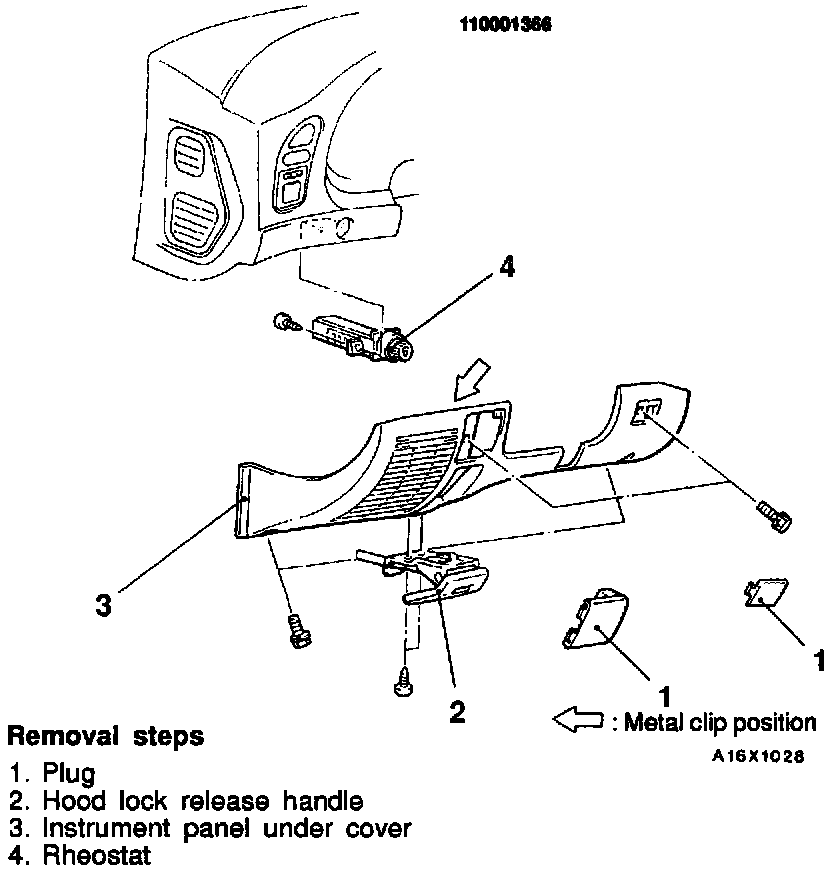

Rheostat - Removal And Installation:
REMOVE
1.
Plug
2.
Hood lock release handle
3.
Instrument panel under cover
4.
Rheostat
INSTALL
1.
Rheostat
2.
Instrument panel under cover
3.
Hood lock release handle
4.
Plug
