Headlamp: Service and Repair

Headlight, Front Position Light Assembly

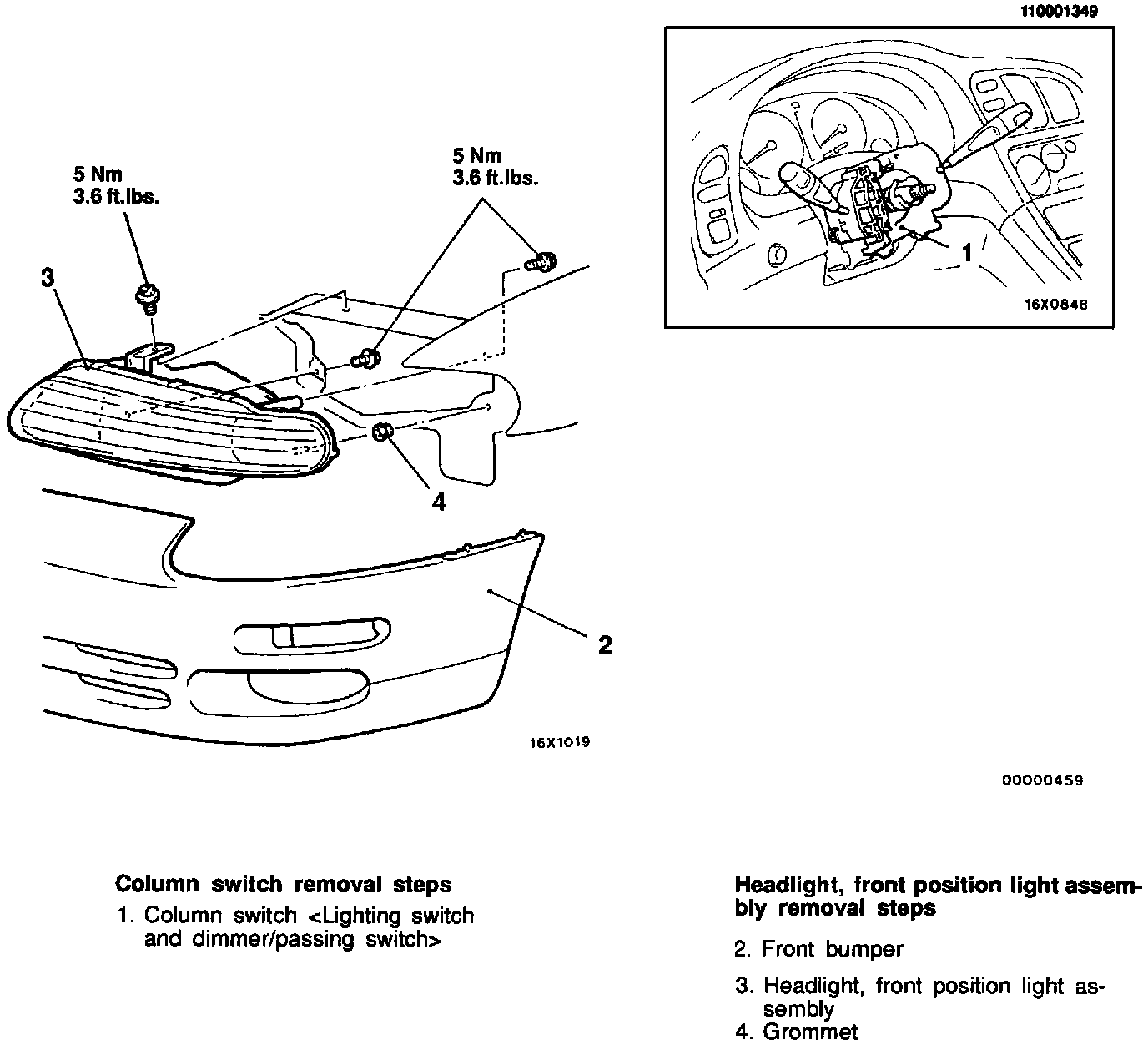

Headlight, Front Position Light Assembly - Removal And Installation:

REMOVE
Column Switch
1. Column switch (Lighting switch and dimmer/passing switch)

Headlight, Front Position Light Assembly
2. Front bumper
3. Headlight, front position light assembly
4. Grommet

INSTALL
Column Switch
1. Column switch (Lighting switch and dimmer/passing switch)

Headlight, Front Position Light Assembly
2. Grommet
3. Headlight, front position light assembly
4. Front bumper
