Fog Lamp

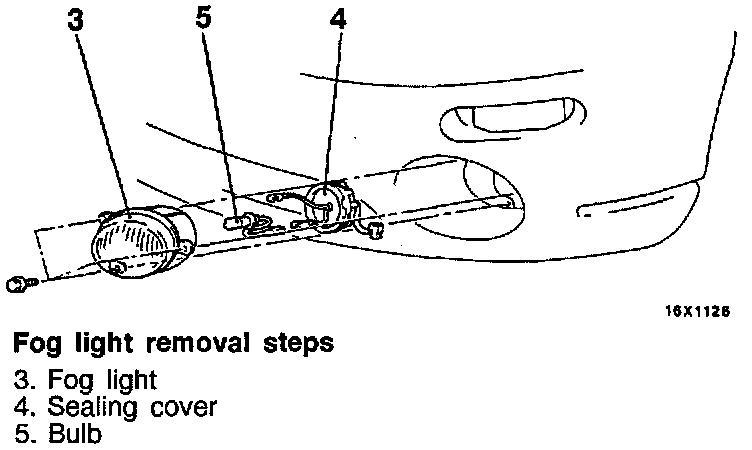

Fog Light - Removal And Installation:





REMOVE
3. Fog light
4. Sealing cover
5. Bulb

INSTALL
3. Bulb
4. Sealing cover
5. Fog light
