Cigarette Lighter: Service and Repair

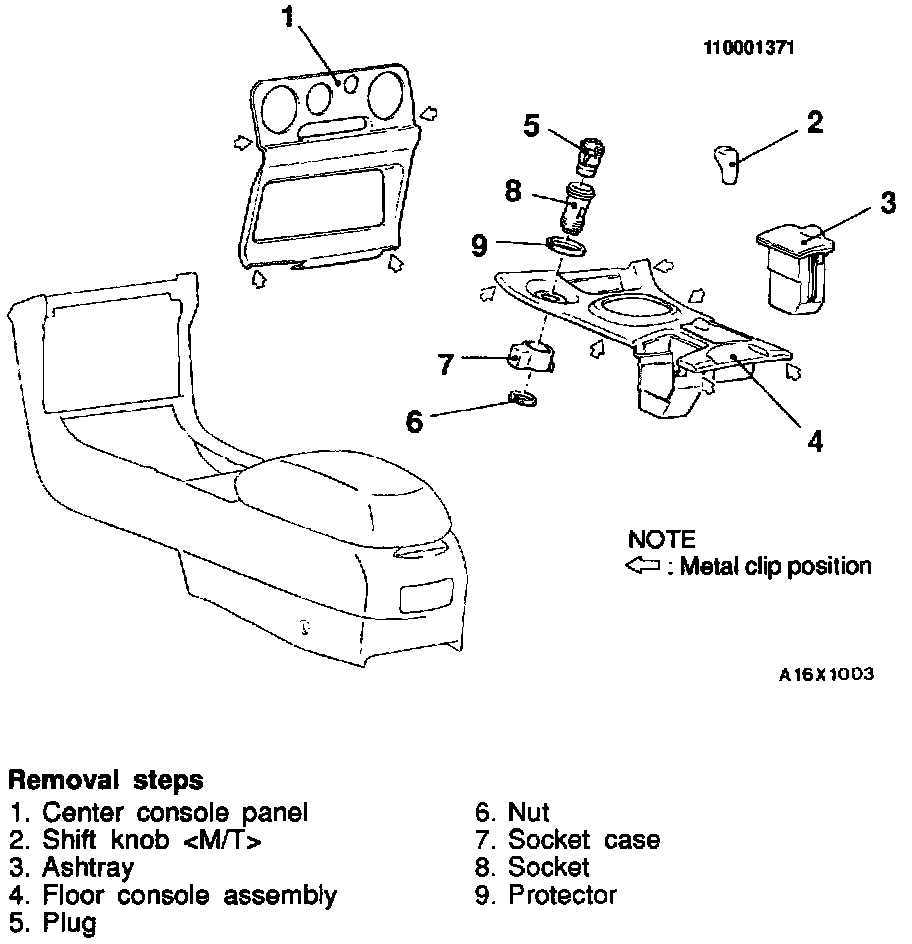

Cigarette Lighter - Removal And Installation:
REMOVE
1. Center console panel
2. Shift knob
3. Ashtray
4. Floor console assembly
5. Plug
6. Nut
7. Socket case
8. Socket
9. Protector
INSTALL
1. Protector
2. Socket
3. Socket case
4. Nut
5. Plug
6. Floor console assembly
7. Ashtray
8. Shift knob
9. Center console panel
