Pinout Values and Diagnostic Parameters

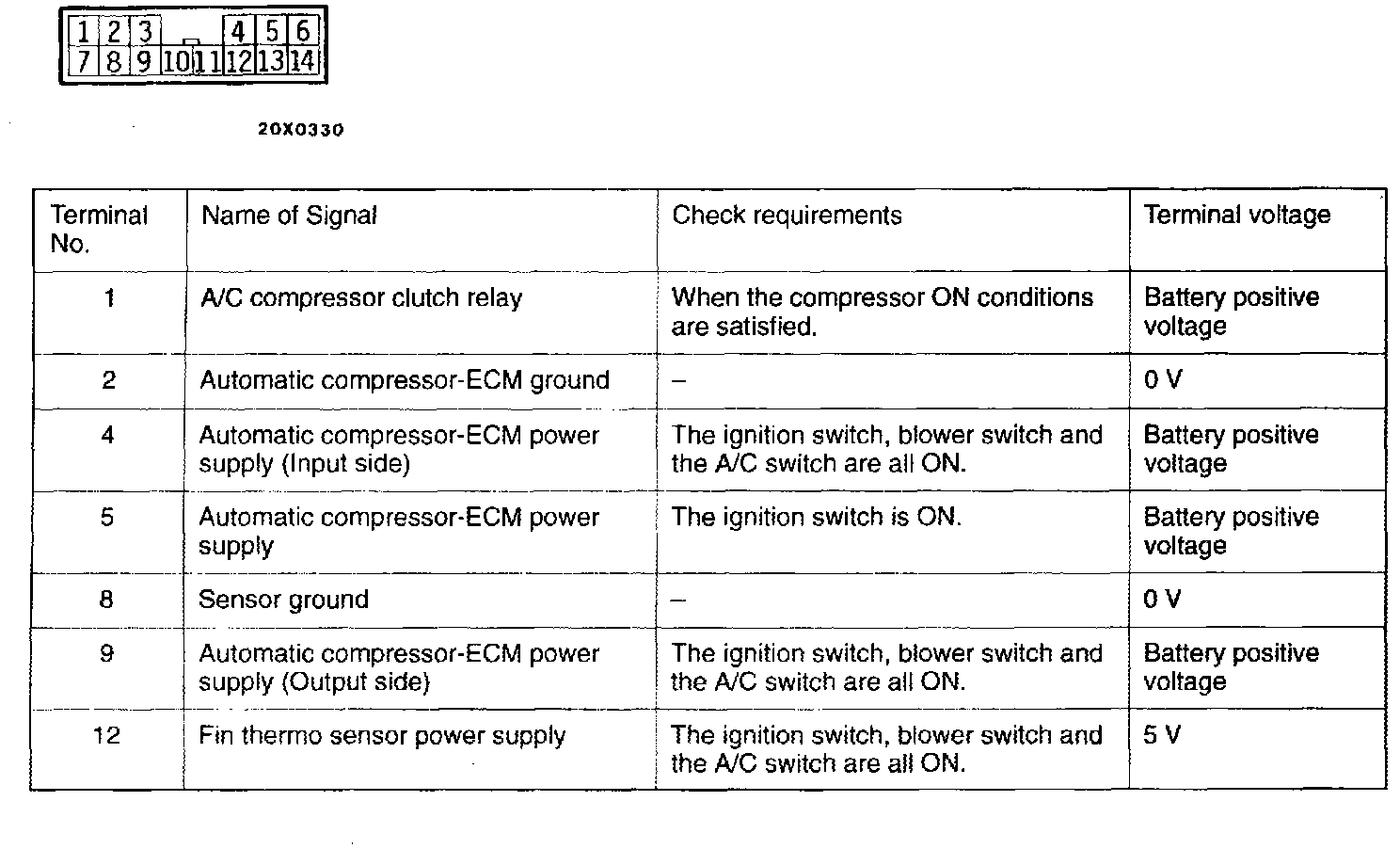

Inspection At The Automatic Compressor-ECM Terminal:

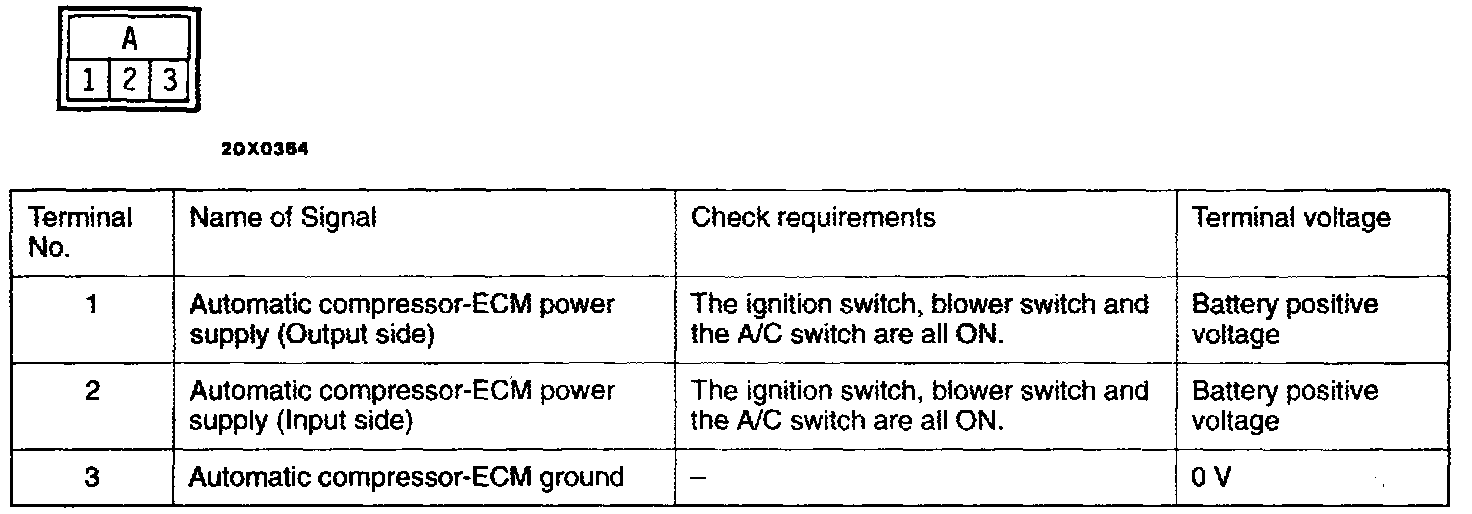

Inspection At The Automatic Compressor-ECM Terminal:
