Evaporator Housing Disassembly and Assembly

Cooling Unit Disassembly And Assembly:

DISASSEMBLY
To disassemble follow steps in image and note the following:

Disassembly Service Point:

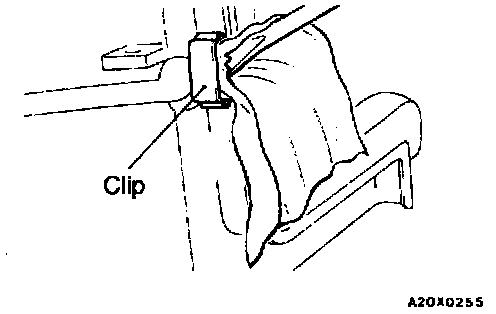

Step 1 -- Clip Removal
Remove the clips with a flat-tipped screwdriver covered with a shop towel to prevent damage to case surfaces.

ASSEMBLY
To assemble reverse steps in image.
