Refrigerant Line Replacement

Refrigerant Line Replacement:

REMOVAL

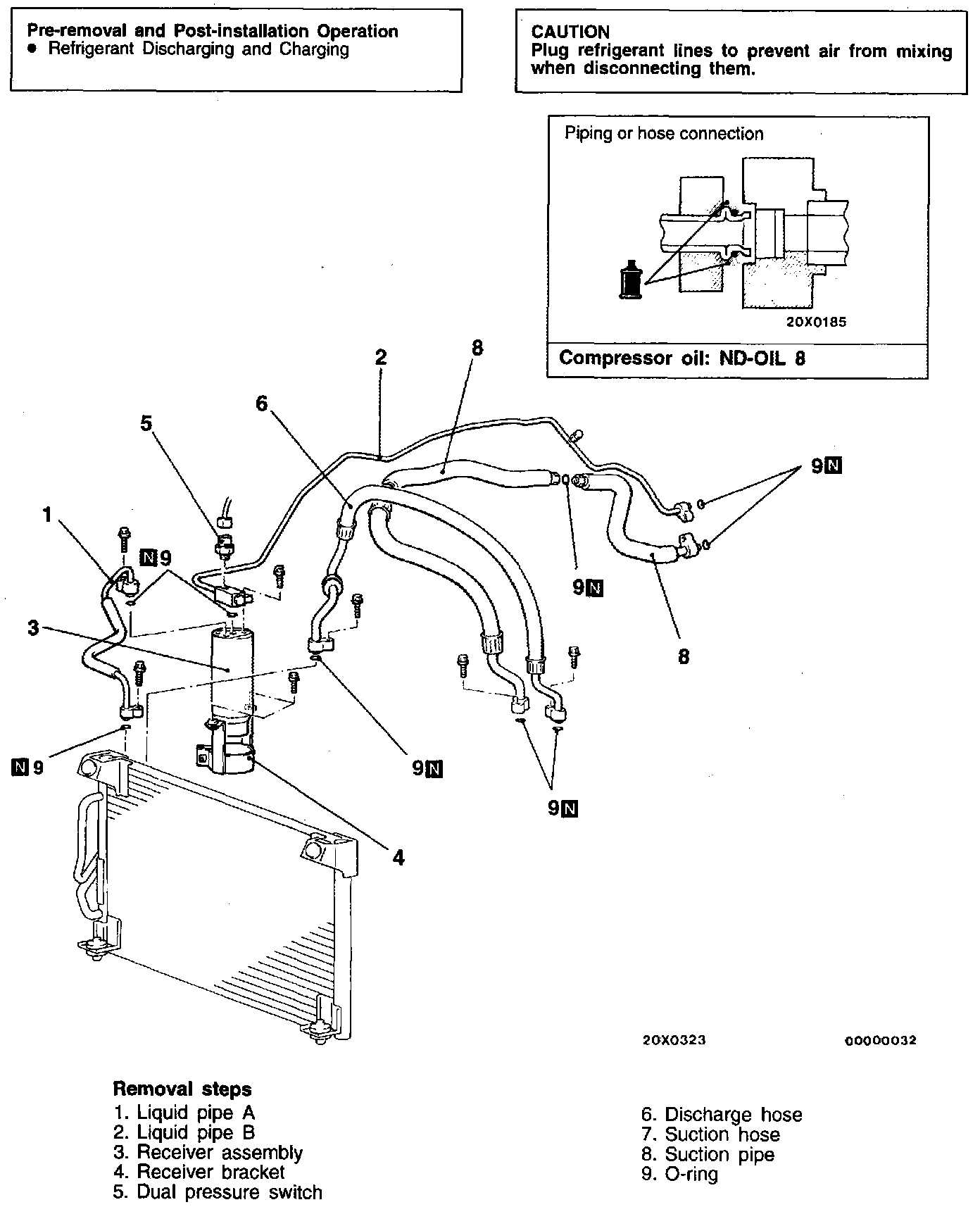

To remove follow steps in image.

INSTALLATION
To install reverse steps in image and note the following:

Step 7 & 3 -- Suction Hose & Receiver Assembly
When replacing the suction hose or the receiver assembly, refill them with a specified amount of compressor oil.

Compressor oil:
- ND-OIL 8

Quantity:
- Suction hose: 10 Cubic Cm (0.34 fl oz)
- Receiver: 10 Cubic Cm (0.34 fl oz)
