Condenser HVAC: Service and Repair

Condenser And Condenser Fan Motor Replacement:

REMOVAL

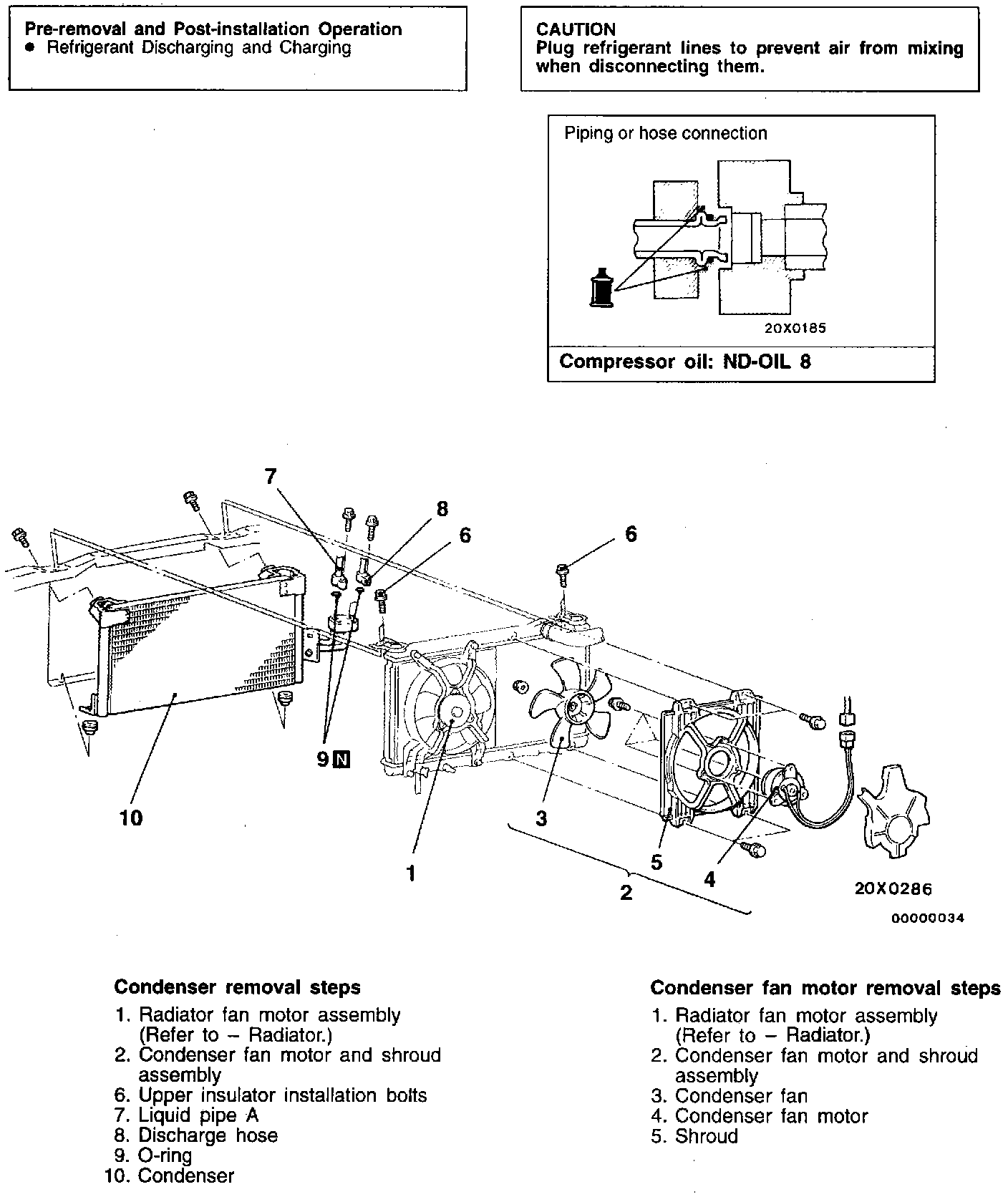

To remove follow steps in image and note the following:

Removal Service Point:

Step 10 -- Condenser Removal
Move the radiator to the engine side and then lift up the condenser to remove it.

INSTALLATION
To install reverse steps in image and note the following:

Step 10 -- Condenser Installation
When replacing the condenser with a new one, refill the condenser with a specified amount of compressor oil.
- Compressor oil: ND-OIL 8
- Quantity: 40 Cubic Cm (1.35 fl oz).

Installation Service Point:

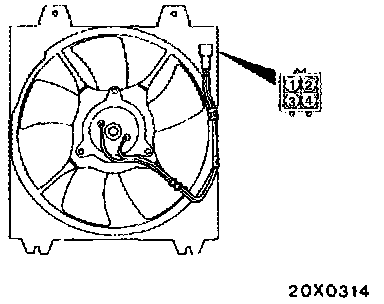

CONDENSER FAN MOTOR INSPECTION
1. Check that the condenser fan motor operates when battery voltage (+) is applied to terminal 1 and terminal 4 is grounded (-).
2. In this same condition, apply battery (+) voltage to terminal 3 and grounded terminal 2. Check that the condenser fan motor operates faster at this time.
