A/C Compressor Disassembly and Reassembly

Disassembly And Reassembly:

DISASSEMBLY

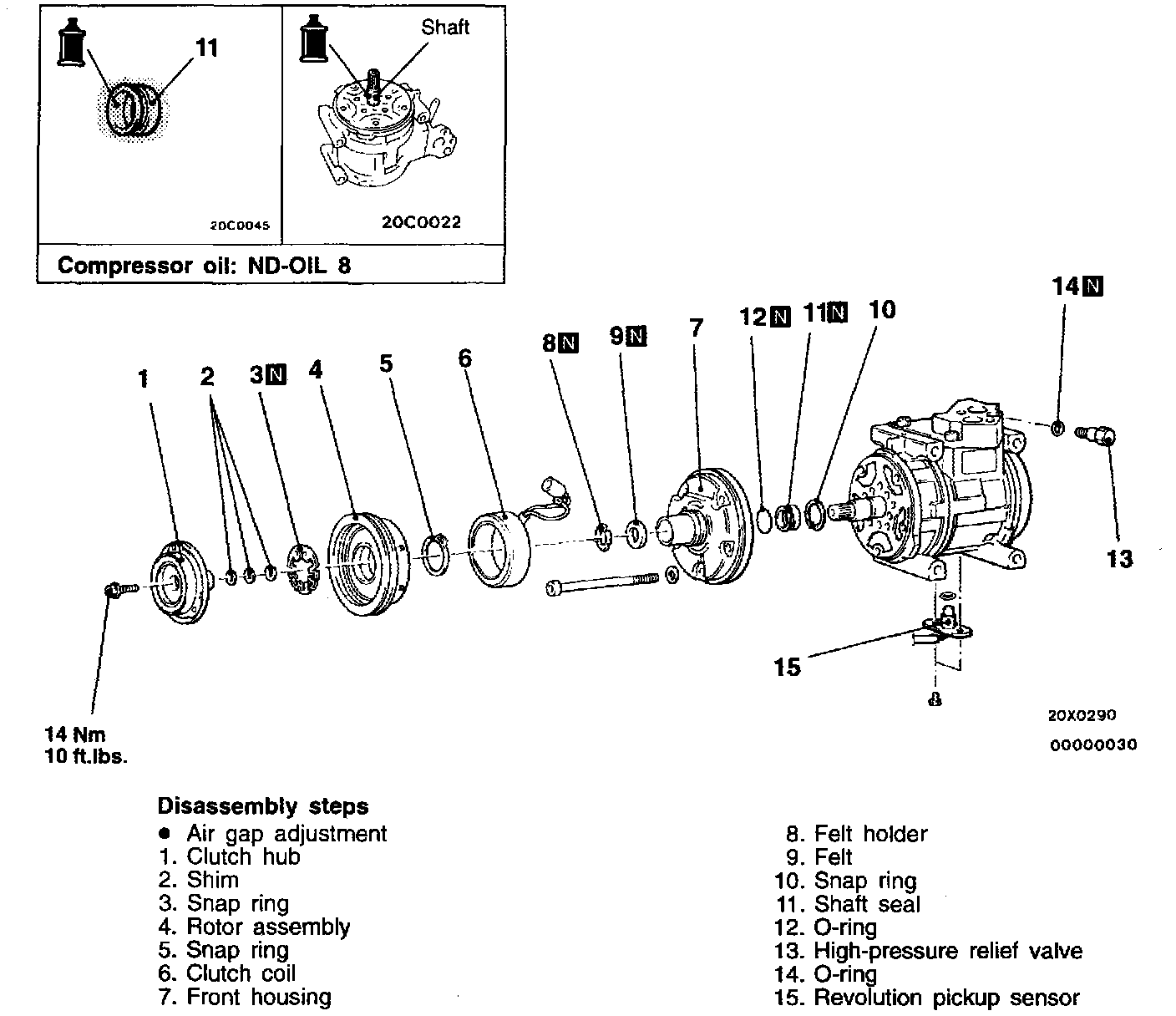

To disassemble follow steps in image and note the following:

Disassembly Service Point:

Step 1 -- Clutch Hub Removal
1. Remove the clutch hub mounting bolt.

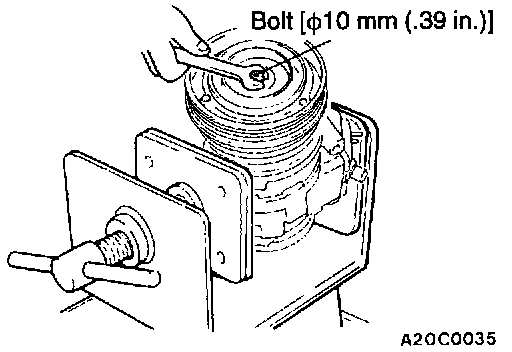

2. Tighten a 10 mm (0.39 in.) bolt into the bolt hole of the clutch hub to remove the serration assembly of the shaft and the clutch hub.

REASSEMBLY
To reassemble reverse steps in image and note the following:

Reassembly Service Point:

Step 11 -- Shaft Seal Installation

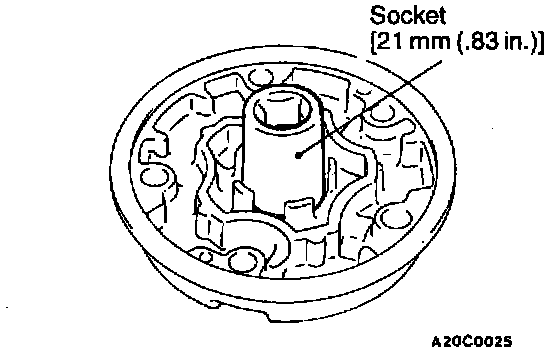

Use a 21 mm (0.83 in.) socket to install the shaft seal so that the O-ring assembly side is facing the front housing.

Reassembly Service Point:

Steps 9 & 8 -- Felt, Felt Holder Installation

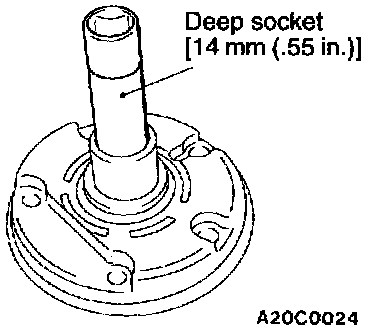

Install the felt in the felt holder, and then install them to the front housing using a 14 mm (0.55 in.) deep socket.

Reassembly Service Point:

Step 7 -- Front Housing Installation
1. Apply compressor oil to the shaft.
- Compressor oil: ND-OIL 8
2. Install the front housing without damaging the shaft seal lip.

Reassembly Service Point:

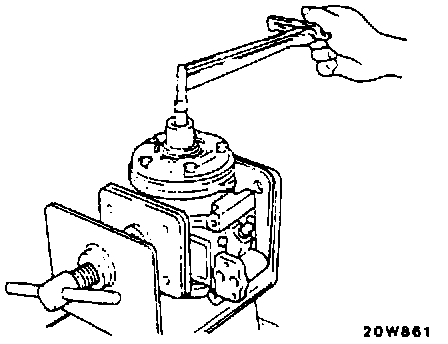

3. After installing the front housing, install the clutch hub mounting bolt to the shaft, and check that the breakaway torque is within the specified torque value.
- Breakaway torque: 5 Nm (4 ft lb) or less.

Reassembly Service Point:

Step 6 -- Clutch Coil Installation

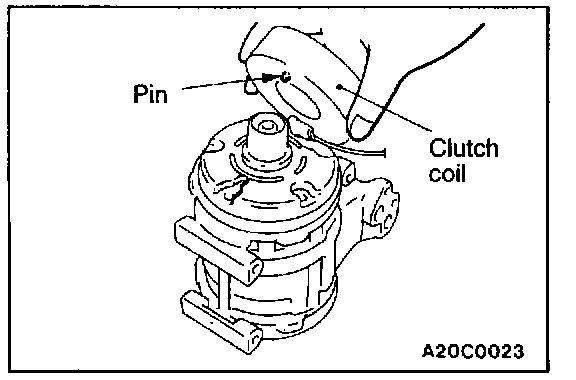

Set the clutch coil pin in the compressor housing notch, and install the clutch coil.

Reassembly Service Point:

Step 1 -- Air Gap Adjustment

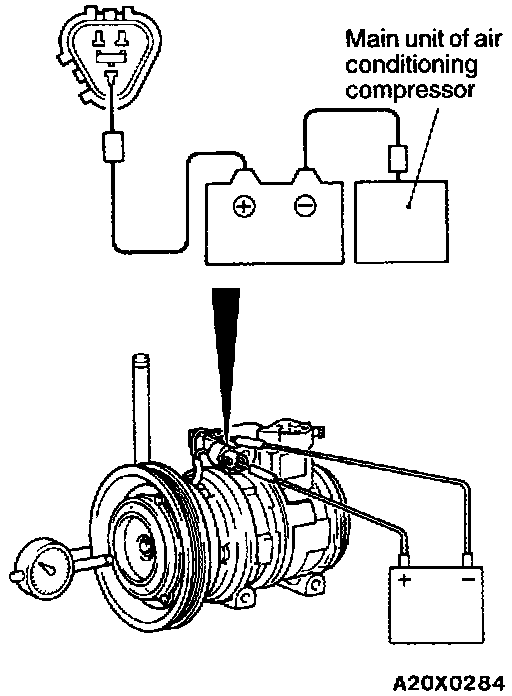

Apply battery voltage to the magnetic clutch and check that the air gap is within the standard value. If the air gap is outside the standard value, adjust with a shim.
- Standard value: 0.35 - 0.65 mm (0.0138 - 0.0256 in.)

NOTE: If there is a deviation of the air gap from the standard value, adjust the number of shims.

INSPECTION
- Check the surface of the armature for scoring or bluing.
- Check the surface of the rotor for scoring or bluing.
- Check the sealing surfaces for cracks, scratches and deformation.
- Check the front housing for cracks or scoring on the sealing surfaces.
- Check the compressor shaft for scoring.
