Inspection Resistance Value

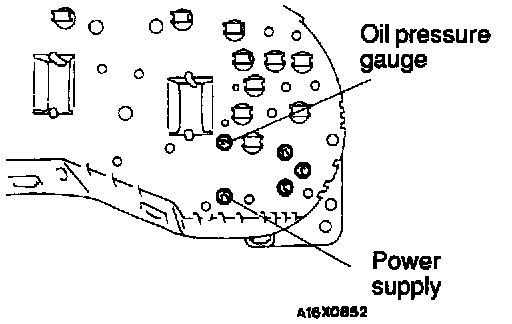

Oil Pressure Gauge:





Use an ohmmeter to measure the resistance value between terminals.
Standard value: 42 ± 2 Ohms
