A Connectors - Engine Compartment Harness

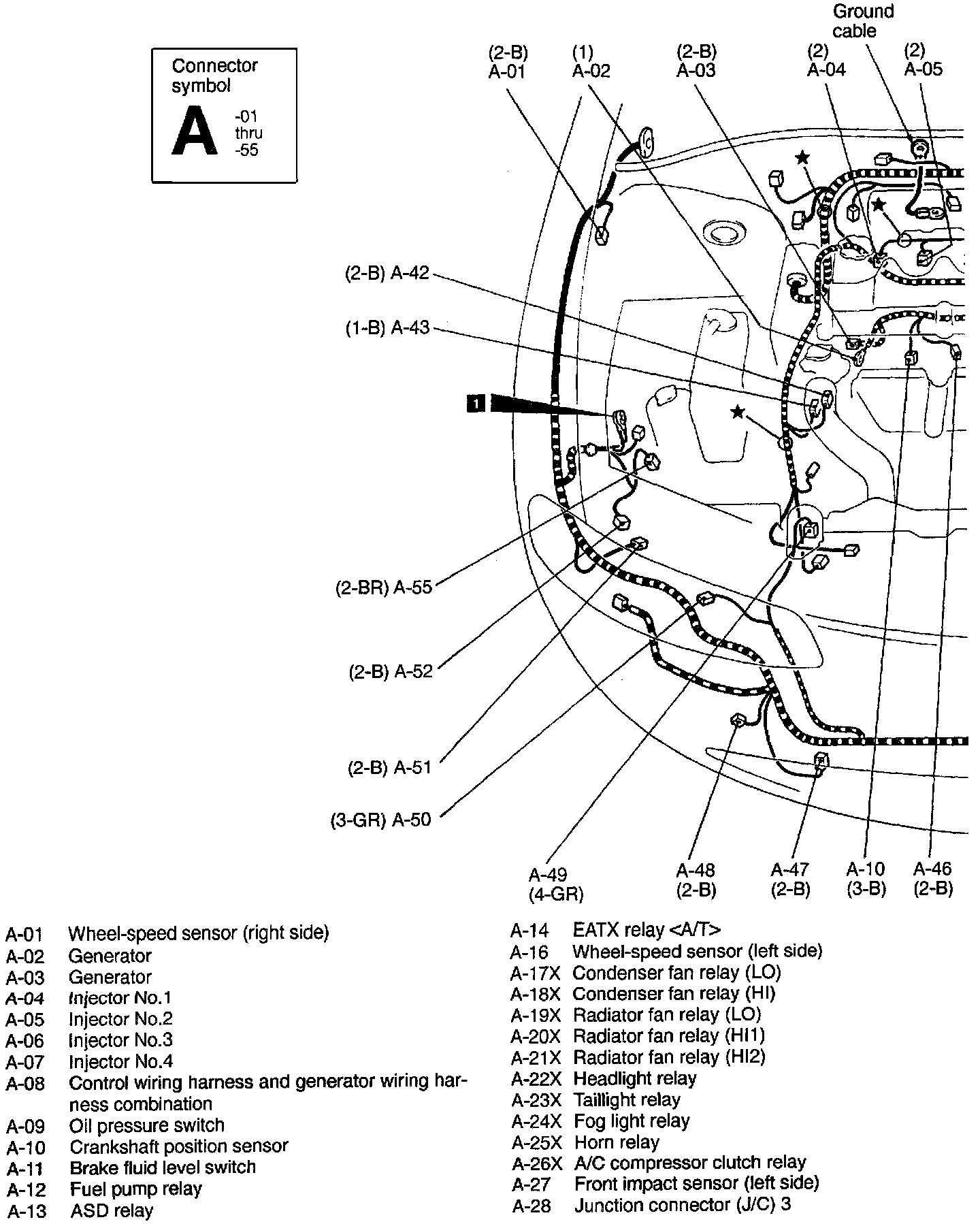

A Connectors - Engine Compartment Harness (Part 1 Of 4):

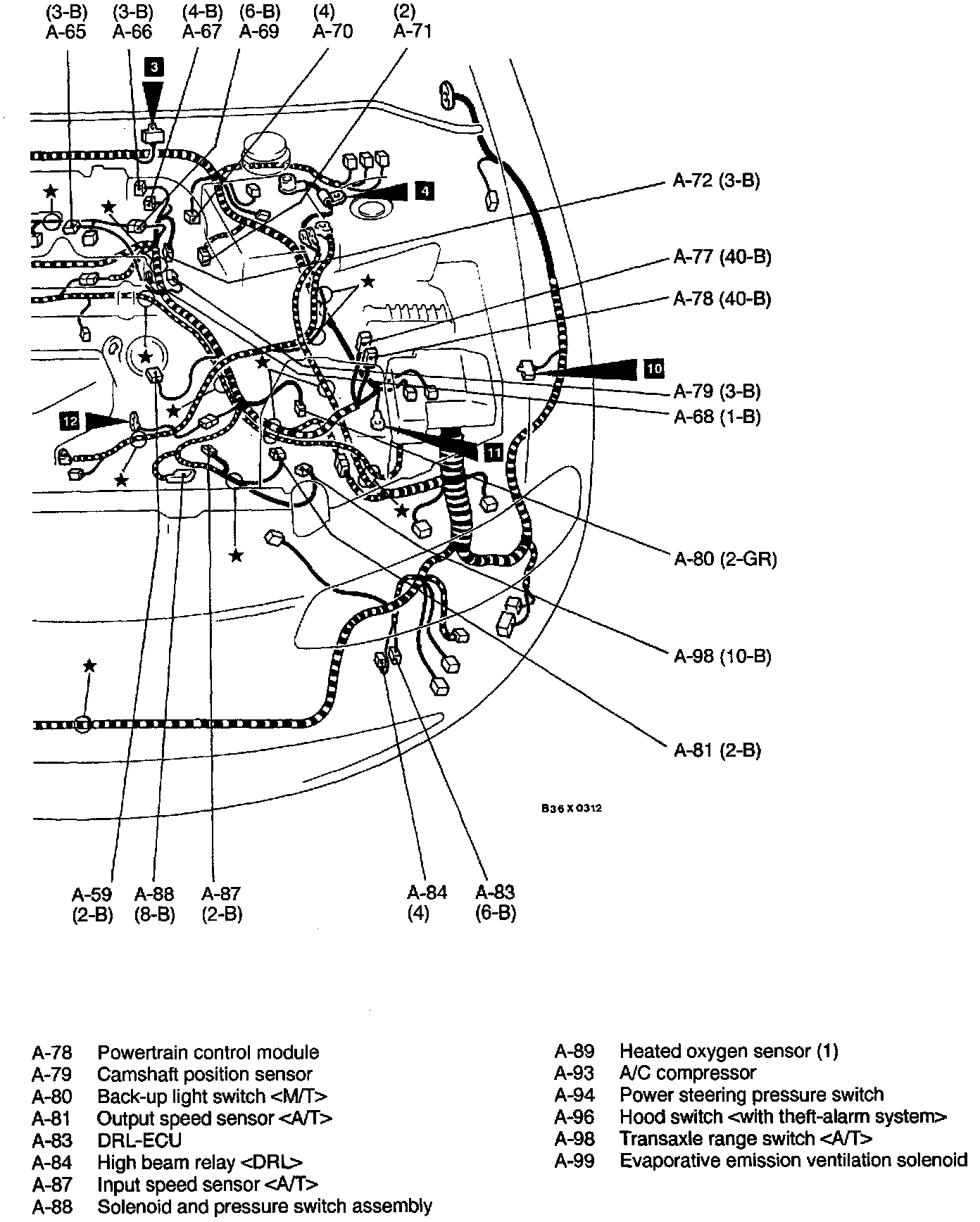

A Connectors - Engine Compartment Harness (Part 2 Of 4):

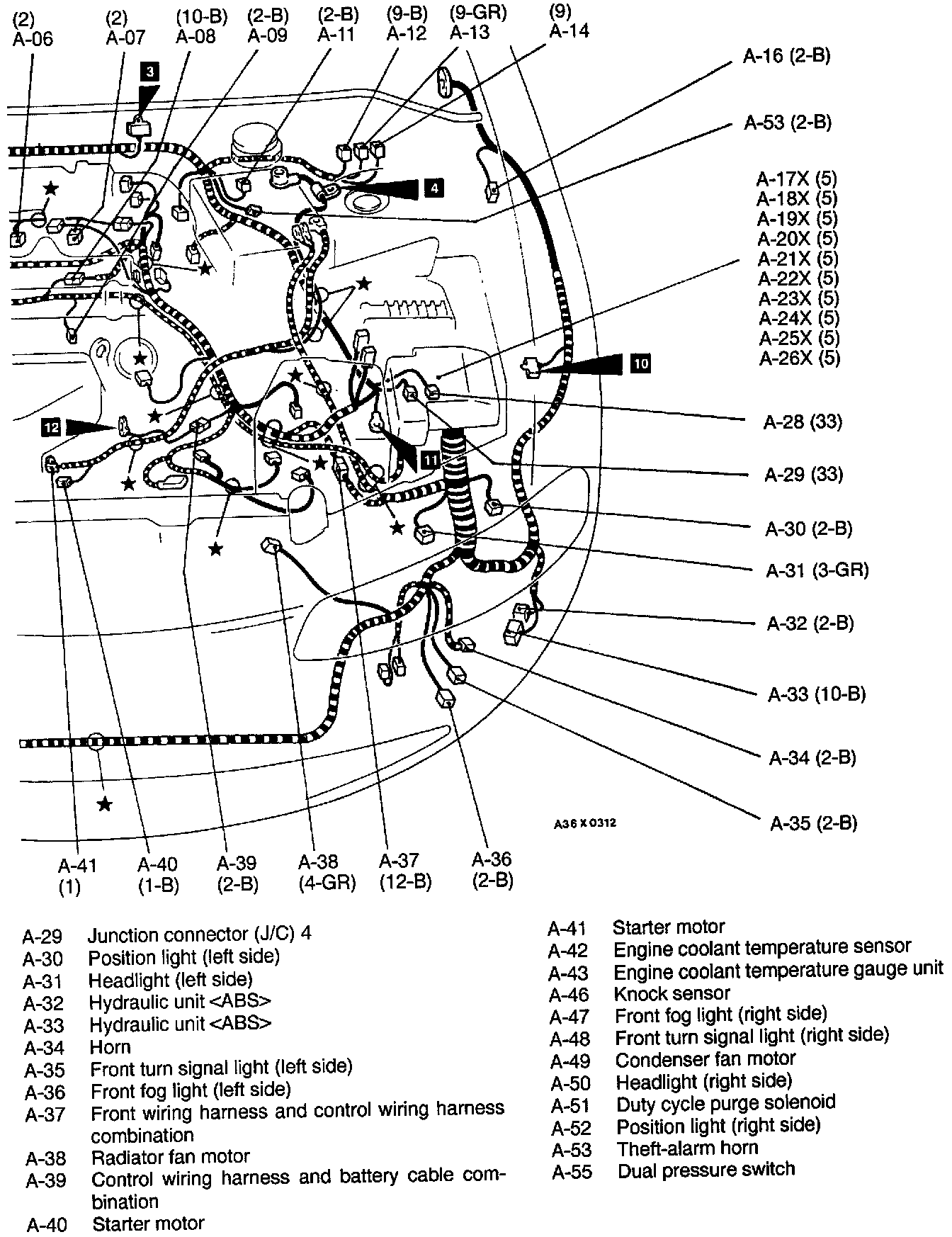

A Connectors - Engine Compartment Harness (Part 3 Of 4):

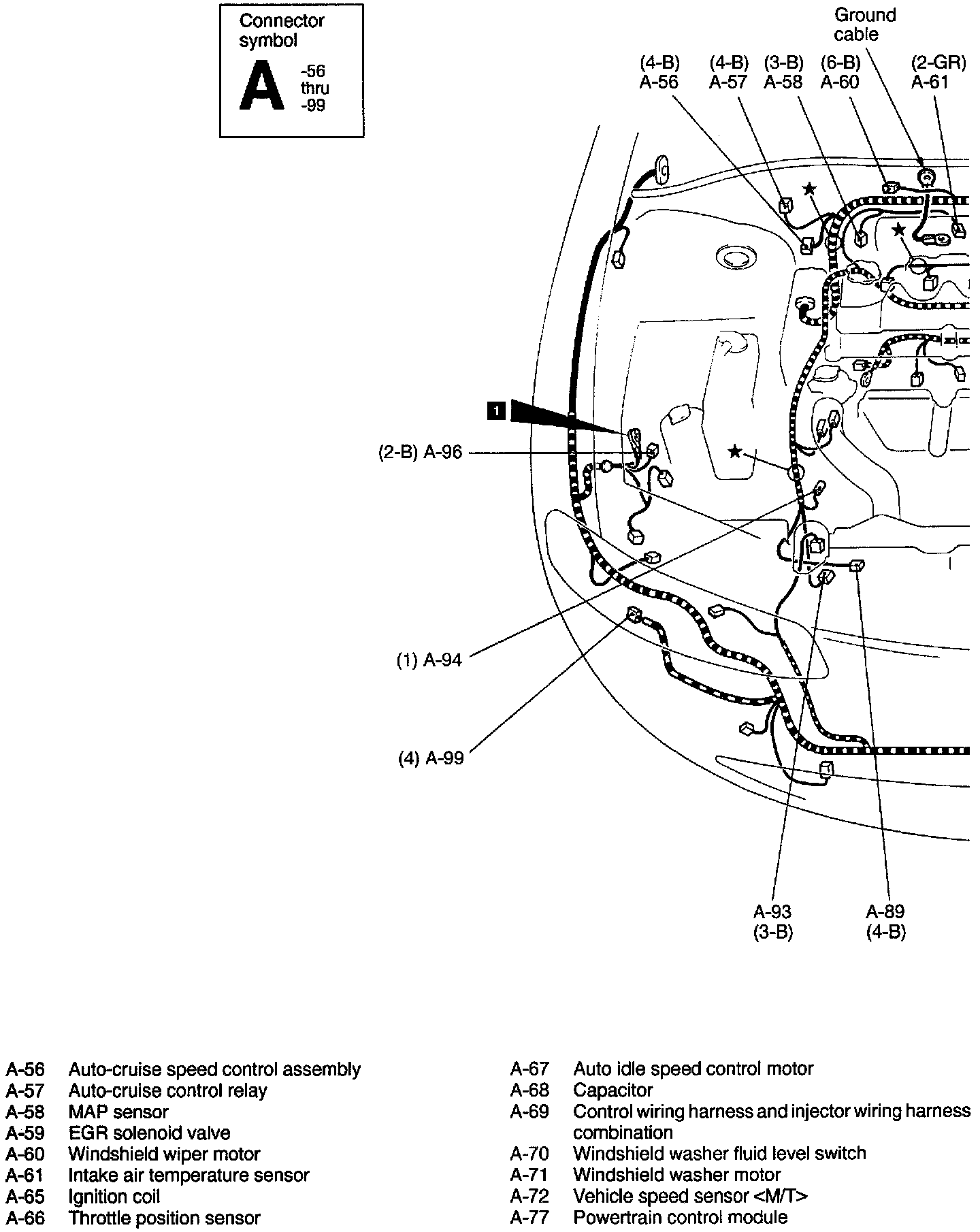

A Connectors - Engine Compartment Harness (Part 4 Of 4):
