Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection

Brakes and Traction Control: Testing and Inspection

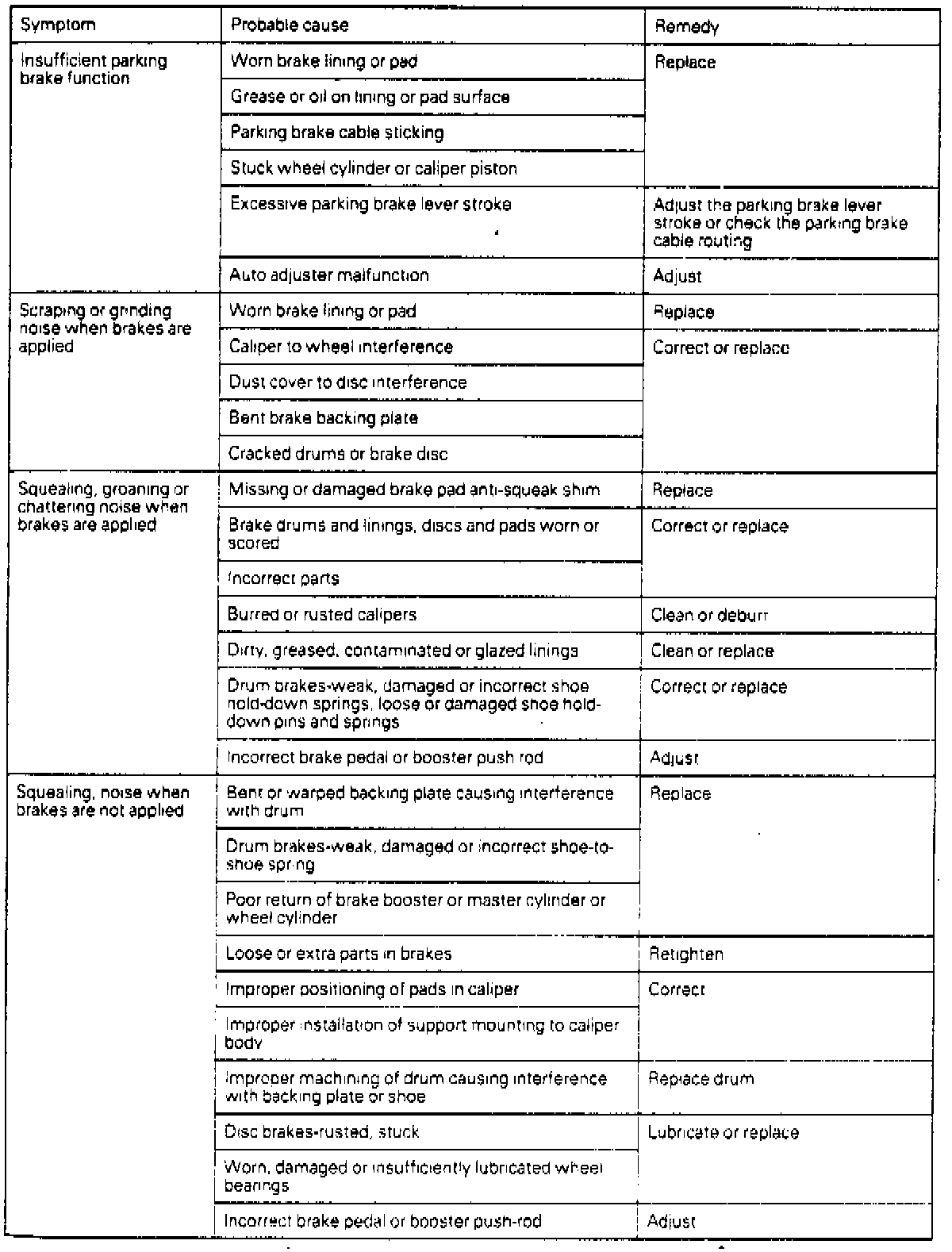

Fig 1 Brake System Troubleshooting (Part 1 Of 3):

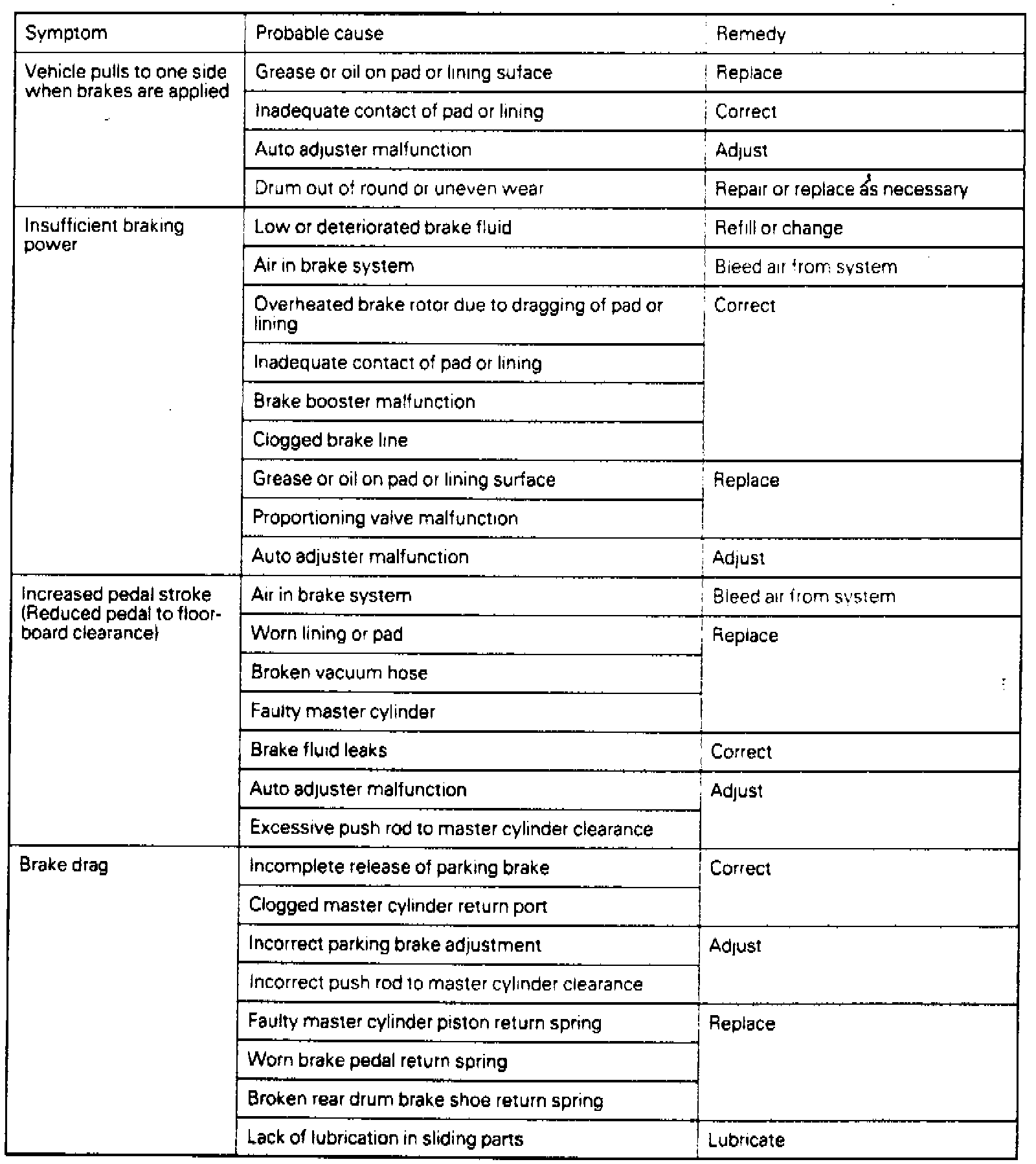

Fig 1 Brake System Troubleshooting (Part 2 Of 3):

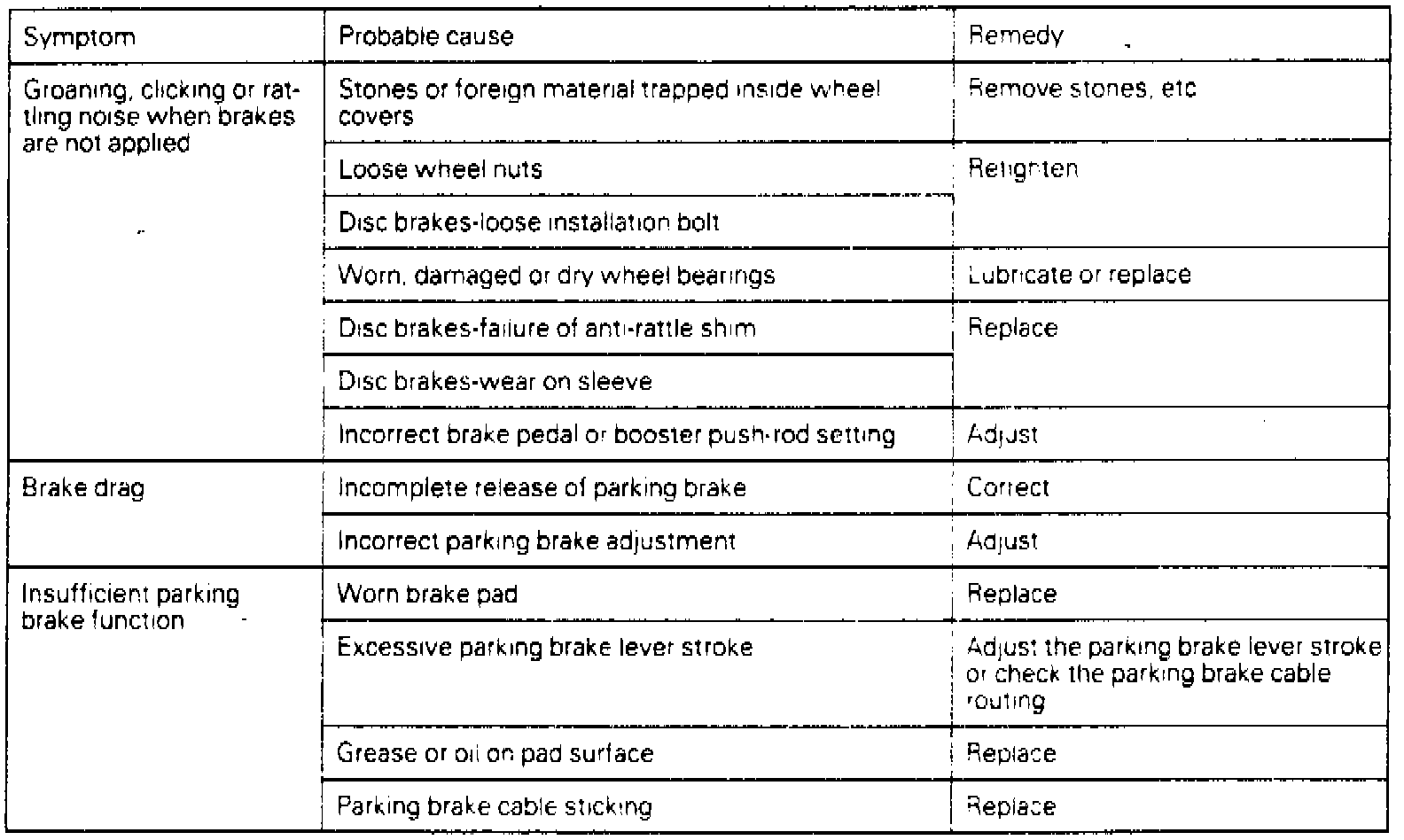

Fig 1 Brake System Troubleshooting (Part 3 Of 3):
