Hydraulic Control Assembly - Antilock Brakes: Service and Repair

The hydraulic unit must not be disassembled, its nuts and bolts must not be loosened. Do not drop or subject the hydraulic unit to any impact shocks. Do not turn hydraulic unit upside down or lay unit on its side.

1. Drain brake fluid from fluid reservoir.
2. Remove lefthand fender inner splash shield.
3. Remove lefthand headlamp assembly.
4. Remove air cleaner assembly, ECM and relay box bracket.

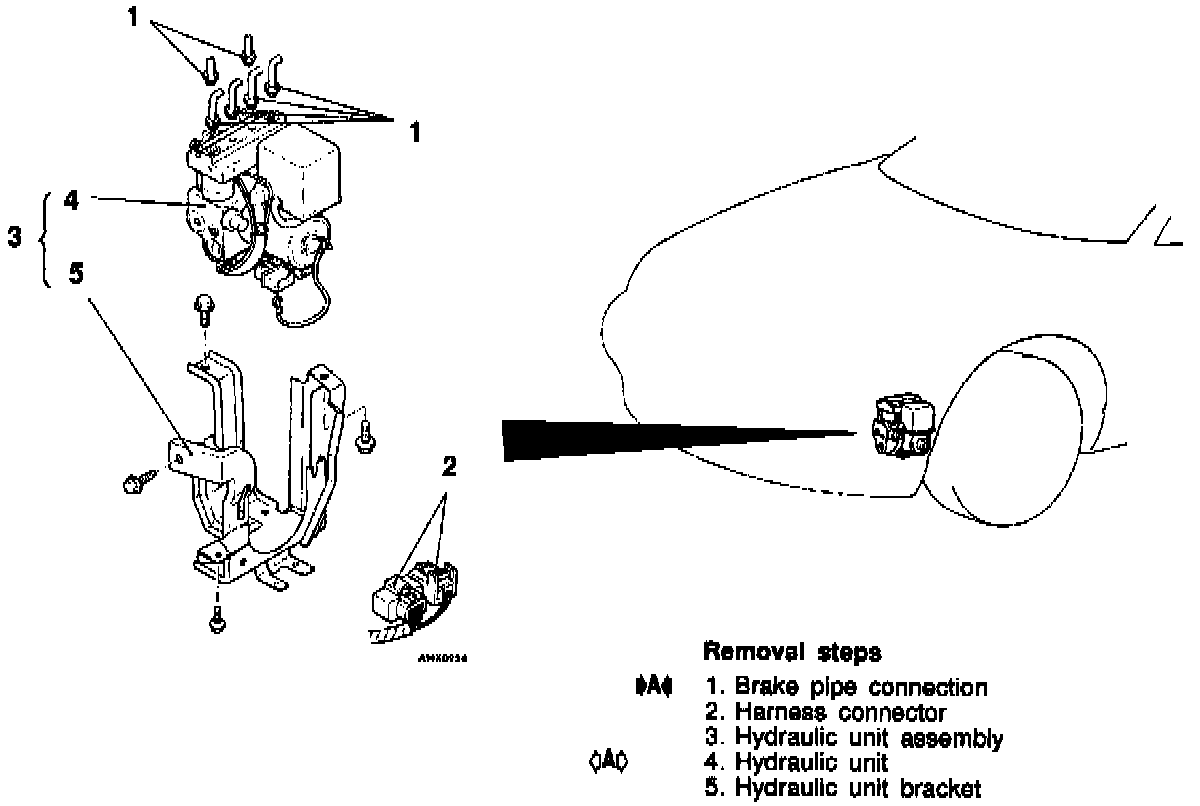

Fig 95 Hydraulic Unit Removal:

6. Remove hydraulic unit from vehicle as shown.
7. Reverse procedure to install, torque hydraulic brake line fittings to 11 ft. lbs. and bleed brake system as described under Hydraulic System/Service and Repair.
