Brake Shoe Removal and Installation

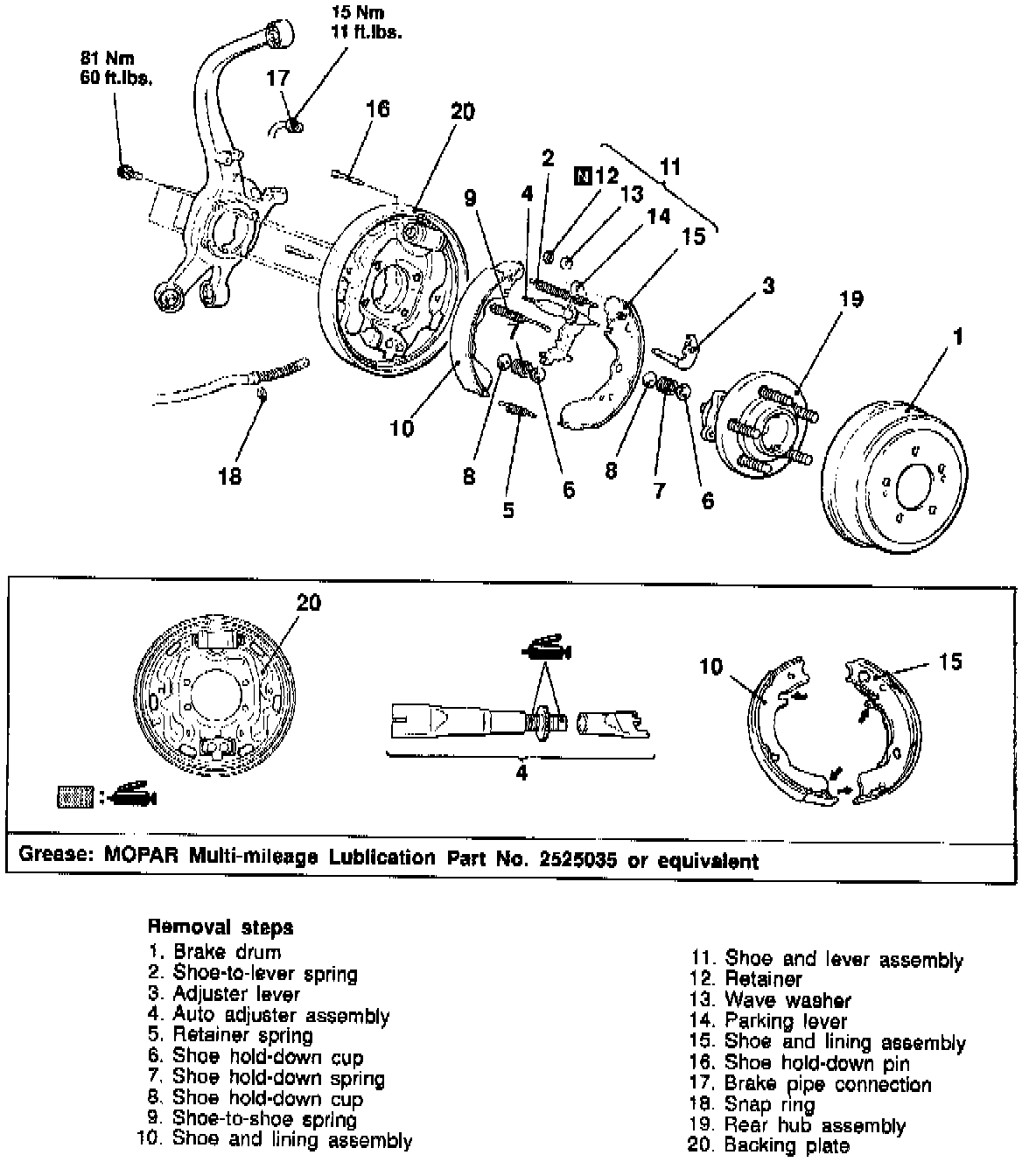

Fig 4 Leading Trailing Drum Brake Assembly:

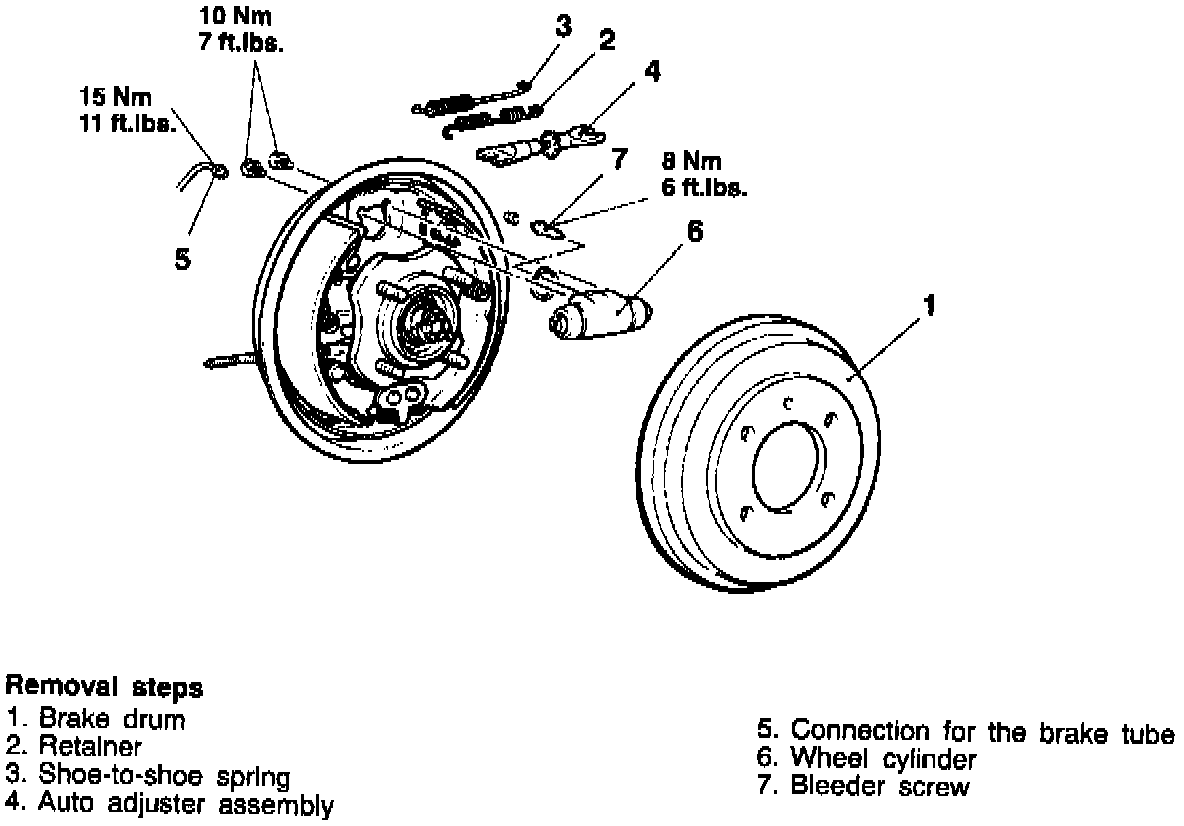

Fig 6 Rear Drum Brake Wheel Cylinder:





For drum brake service procedures, refer to figures above.
