Test 6 - ABS Warning Lamp Flashes Once After Key Is Turned On
Test 6 - ABS Warning Lamp Flashes Once After Key Is Turned On

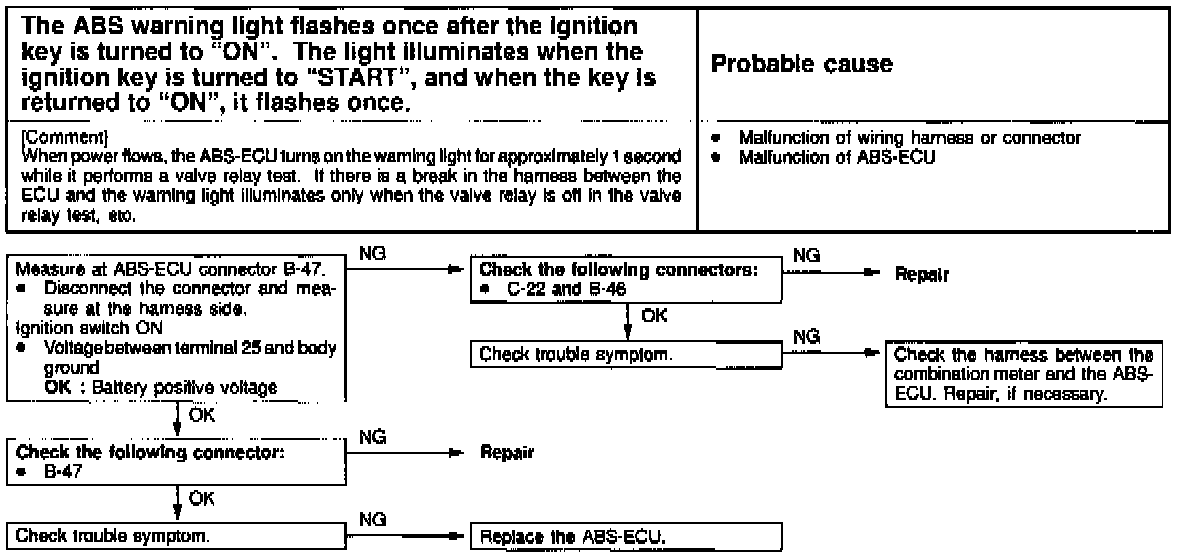

Fig 45 Test 6: ABS Warning Lamp Flashes Once After Ignition Key Is Turned On:
