Test 5 - ABS Warning Lamp Does Not Illuminate, Key in Start
Test 5 - ABS Warning Lamp Does Not Illuminate, Key in Start

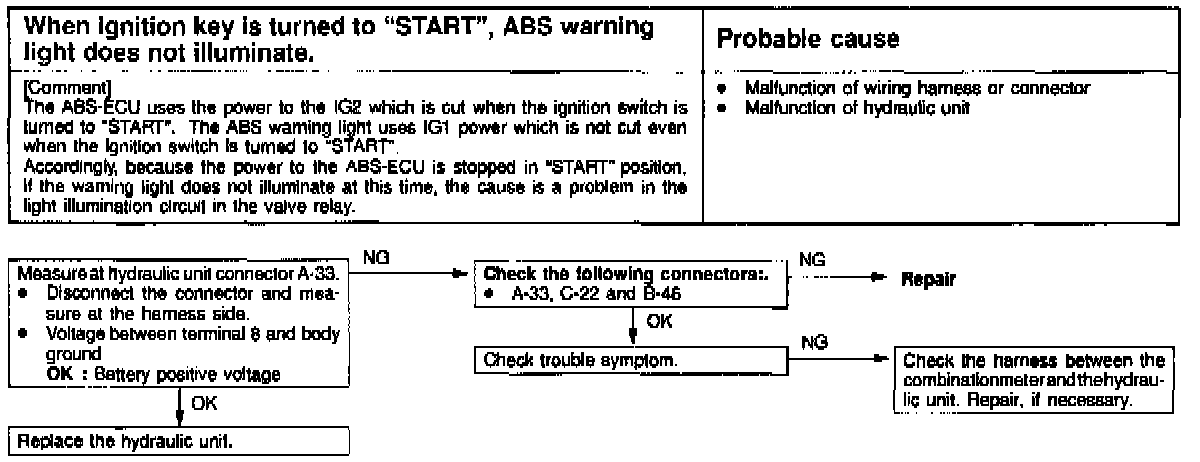

Fig 43 Test 5: When Ignition Key Is Turned To "Start" ABS Warning Lamp Does Not Illuminate:
