Test 4 - ABS Lamp Remains Illuminated After Engine Is Started
Test 4 - ABS Lamp Remains Illuminated After Engine Is Started

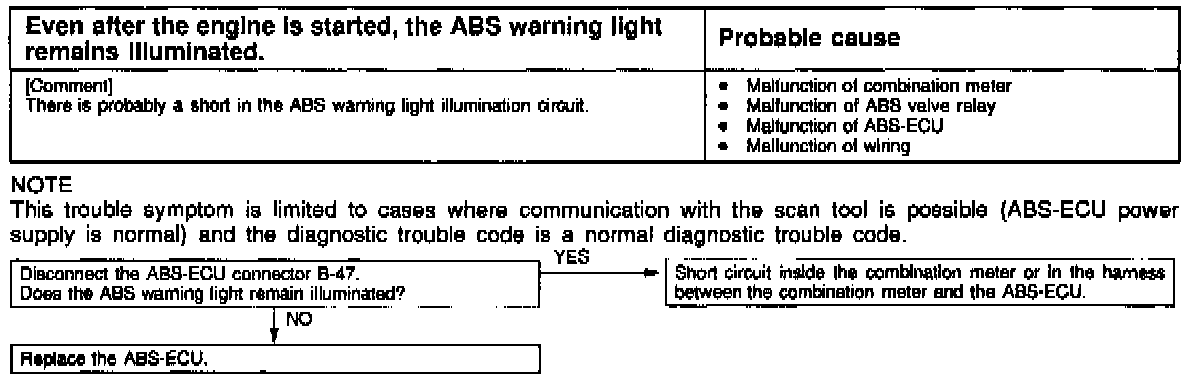

Fig 41 Test 4: Even After Engine Is Started ABS Lamp Remains Illuminated:
