Test 3 - ABS Warning Lamp Does Not Illuminate When Key is ON
Test 3 - ABS Warning Lamp Does Not Illuminate When Key is ON

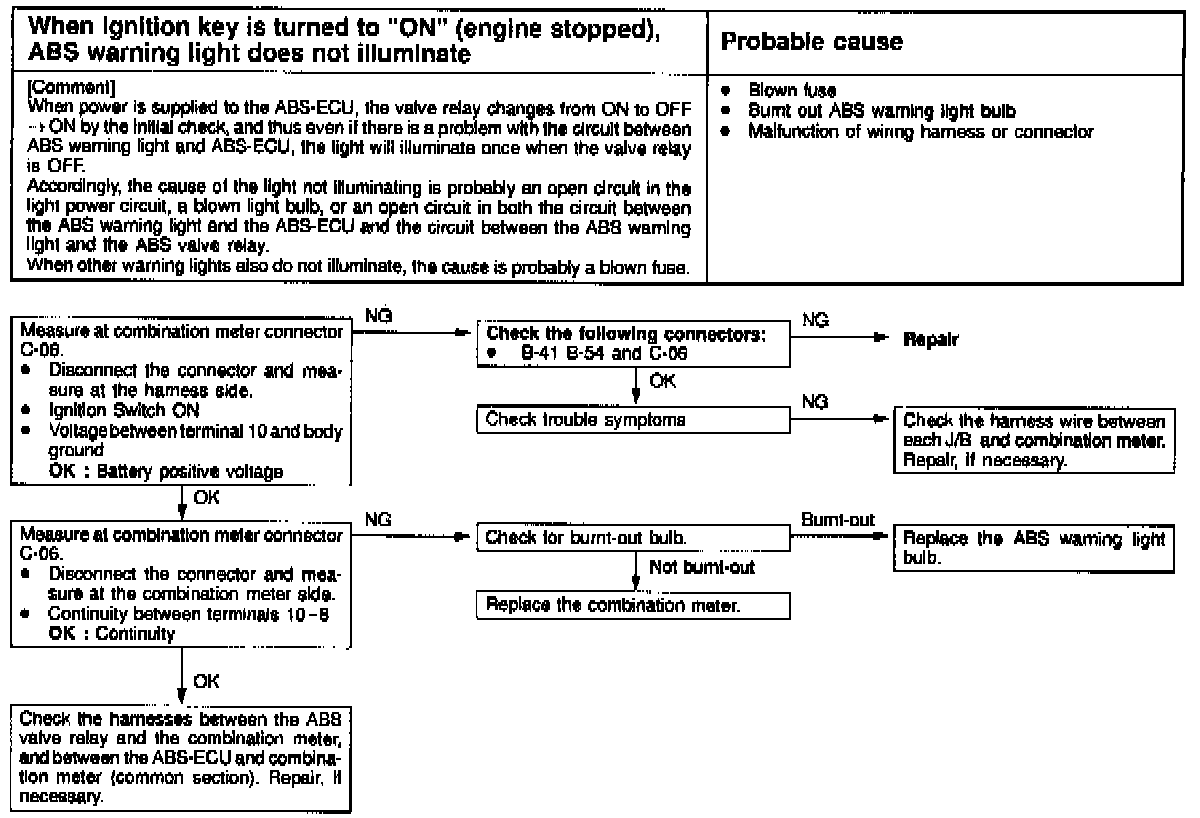

Fig 39 Test 3: When Ignition Key Is Turned On ABS Warning Lamp Does Not Illuminate:
