Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Test 2 - Scan Tool Communication With ABS Only Is Not Possible

Test 2 - Scan Tool Communication With ABS Only Is Not Possible

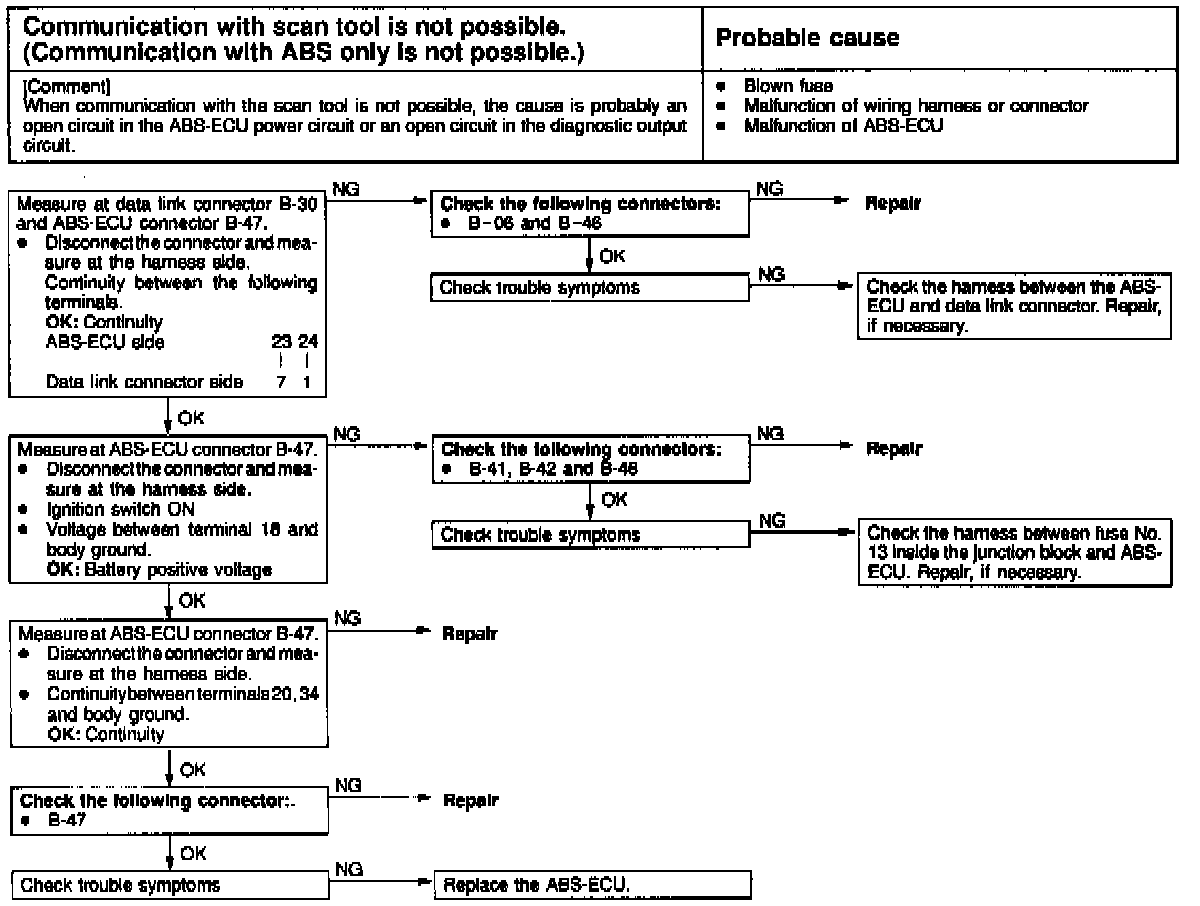

Fig 36 Test 2: Communication With Scan Tool Is Not Possible/Communication With ABS Only Is Not Possible:
