Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Luggage / Roof Rack >> Diagrams >> Electrical Diagrams

Electrical Diagrams

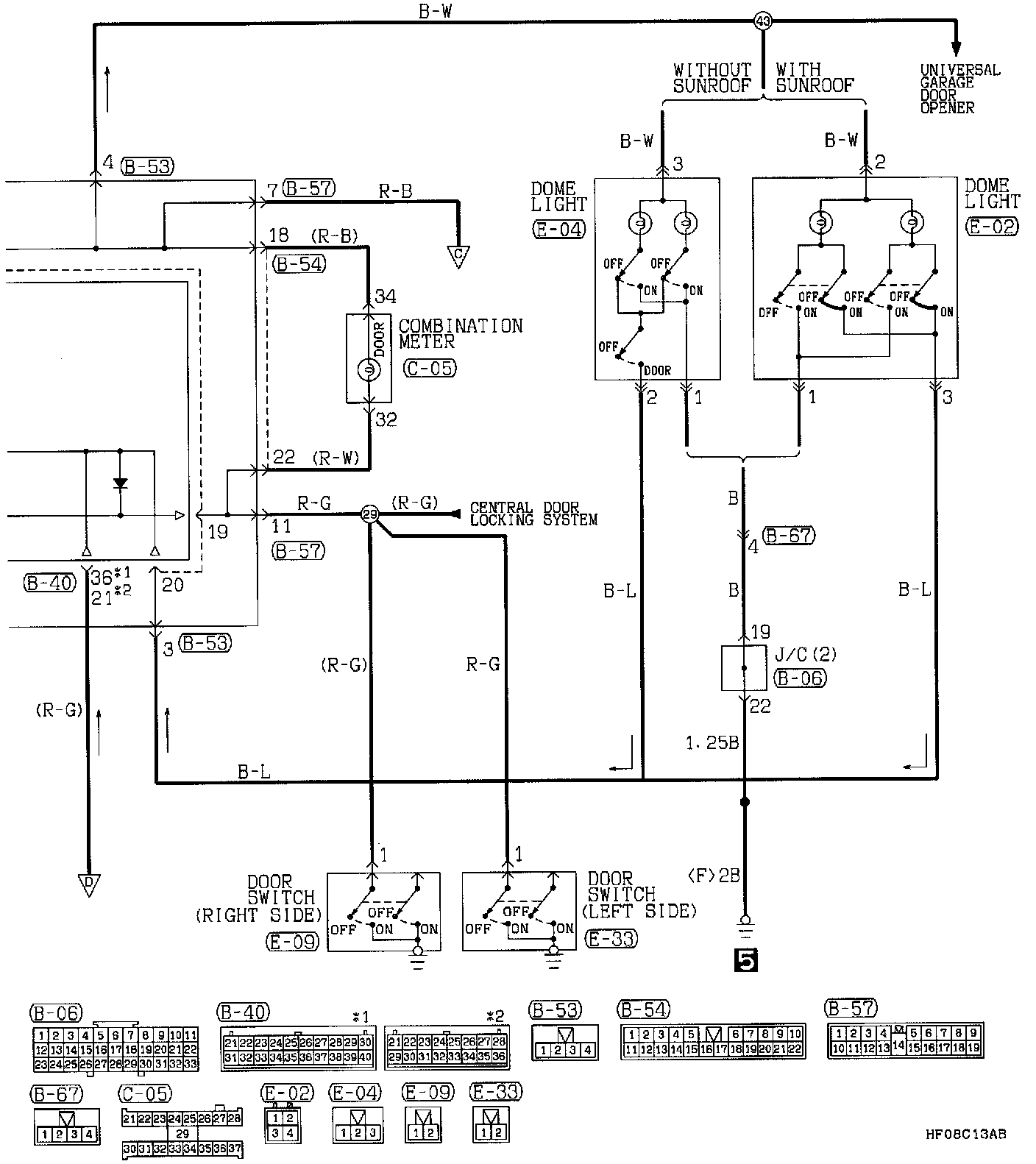

Dome, Foot And Luggage Compartment Light Circuit (Part 1 Of 3):

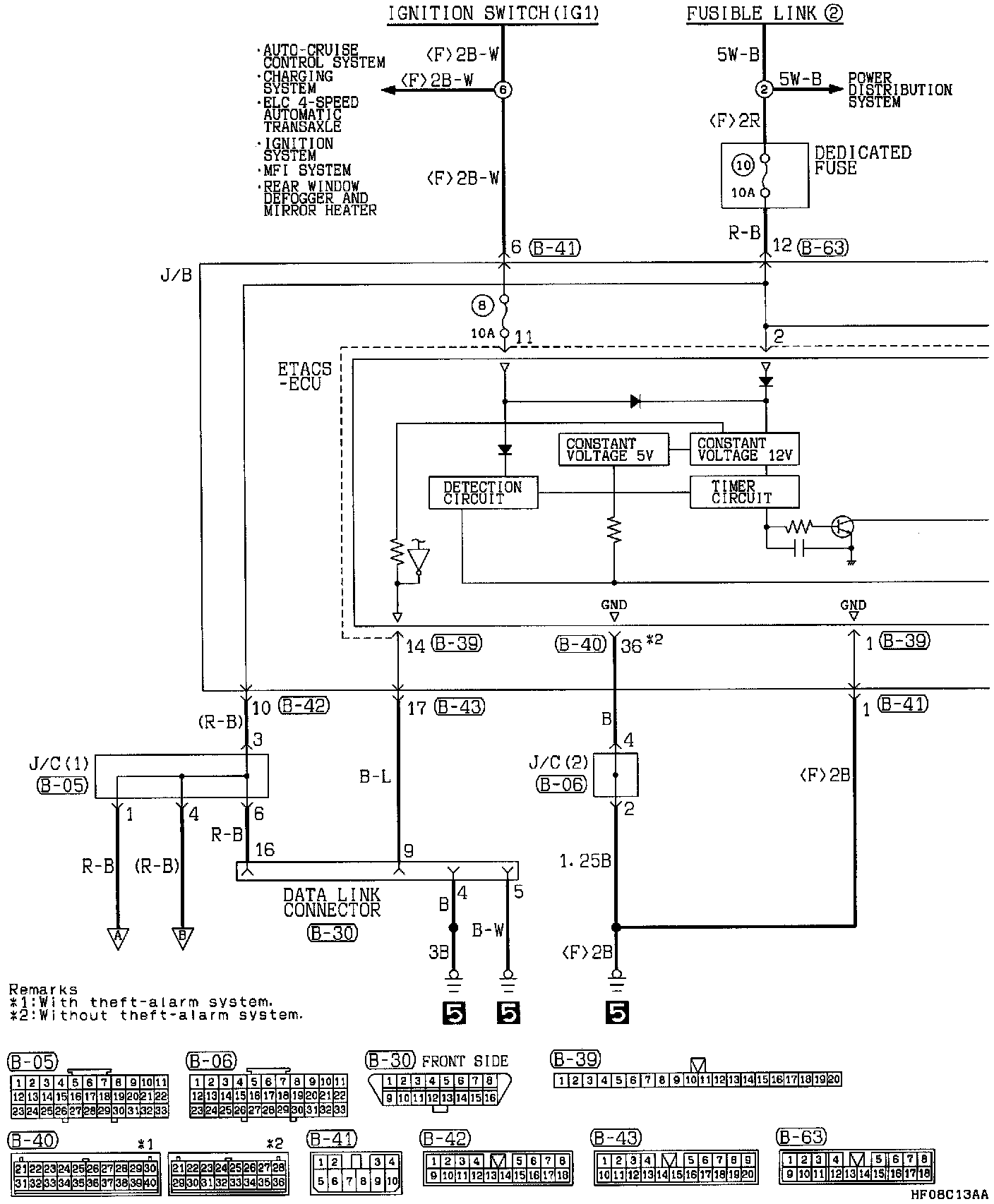

Dome, Foot And Luggage Compartment Light Circuit (Part 2 Of 3):

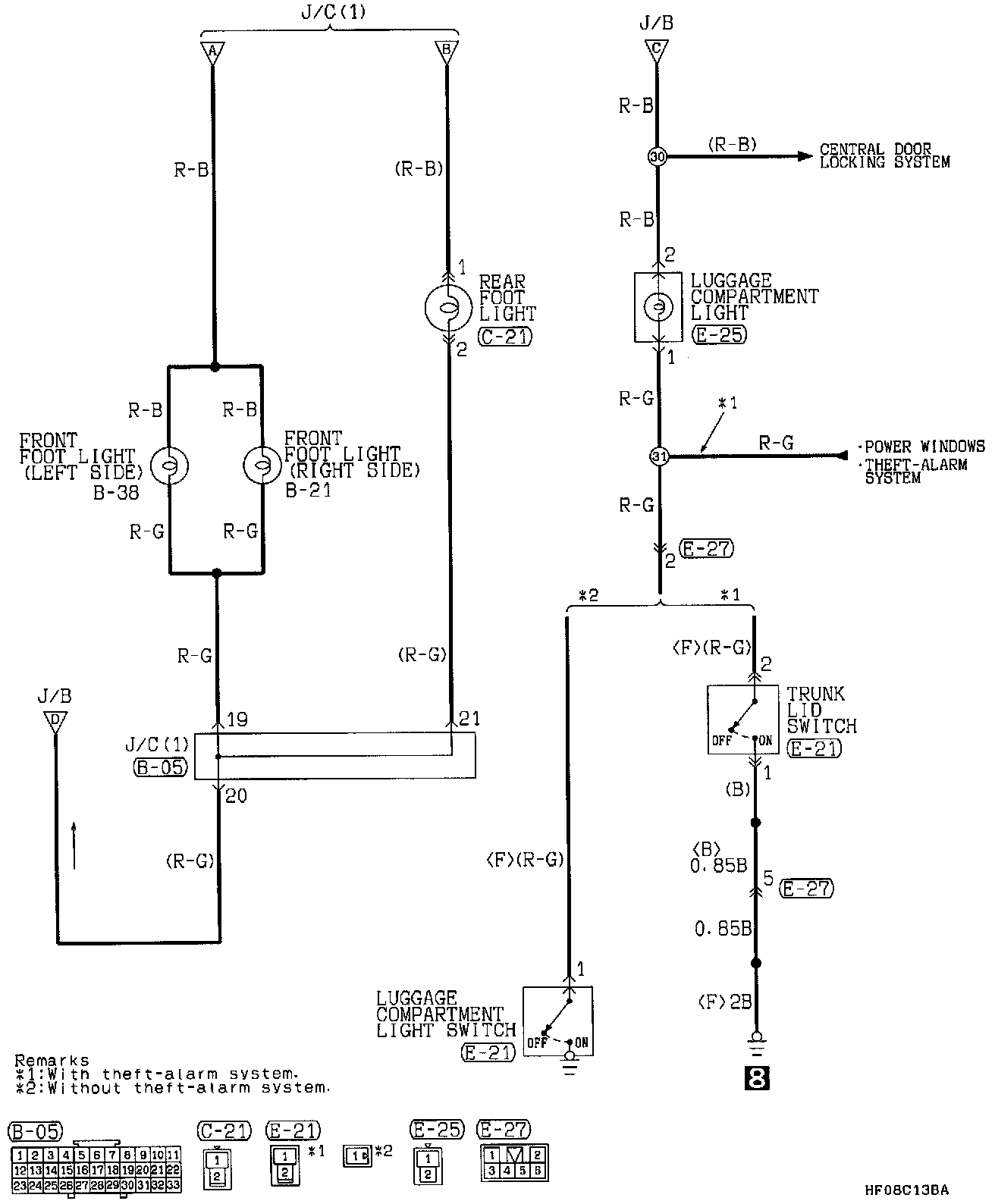

Dome, Foot And Luggage Compartment Light Circuit (Part 3 Of 3):
