Outside Rear View Mirror

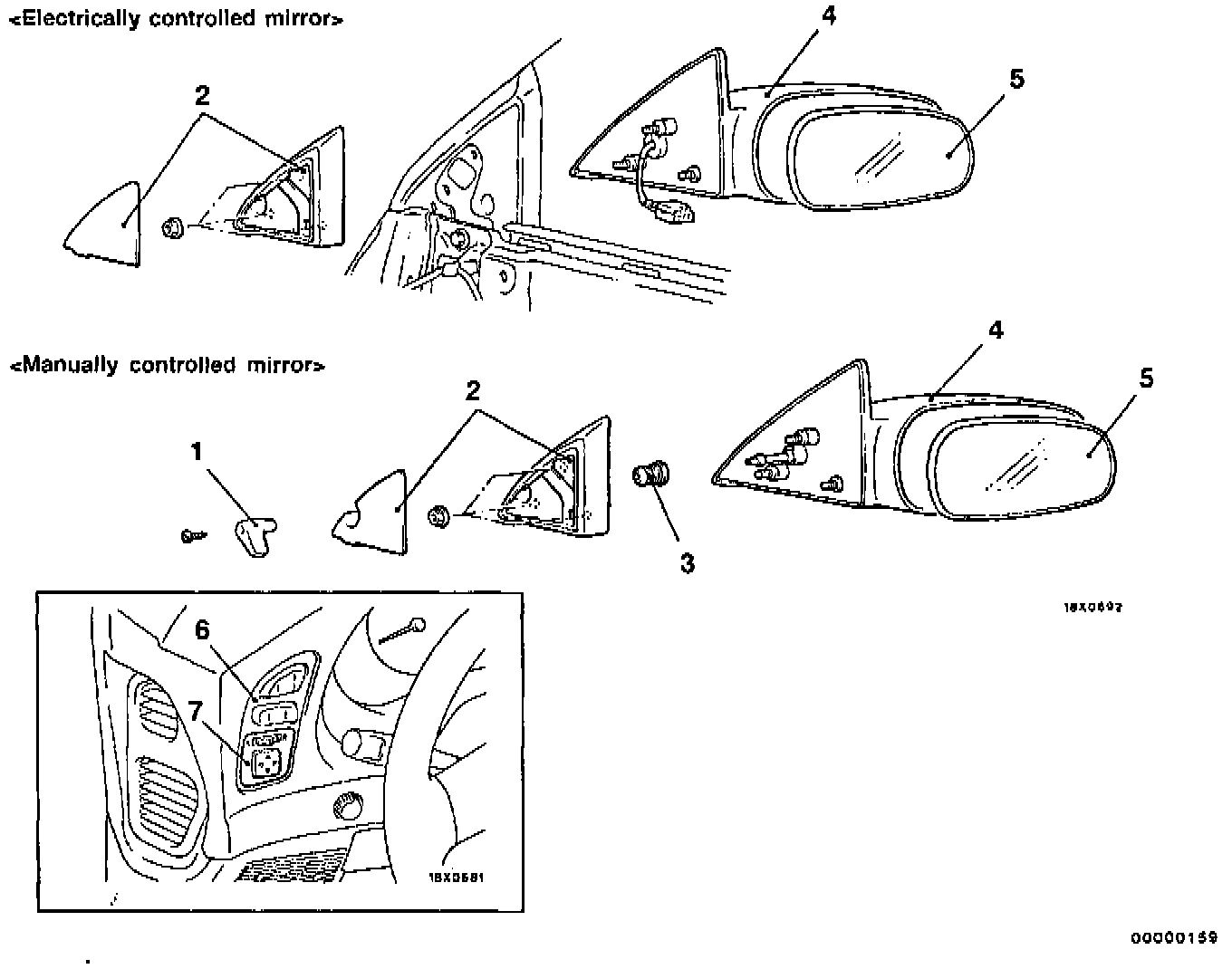

Door mirror removal steps
^ Door trim panel

1. Knob
2. Delta cover inner
3. Boot
4. Door mirror
5. Mirror

Door Mirror Control Switch Removal Steps
6. Instrument panel switch assembly
7. Door mirror control switch

REMOVAL SERVICE POINT





Mirror Removal
Turn the mirror by hand so that it faces upwards, insert the flat-tipped screwdriver wound with masking tape into the notched section, and lever out the mirror to remove it.
