Trim Panel: Service and Repair

COWL SIDE TRIM REMOVAL STEPS
1. Scuff plate
2. Cowl side trim

FRONT PILLAR TRIM REMOVAL STEPS
3. Front pillar trim

REAR SHELF TRIM REMOVAL STEPS
^ Rear seat side back
4. Speaker garnish
5. Rear shelf trim
6. Shelf front cover

QUARTER TRIM REMOVAL STEPS
^ Rear seat side back

7. Quarter trim, lower
8. Grip
9. Grip bracket
^ Front seat belt anchor plate
^ Rear seat belt anchor plate
10. Coat hanger bracket
11. Quarter trim, upper

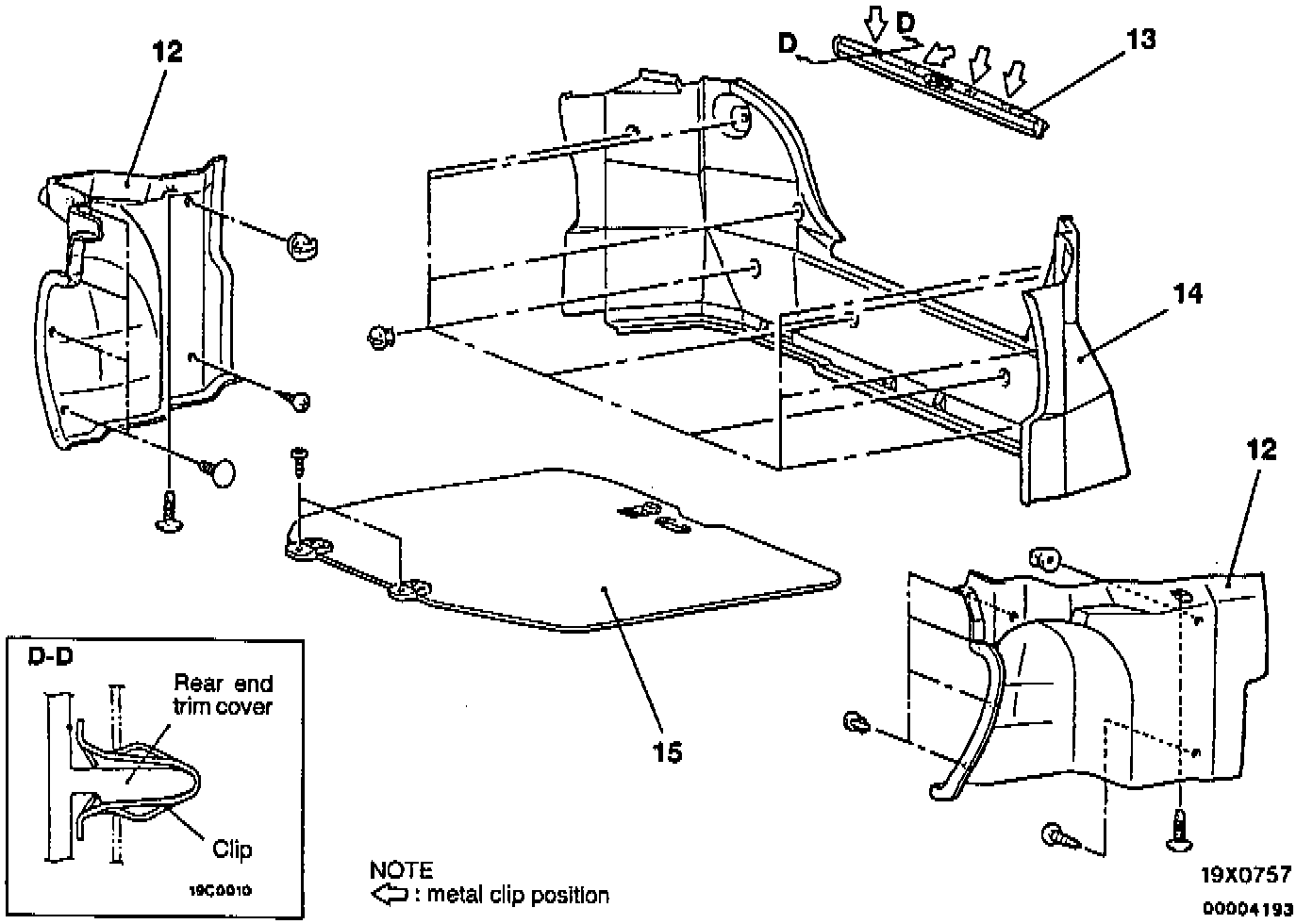

LUGGAGE COMPARTMENT SIDE TRIM REMOVAL
12. Luggage compartment side trim

LUGGAGE COMPARTMENT REAR TRIM REMOVAL
13. Luggage compartment rear end trim
14. Luggage compartment rear trim

LUGGAGE COMPARTMENT FLOOR BOARD REMOVAL
15. Luggage compartment floor board
