Headliner: Service and Repair

PRE-REMOVAL AND POST-INSTALLATION OPERATION
^ Front Pillar Trim
^ Quarter Trim Upper Removal and Installation

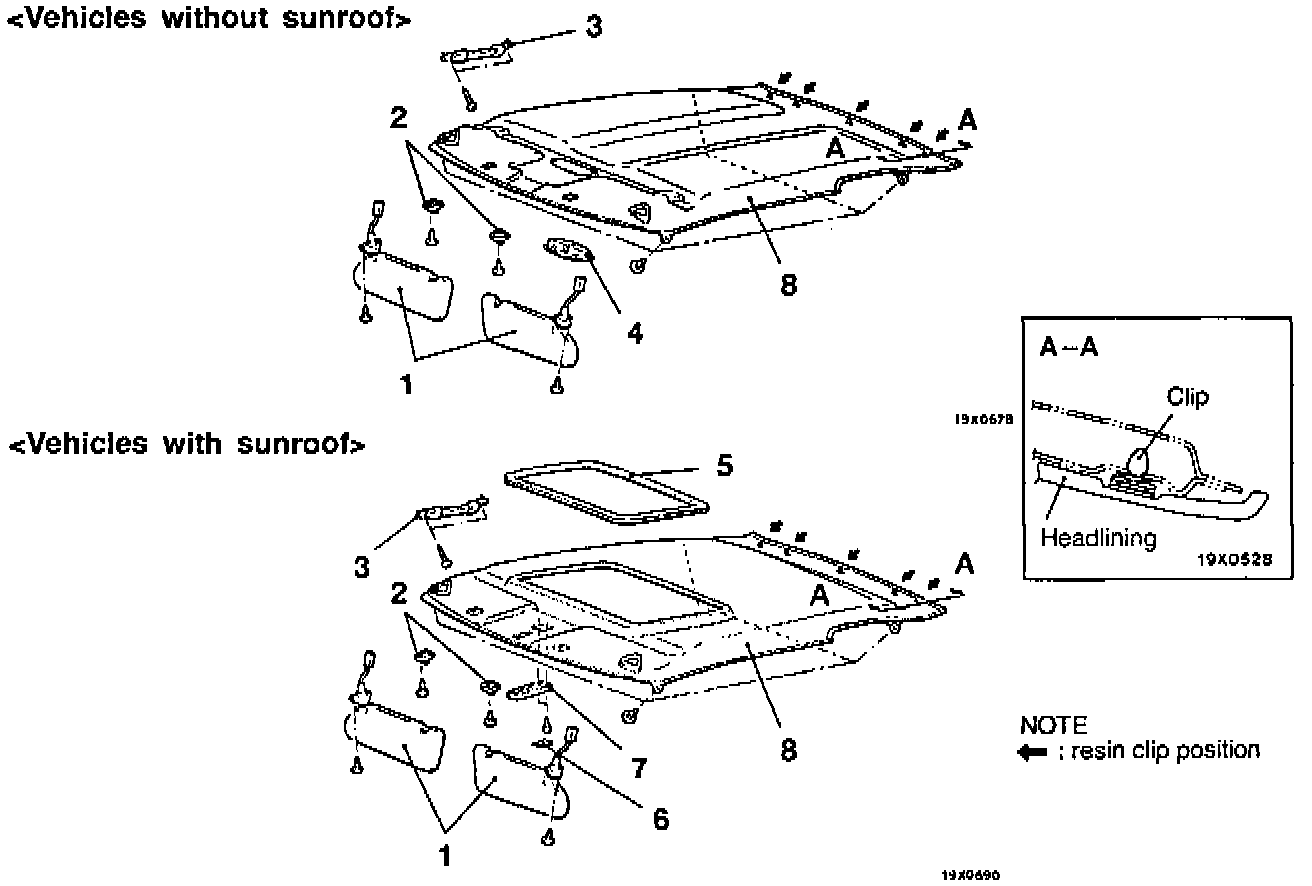

REMOVAL STEPS
1. Sunvisor assembly
2. Sunvisor holder
3. Assist grip
4. Dome light assembly
5. Sunroof inner weatherstrip
6. Sunroof switch cover
7. Sunroof switch panel
8. Headlining

REMOVAL SERVICE POINT

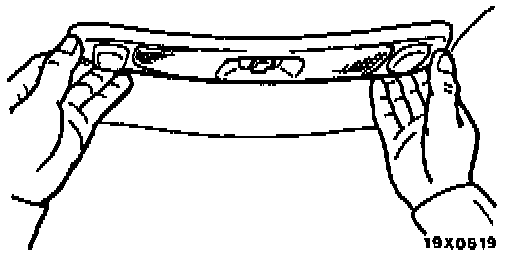

Dome Light Assembly Removal
Pull down the front portion of the light to remove it.

INSTALLATION SERVICE POINT

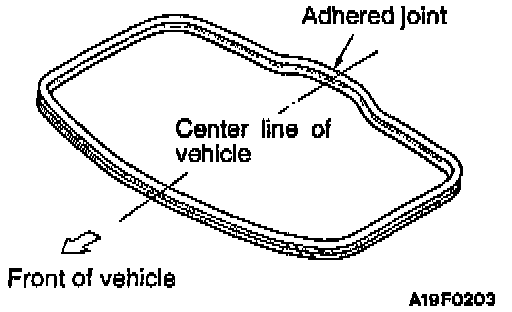

Sunroof Inner Weatherstrip Installation
Install the sunroof inner weatherstrip with its adhered joint located toward the rear of the vehicle and on its center line.
