Console: Service and Repair

CAUTION: When removing and installing the floor console assembly, do not let it bump against the SRS-ECU.

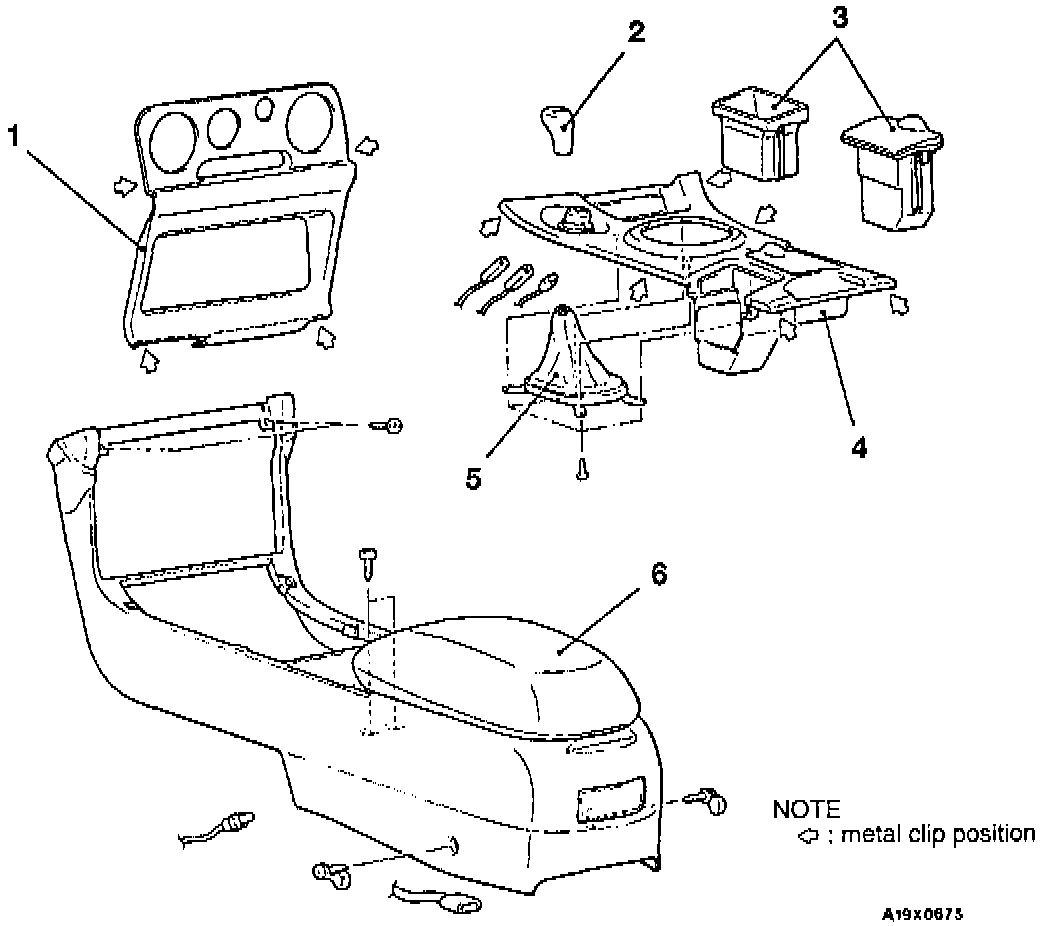

REMOVAL STEPS
1. Center console panel
2. Shift knob
3. Accessory box or ashtray
4. Floor console panel assembly
5. Shift lever cover assembly
6. Floor console assembly

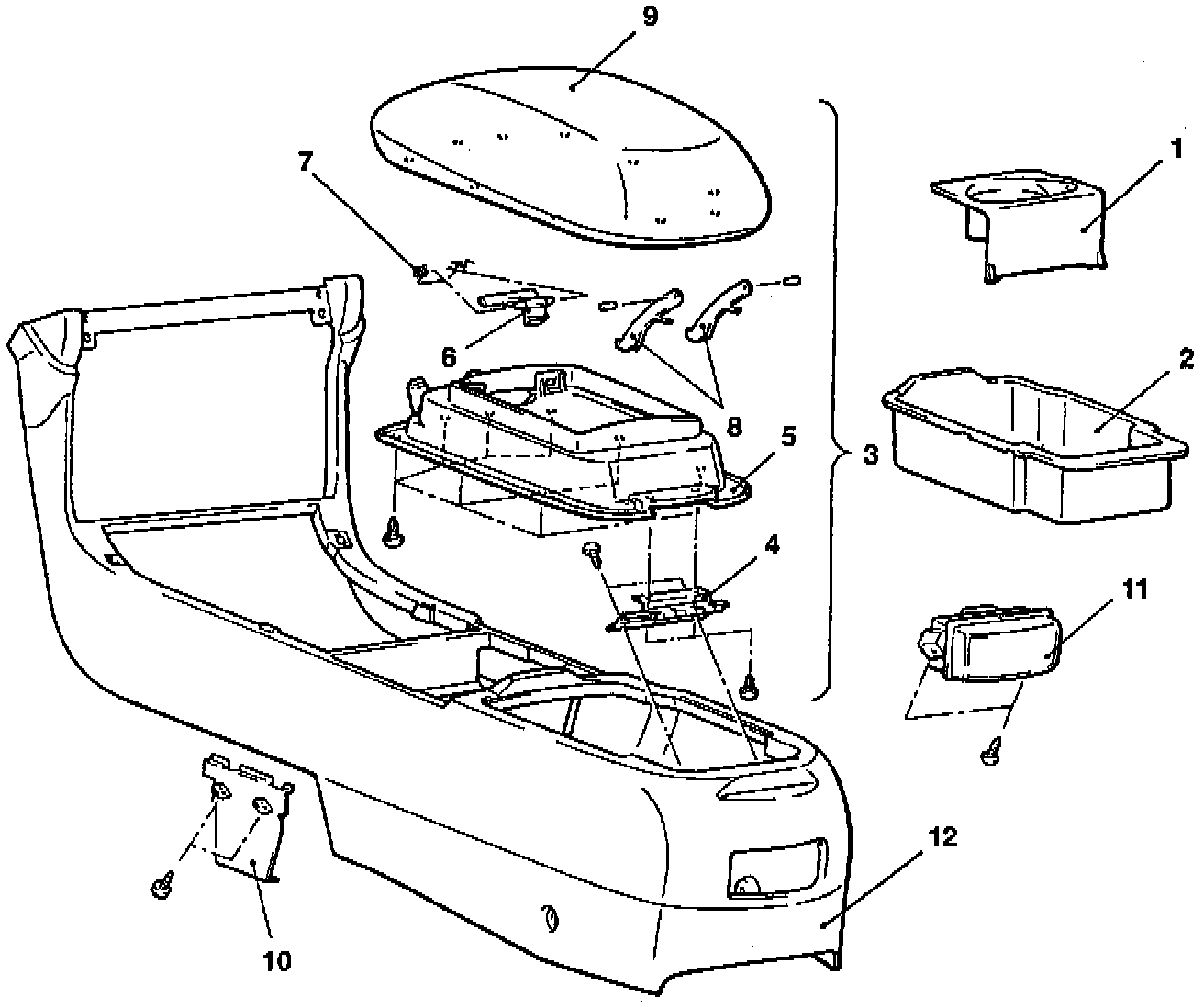

DISASSEMBLY STEPS
1. Cup holder
2. Inner box
3. Floor console lid assembly
4. Hinge assembly
5. Inner lid
6. Lock lever
7. Spring
8. Stopper
9. Floor console lid
10. Cover
11. Rear foot light
12. Floor console
