Front Door Handle: Service and Repair

PRE-REMOVAL OPERATION
^ Door Trim Removal

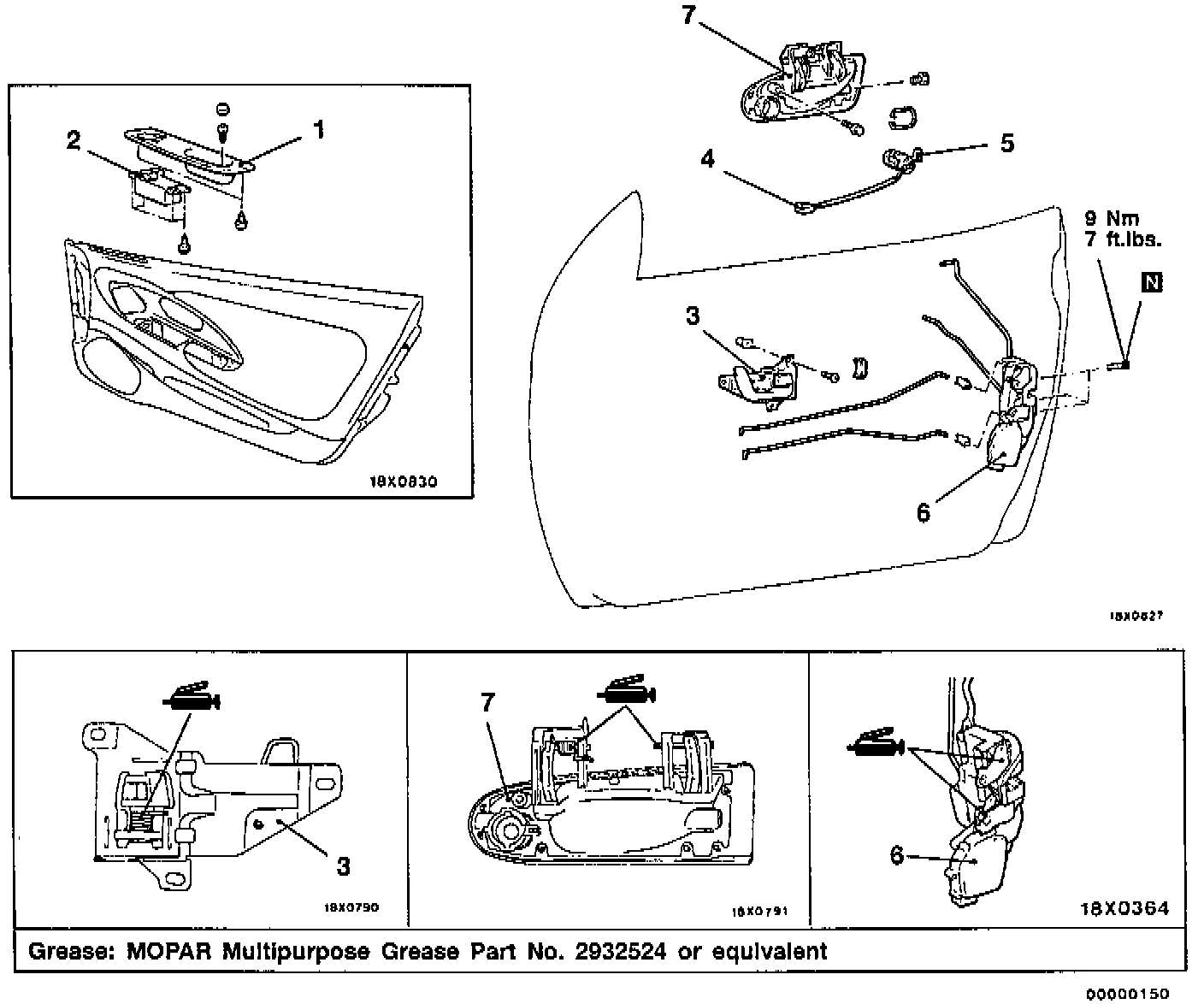

CENTRAL DOOR LOCK SWITCH REMOVAL STEPS
1. Pull handle box
2. Central door lock switch

DOOR HANDLE AND LATCH REMOVAL STEPS
3. Door inside handle
^ Waterproof film
4. Harness connector (Vehicles with central door locking system)
5. Door lock key cylinder assembly
6. Door latch assembly
7. Door outside handle

POST-INSTALLATION OPERATION
^ Inside Handle Play Adjustment
^ Door Trim Installation
^ Door Fit Adjustment
