Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Tape Player >> Testing and Inspection >> Chart C >> Chart C-9

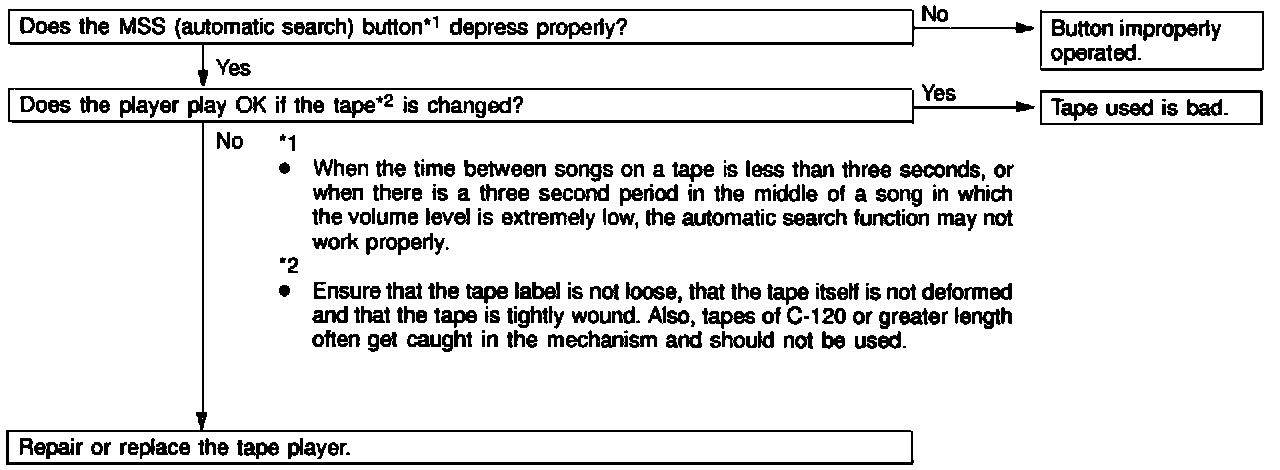

Chart C-9

Chart C 9:

Automatic search does not work.
