B Charts - Radio
>>

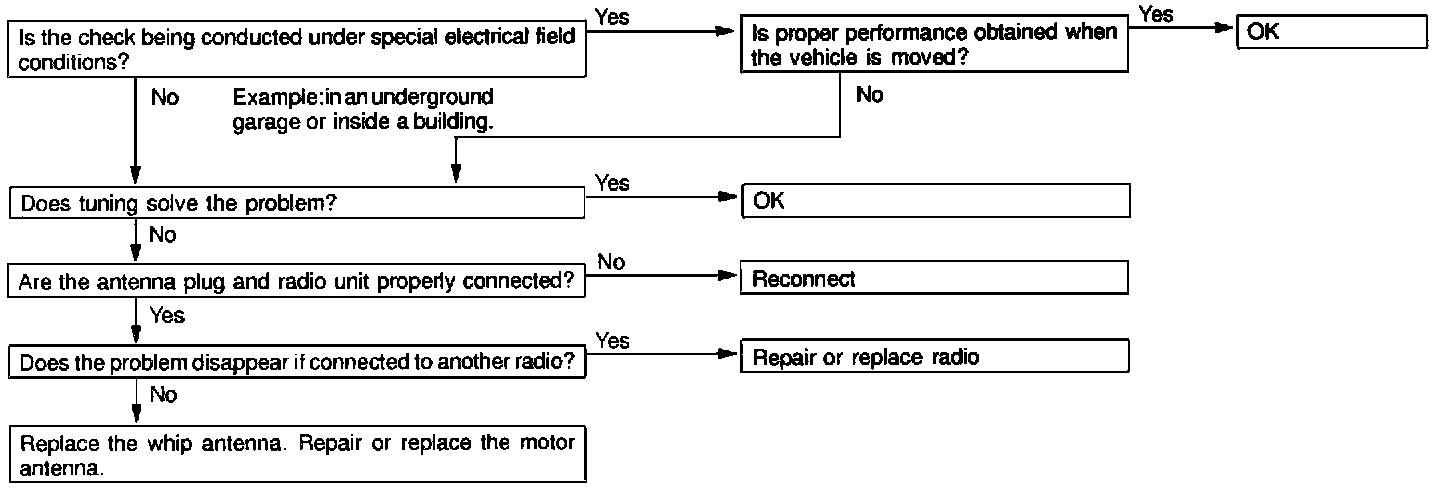

Chart B-3 Noise But No Reception For AM&FM, or No AM/FM Sound
Chart B-3 Noise But No Reception For AM&FM, or No AM/FM Sound
Chart B 3:
There is noise but no reception for both AM and FM or no sound from FM.
