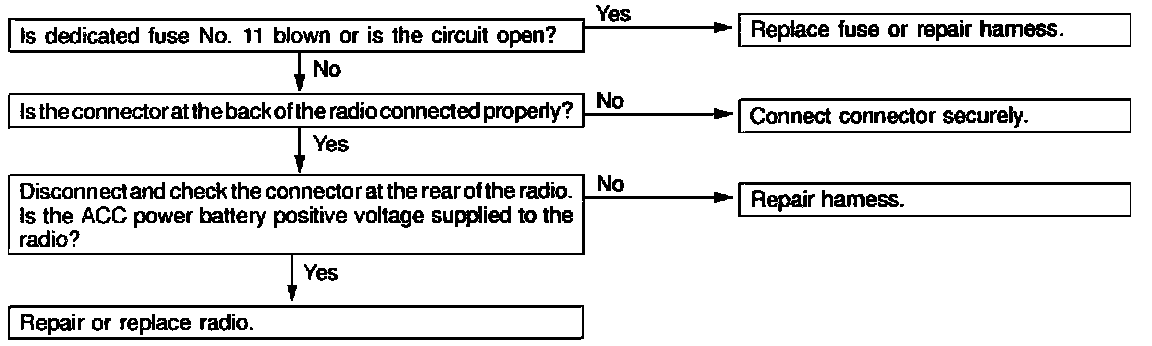

Chart B-1 No Power Is Supplied When the Switch Is Set to ON
Chart B-1 No Power Is Supplied When the Switch Is Set to ON
Chart B 1:
No power is supplied when the switch is set to ON.
