Radio/Stereo Replace

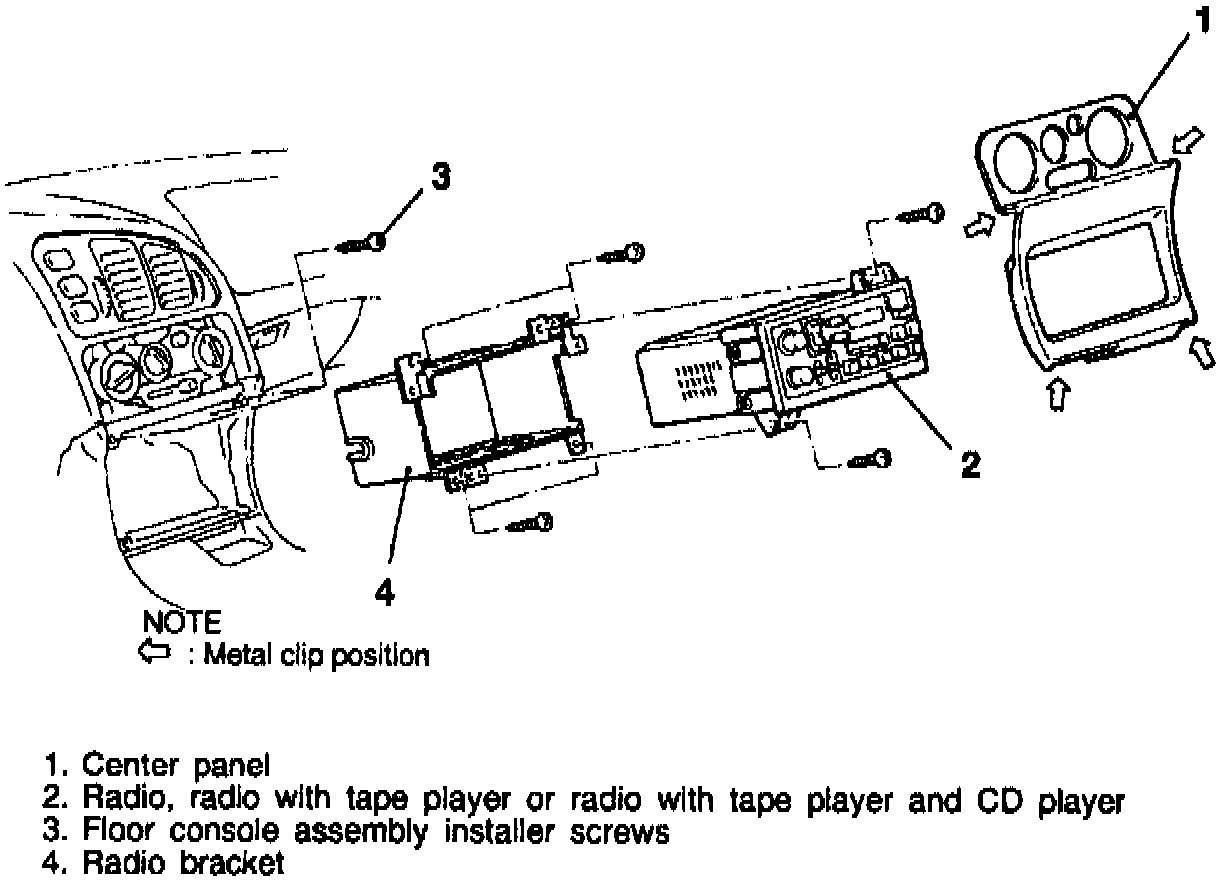

Fig. 8 Radio Removal:

1. Disconnect battery ground cable.
2. Remove instrument panel center panel.
3. Remove radio and tape player or CD player. Disconnect electrical connectors.
4. Remove floor console assembly installer screws.
5. Pull upper part of floor bracket back slightly and remove radio bracket.
6. Reverse procedure to install.
