Antenna: Service and Repair

Antenna - Removal And Installation:

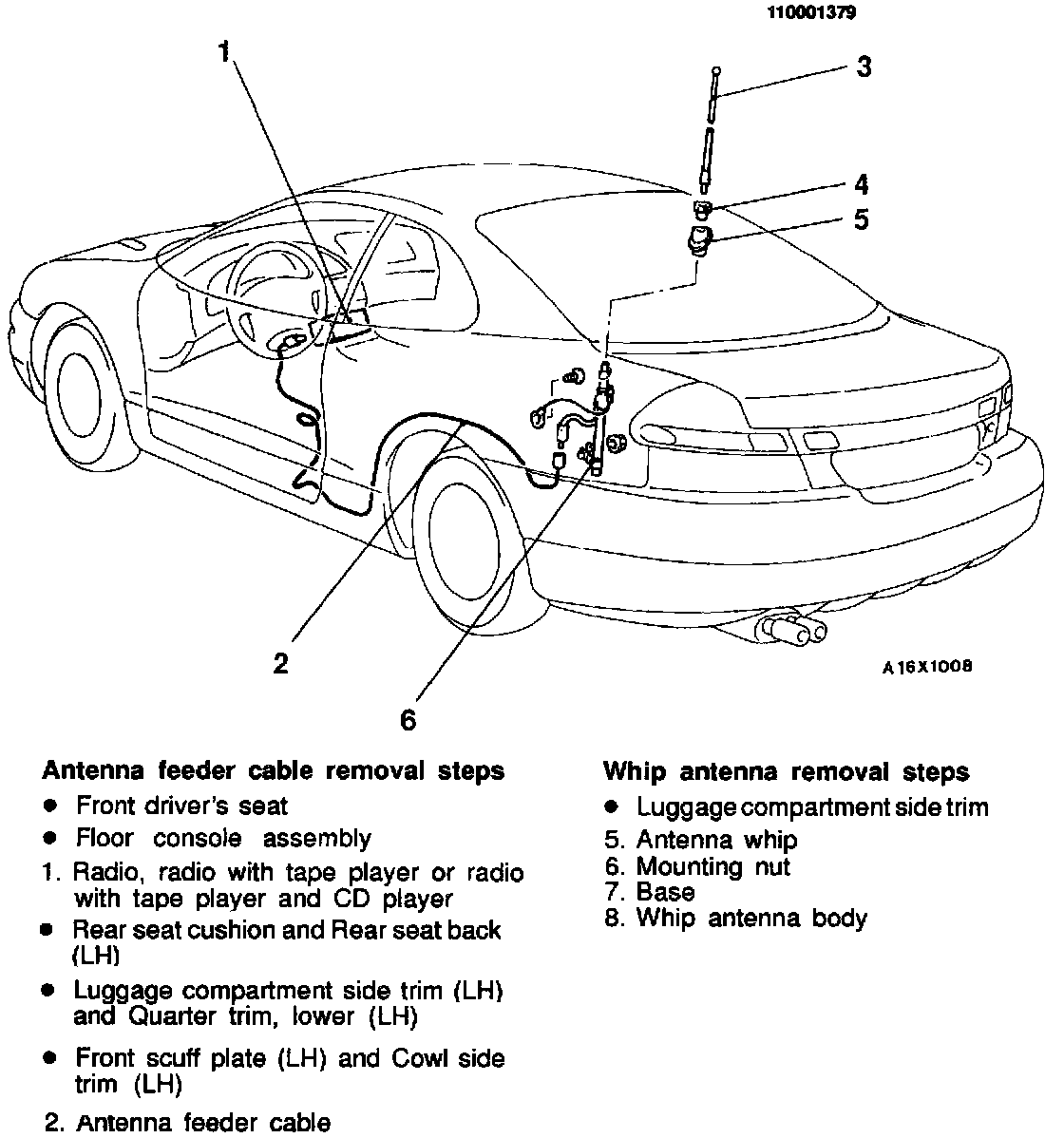

REMOVE
Antenna Feeder Cable
- Front driver's seat
- Floor console assembly
1. Radio, radio with tape player or radio with tape player and CD player
- Rear seat cushion and Rear seat back LH)
- Luggage compartment side trim (LH) and Quarter trim, lower (LH)
- Front scuff plate (LH) and Cowl side trim (LH)
2. Antenna feeder cable

Whip Antenna
- Luggage compartment side trim
5. Antenna whip
6. Mounting nut
7. Base
8. Whip antenna body

INSTALL
Antenna Feeder Cable
1. Antenna feeder cable
- Front scuff plate (LH) and Cowl side trim (LH)
- Luggage compartment side trim (LH) and Quarter trim, lower (LH)
- Rear seat cushion and Rear seat back LH)
2. Radio, radio with tape player or radio with tape player and CD player
- Floor console assembly
- Front driver's seat

Whip Antenna
5. Whip antenna body
6. Base
7. Mounting nut
8. Antenna whip
- Luggage compartment side trim
