1, 2 and 3 Digit Codes: 93

Scan Tool 93 (MIL 35):

Trouble Code Number
- Scan tool 93
- General Scan Tool P1489
- MIL 35

Fault Message
- High Speed Condenser Fan Control Relay Circuit

Background
- The high speed condenser fan relay controls the high speed operation of the condenser fan.
- One side of the relay control coil is supplied with 12 volts when the ignition switch is turned to the ON position.
- The circuit is completed when the other side of the relay coil is grounded by the PCM.
- The PCM grounds the relay control circuit depending on engine coolant temperature and/or A/C compressor condition, etc.

Range of Check
- Battery voltage: 10 V or more
- Ignition switch: ON

Set Condition
- An open or shorted condition is detected in the high speed A/C condenser fan relay control circuit for 3 seconds.

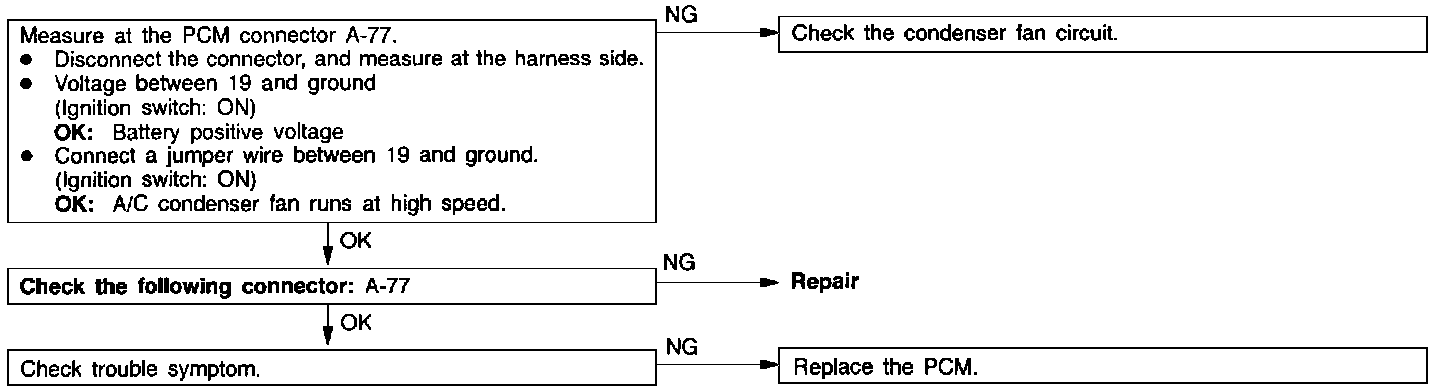

Probable Cause
- Relay coil open or shorted
- Ignition switch output circuit open
- High speed condenser fan relay control circuit open or shorted
- PCM failed
