1, 2 and 3 Digit Codes: 132

Scan Tool 132 (MIL 24):

Trouble Code Number
- Scan tool 132
- General scan tool P0121
- MIL 24

Fault Message
- Throttle Position Does Not Agree With Map

Background
- This DTC indicates a failure in the rationality check comparing MAP values to throttle position.

Range of Check
- Engine speed: less than 1, 500 r/min.
- Subtract MAP value from atmospheric pressure:
- More than 13 kPa (19 psi) [when atmospheric pressure is more than 77 kPa (11 psi)]
- More than 6 kPa (0.9 psi) [when atmospheric pressure is less than 77 kPa (11 psi)]

Set Condition
- Throttle position sensor output voltage is 3.75-4.71 V

Range of Check
- Engine speed: more than 1, 500 r/min
- Vehicle speed: more than 25 mph (40 km/h)
- Subtract MAP value from atmospheric pressure: less than 13 kPa (19 psi)

Set Condition
- Throttle position sensor output voltage is 0.16-0.70 V.

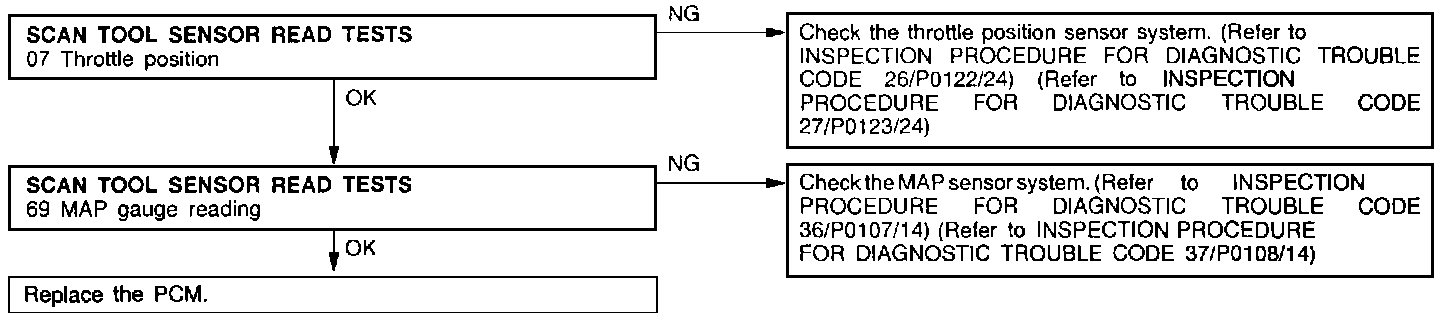

Probable Cause
- Throttle position sensor failed
- Throttle position sensor related circuit failed
- MAP sensor failed
- MAP sensor related circuit failed
