1, 2 and 3 Digit Codes: 114

Scan Tool 114 (MIL 37):

Trouble Code Number
- Scan tool 114
- General scan tool P1899
- MIL 37

Fault Message
- Park/Neutral (PNP) Switch (Transaxle Range Switch) Failure

Background
- The diagnostics for the PNP switch are divided into two categories.
- The first is trying to identify if the PNP switch is indicating park or neutral while driving.
- The second involves identifying a condition in which the vehicle is in park or neutral but the PCM indicates drive or reverse.

Range of Check 1
- Vehicle speed greater than 80 km/h (50 mph)
- Engine speed between 1,984 and 4,480 r/min
- Throttle position sensor voltage is greater than 0.49 sensor. volts above minimum throttle position
- MAP is greater than 66% of barometric pressure

Set Condition 1
- Park/Neutral switch output voltage: Low

Range of Check 2
- MFI relay ON
- Engine is cranking

Set Condition 2
- Park/Neutral switch output voltage: High

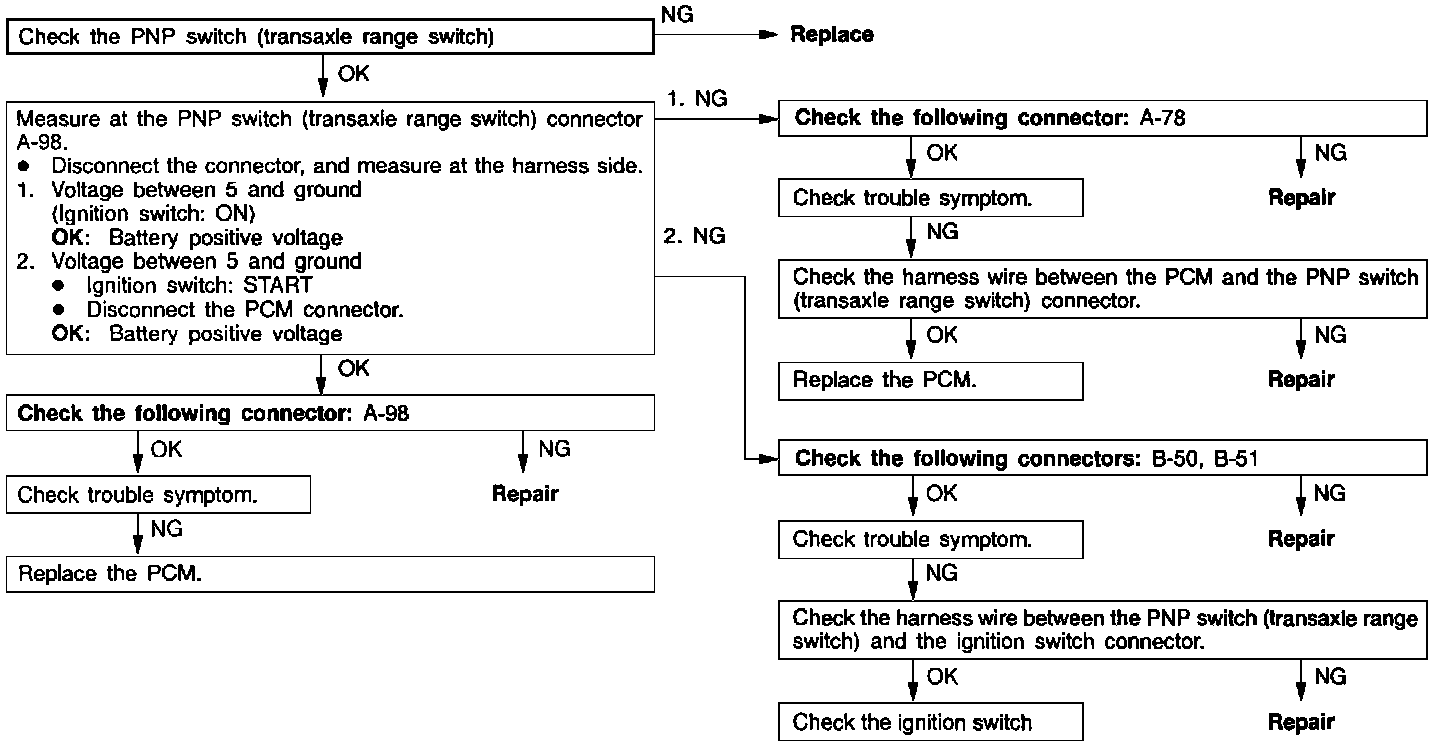

Probable Cause
- PNP switch failed
- PNP switch related circuit failed
- PCM failed
