01

Scan Tool 01 (MIL 54):

Trouble Code Number
- Scan tool 01
- General scan tool P0340
- MIL 54

Fault Message
- No Cam Signal at PCM

Background
- The PCM uses information from both the camshaft position sensor and crankshaft position sensor to determine ignition timing.
- When the camshaft position sensor signal is lost, the PCM relies on the crankshaft position sensor signal to allow engine operation.
- This could result in fuel injection being 180 out of phase, which would result in deterioration of engine performance and emissions.

Range of Check
- Ignition switch: ON
- Crankshaft position sensor signal (High or low) is input (engine cranking).

Set Condition
- Camshaft position sensor signal (High or low) isn't input for 2 seconds.

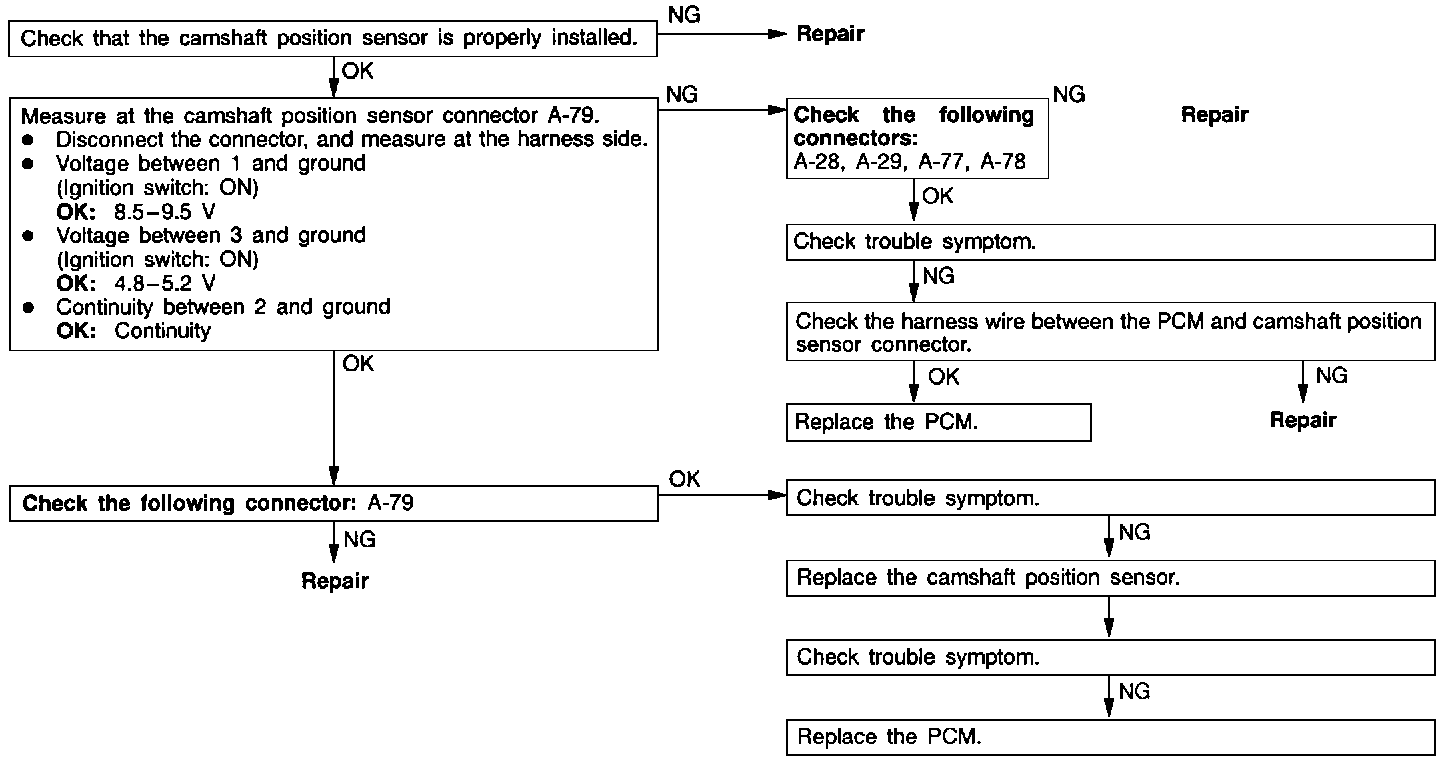

Probable Cause
- Open power supply circuit
- Open sensor ground
- Open or shorted signal circuit
- Damaged camshaft target magnet
- Sensor failed
- PCM failed
