Restraint Systems

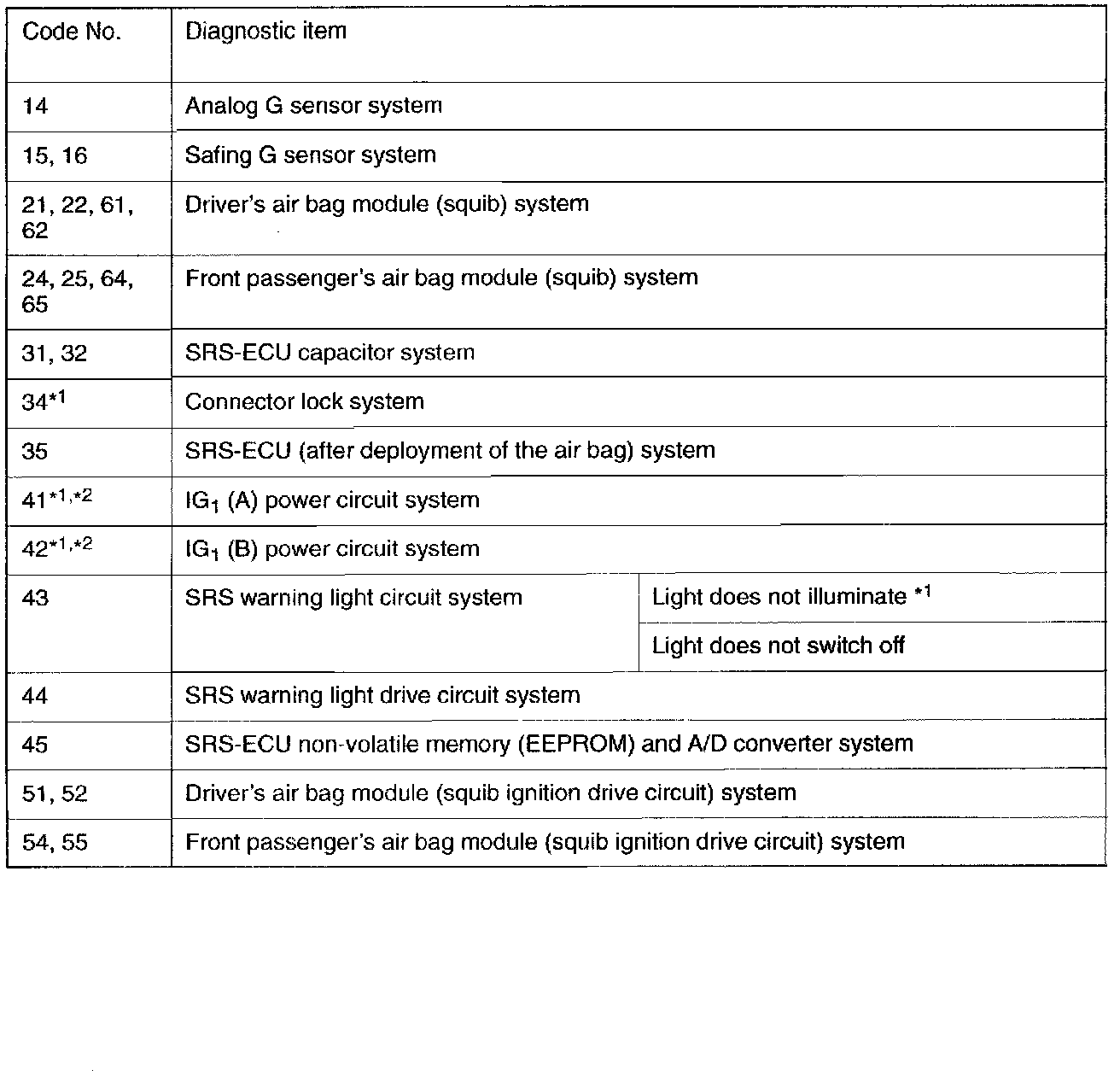

NOTE:
*1: For diagnostic trouble codes marked with 1, if the vehicle condition returns to normal, the diagnostic trouble code will be automatically erased, and the SRS warning light will return to normal.
*2: If the vehicle has a discharged battery it will store the diagnostic trouble codes 41 or 42. When these diagnostic trouble codes are displayed, check the battery.
