Inspection

INSPECTION
1. Inspect oil pump case for damage and remove rear cover.
2. Remove pump rotors and inspect case for excessive wear.

Fig. 40 Rotor End Clearance Inspection.:

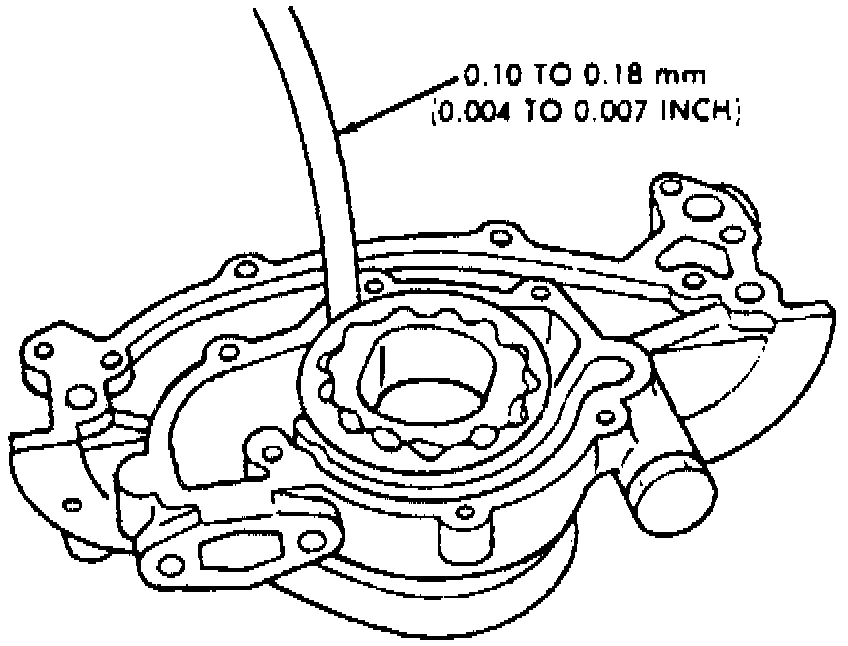

Fig. 39 Outer Rotor & Case Clearance Inspection:

3. Insert rotor into oil pump case and measure clearance.
4. Replace if out of specifications.
