Oil Pan: Service and Repair

1. Drain engine oil into a suitable container, then remove the oil pan attaching bolts and pan.
2. Clean oil pan and all gasket surfaces.
3. Reverse procedure to install, noting the following:

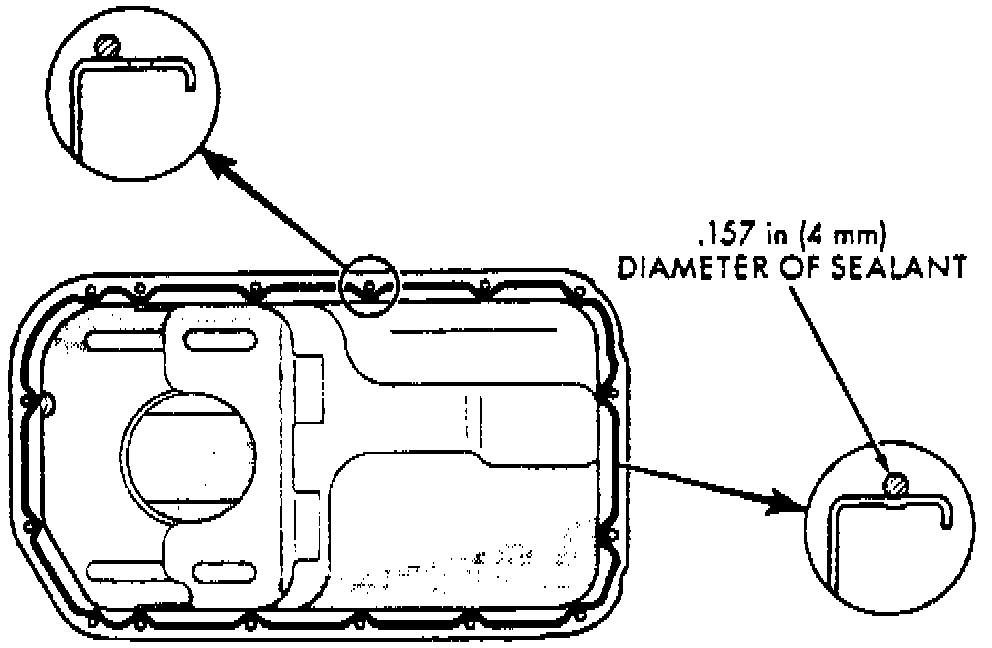

Fig. 38 Oil Pan Sealant Application.:

a. Apply Mopar silicone rubber adhesive sealant, or equivalent, as shown.
b. Tighten pan bolts to specifications.
