Left Mount

1. Support transaxle with suitable jack.

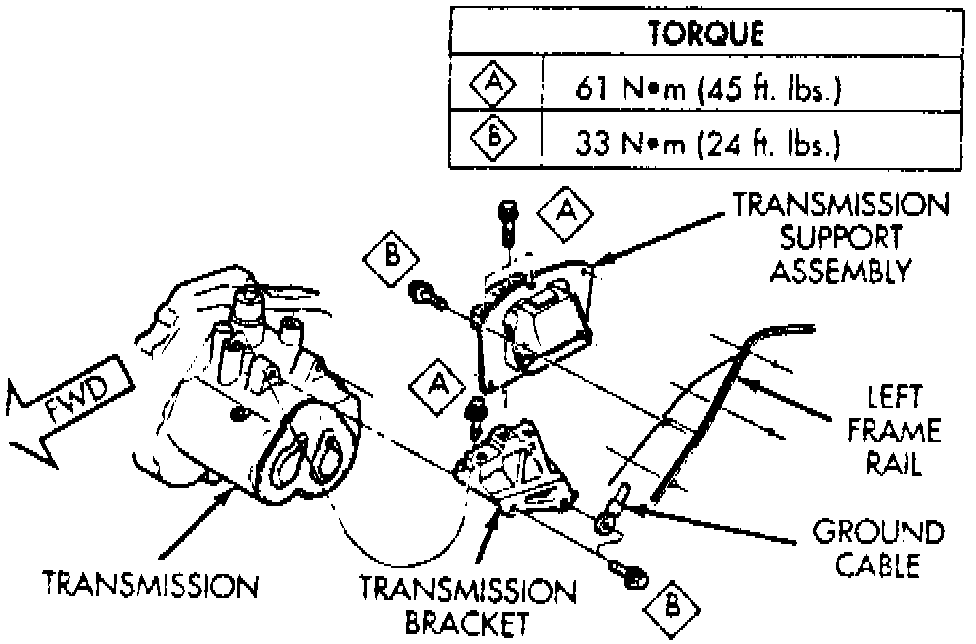

Fig. 5 Left Engine Mount Replacement.:

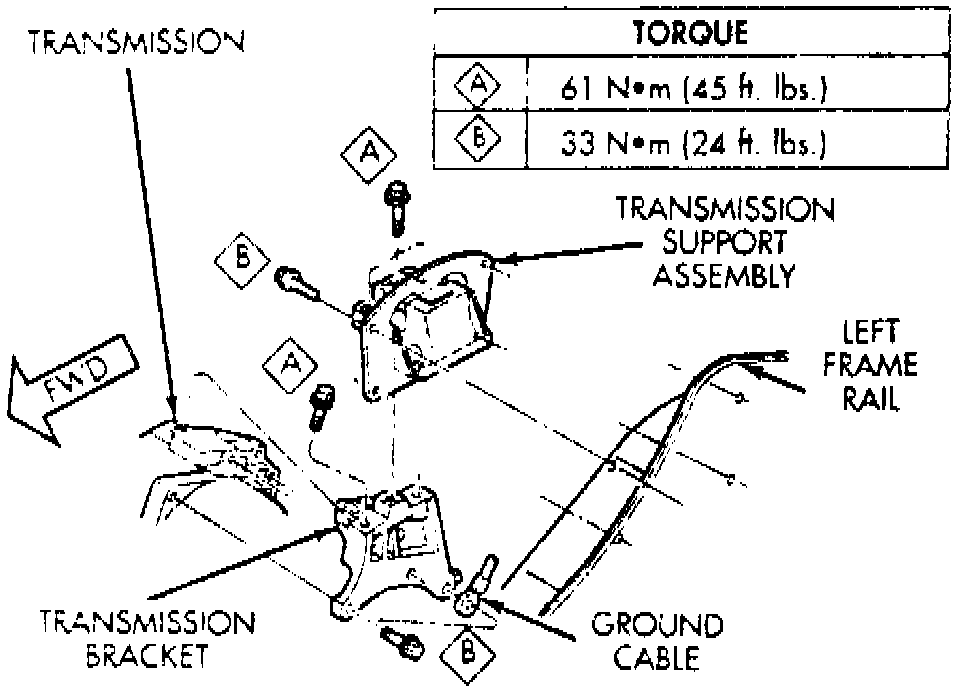

Fig. 6 Left Engine Mount Replacement.:

2. Remove three engine mount to transaxle attaching bolts.

3. Remove transaxle mount attaching bolts, then the mount.
4. Reverse procedure to install. Tighten attaching nuts and bolts to specifications shown in.
