Wiring Diagrams

Fuse 8 (PDC)
Fuse 18 (PDC)
Ignition Switch







Duty Cycle Evap/Purge Solenoid
Fuse 5 (PDC)
Fuse 9 (PDC)
Fuse 10 (PDC)
Ignition Switch
Powertrain Control Module
Vapor Canister Leak Detector







Fuel Pump Module
Fuel Pump Relay (3)
Fuse 9 (PDC)
Fuse 10 (PDC)
Ignition Switch
Powertrain Control Module







Body Control Module
Data Link Connector
Fuse 4 (PDC)
Fuse 5
Powertrain Control Module







Powertrain Control Module
Stop Lamp Switch
Transmission Control Module
Vehicle Speed Control/Horn Switch
Vehicle Speed Control Servo







Powertrain Control Module
Throttle Position Sensor







Engine Coolant Temperature Sensor
Idle Air Control Motor
Powertrain Control Module







Electronic EGR Transducer Solenoid
Intake Air Temperature Sensor
Manifold Absolute Pressure Sensor
Powertrain Control Module







Crankshaft Position Sensor
Powertrain Control Module







A/C Compressor Clutch Relay (7)
High Speed Radiator Fan Relay (12)
Low Speed Radiator Fan Relay (11)
Power Steering Pressure Switch
Powertrain Control Module







A/C Pressure Transducer
Battery Temperature Sensor
Powertrain Control Module







Automatic Shut Down Relay (10)
Fuse 1 (PDC)
Fuse 5 (PDC)

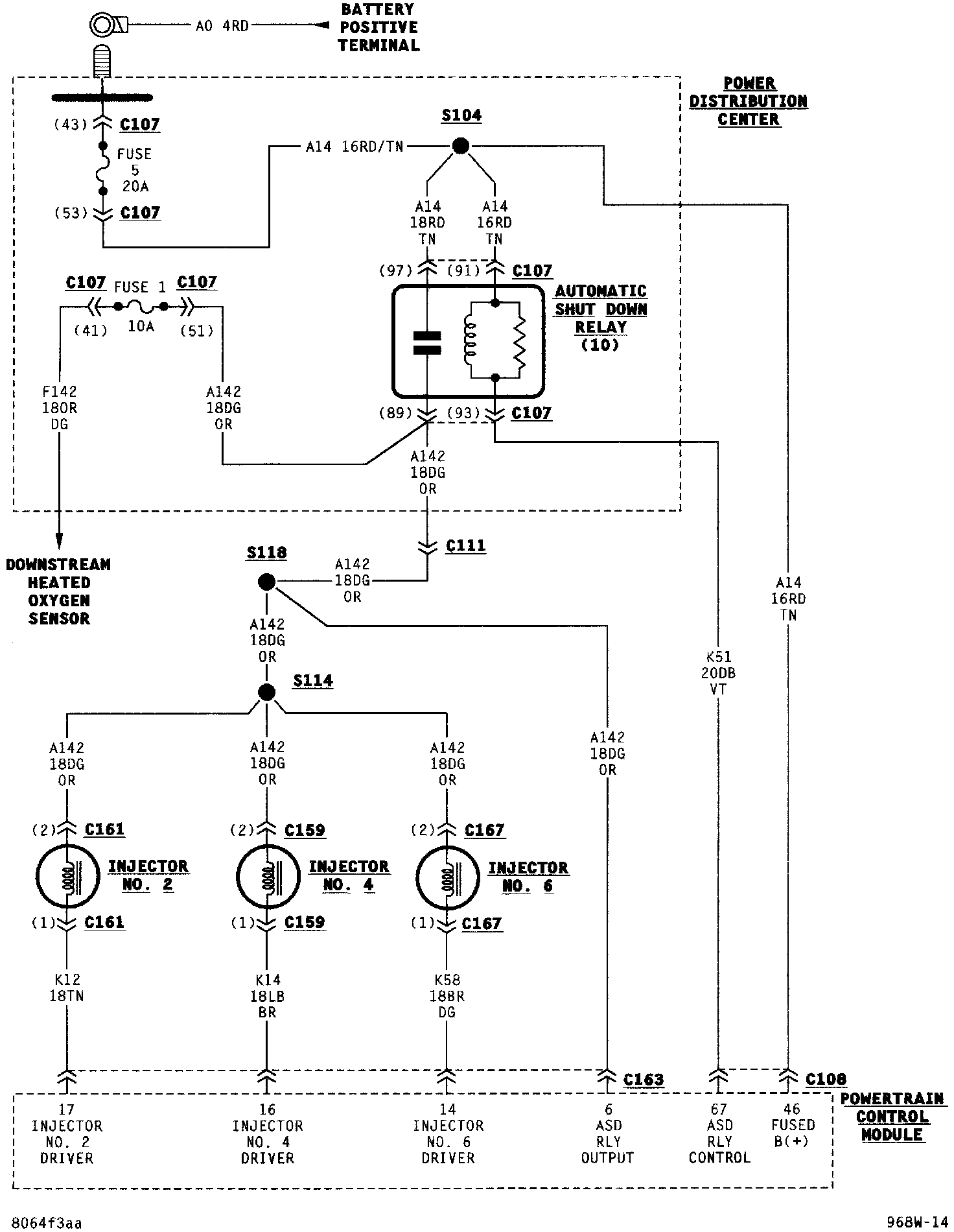

Injectors
Powertrain Control Module







Automatic Shut Down Relay (10)
Fuse 1 (PDC)
Fuse 5 (PDC)

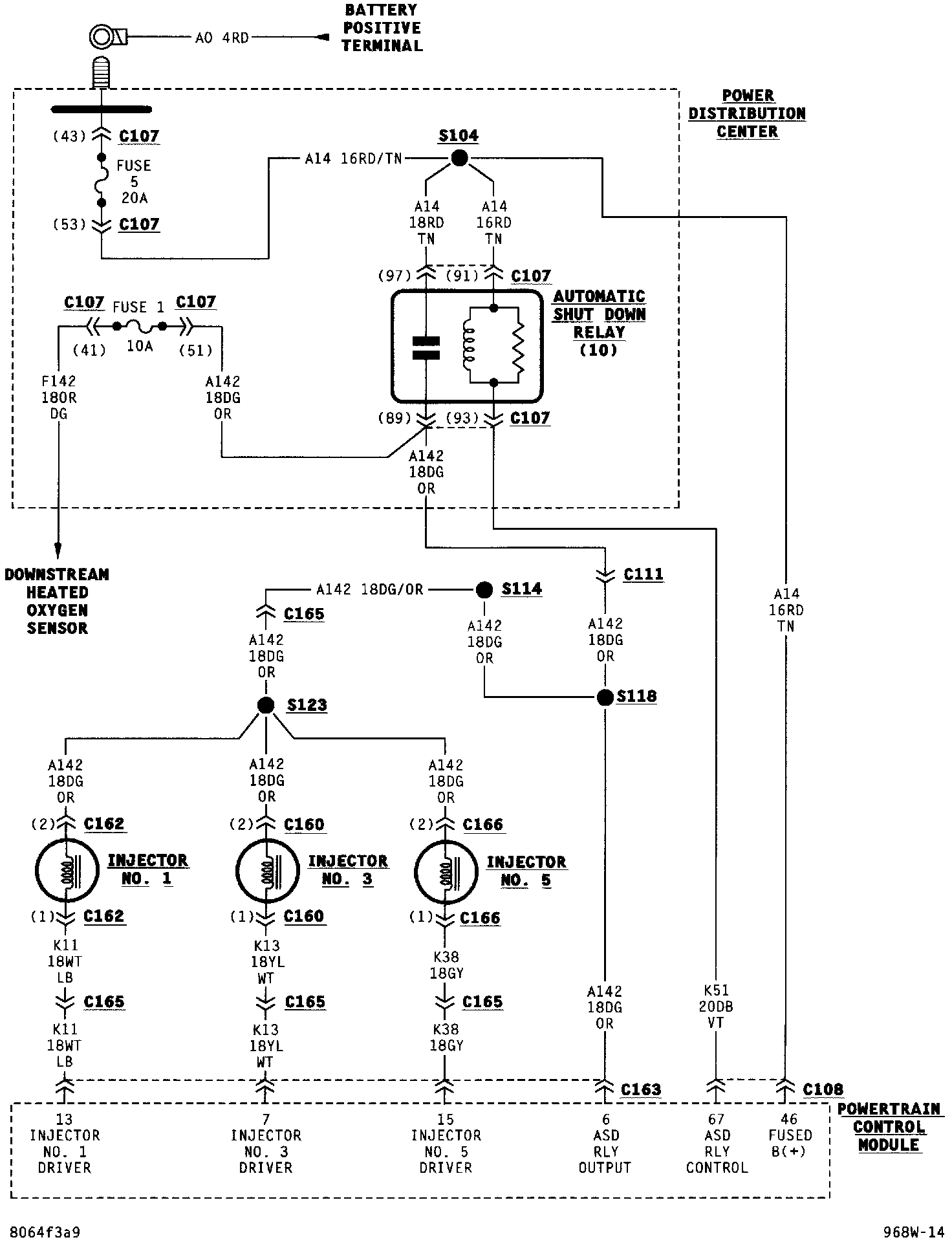

Injectors
Powertrain Control Module







Distributor
Generator
Powertrain Control Module







Left Upstream Heated Oxygen Sensor
Powertrain Control Module

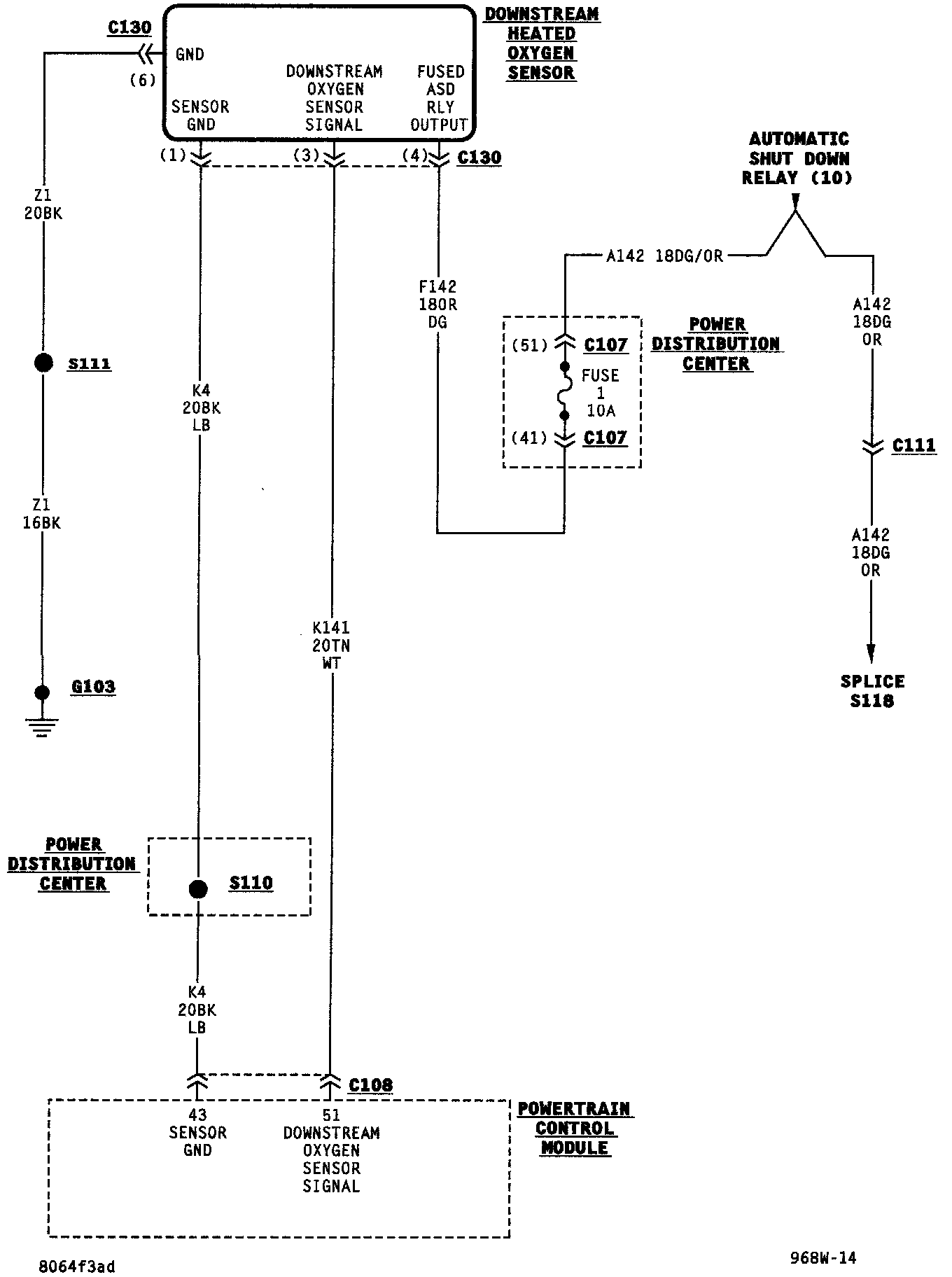

Downstream Heated Oxygen Sensor
Fuse 1 (PDC)
Powertrain Control Module




NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
