Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> Test 109A: Inoperative Wiper Wash Function >> Part 3 of 3

Part 3 of 3

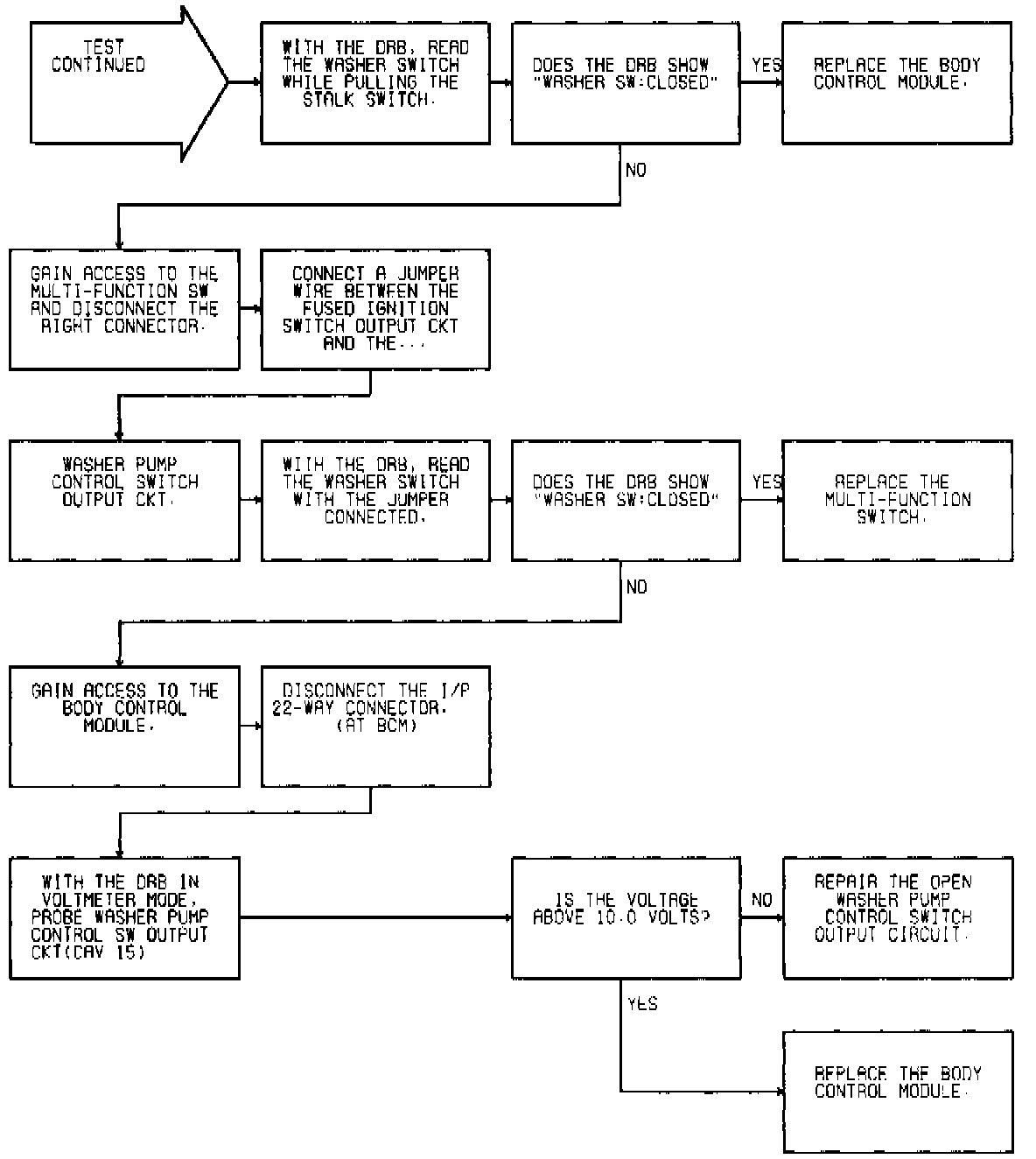

Fig.37 Inoperative Wiper Wash Function Part 3 of 3:
